20

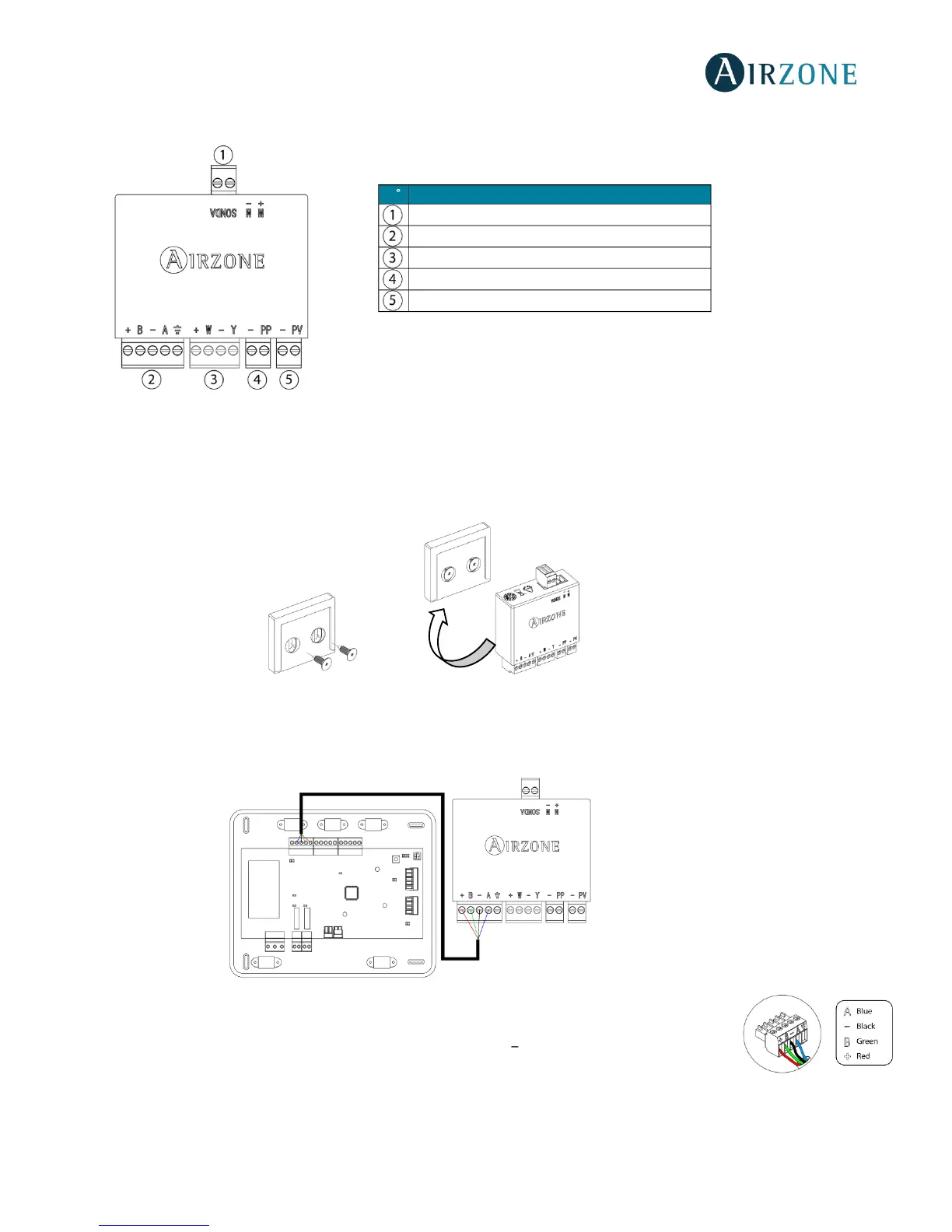

WIRED/WIRELESS ONLY RADIANT ZONE MODULE (AZVAFZMRAD [C/R])
Assembly
This module is designed to control radiant elements. It is required to have one module per radiant element of the system.
Use the guideway to fix it to the motorized element to be controlled (Fig. 15).
Fig. 15
Connection
The Only Radiant Zone Module is a device that is connected to the Airzone connection bus of the control board (Fig. 16).
It has a 5-pin terminal to connect it to the Airzone Connection Bus of the main board. Use the proper
cable: shielded twisted pair 4 wired: 2x0.22 mm
2 +
2x0.5mm
2
(AWG 20 4 wired). Attach the wires with the
terminal screws following the color code (Fig. 17).
Fig. 14
N
Meaning
Probe connector
Airzone connection bus
Thermostat connection
(Only AZVAFZMRADC)
Presence contact
Window contact
Note: Use a shielded twisted pair to connect the window contact.
Fig. 16
Fig. 17
