BACNET INTEGRATION GATEWAY (AZVAFBACNETG)

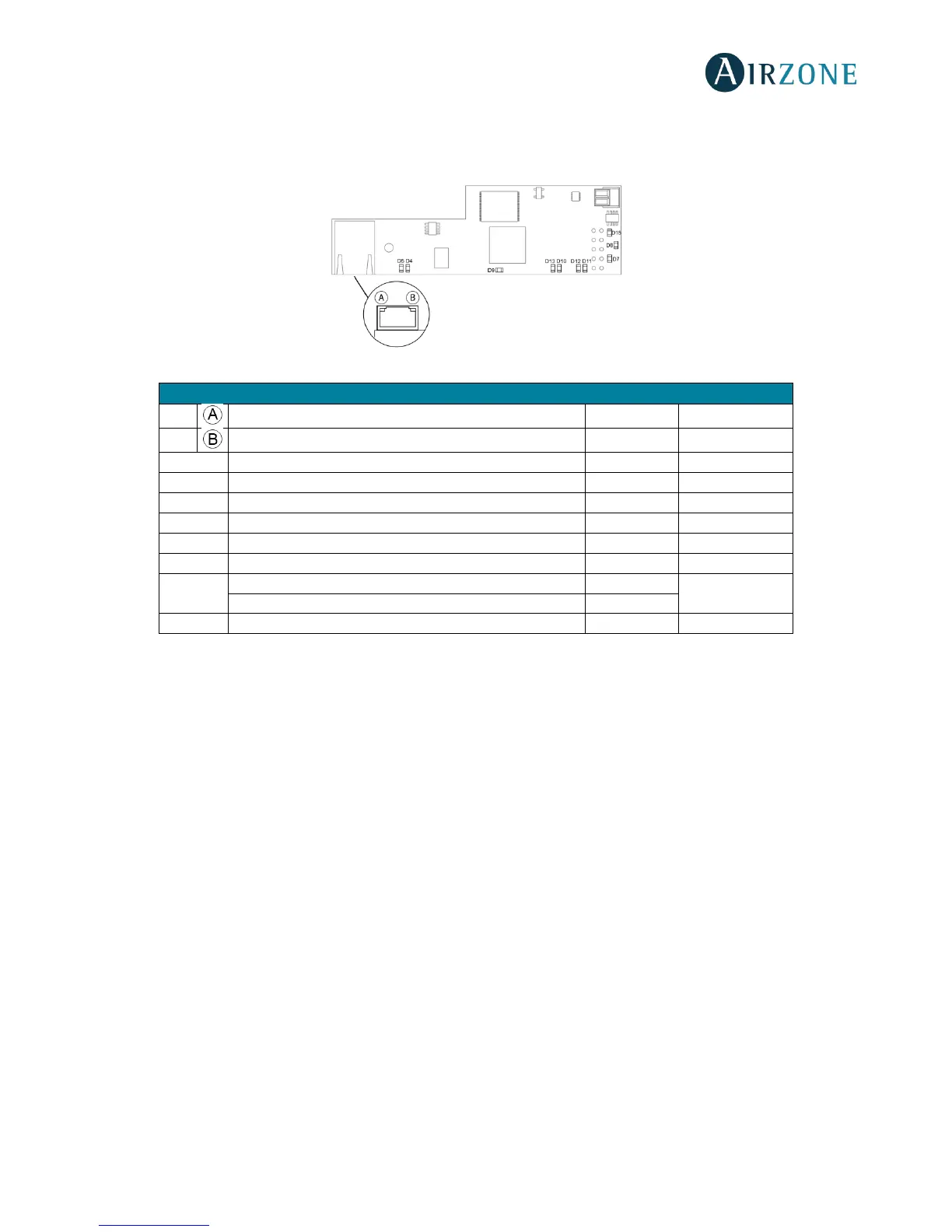

BACnet integration gateways incorporate LEDs that detect malfunctions.
Fig. 81
Meaning
D5
Ethernet connected
Blinking
Green
D4
Ethernet activity
Blinking
Yellow / Red
D7
Data transmission from automation
Blinking
Red
D8
Data reception from automation bus
Blinking
Green
D9
Microswitch performance
Blinking
Green
D10
Connected to the Internet
Blinking
Green
D11
Network data transmission
Blinking
Red
D12
Network data reception
Blinking
Green
D13
Configured as IP address through DHCP
On
Red
Configured as Fixed IP address
Off
D15
Power supply
Steady
Red
