WIRED/WIRELESS INTELLIGENT ROUND DAMPER AND WIRED/WIRELESS ONLY RADIANT ZONE MODULE
(AZVAFDAMPERXXX [C/R] AND AZVAFZMRAD [C/R])

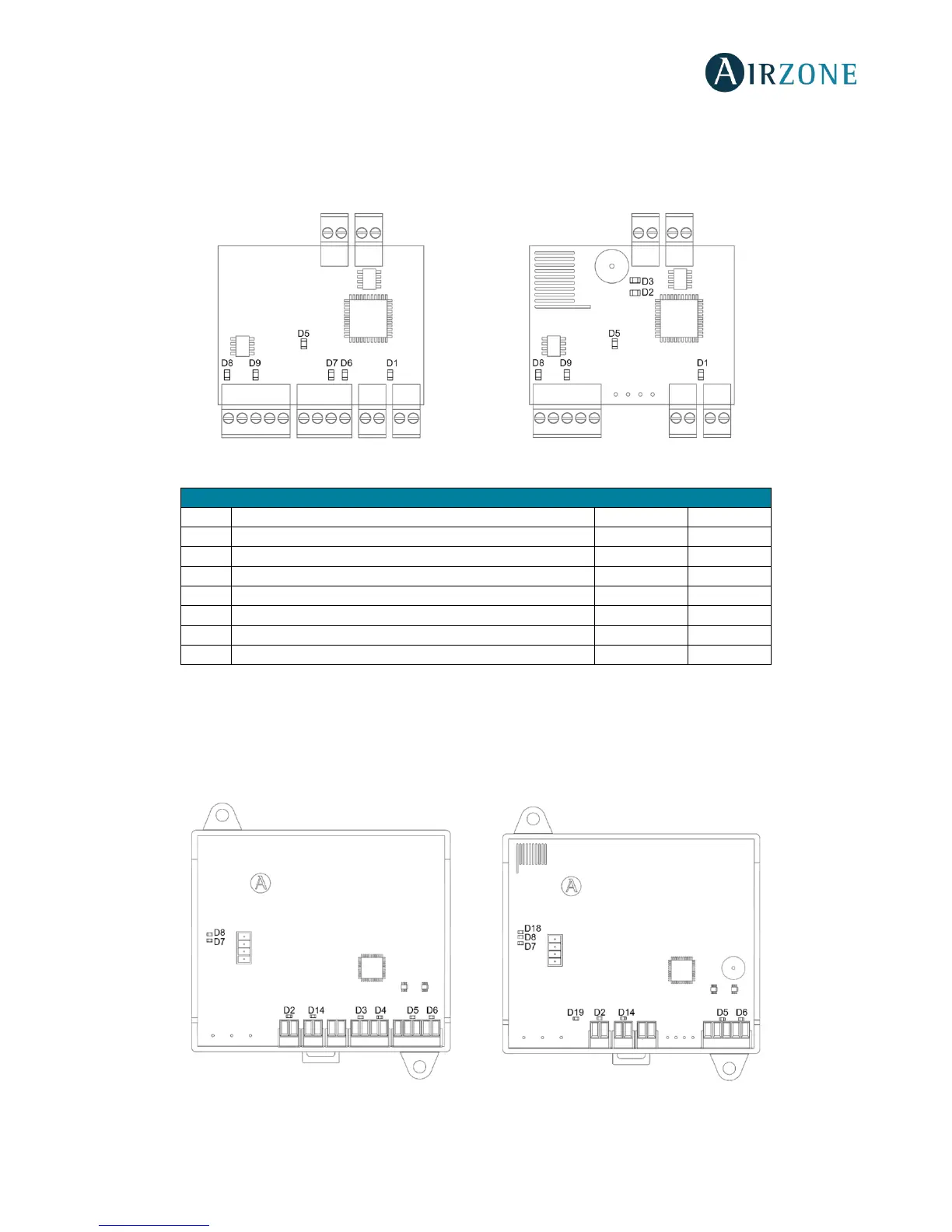

The intelligent round damper module and only radiant zone module have integrated LEDs that detect unusual operations.
Fig. 58
WIRED/WIRELESS ZONE MODULE WITH XXX COMMUNICATION (AZVAFZM XXX [C/R])
The zone modules have integrated LEDs that detect unusual operations.
Fig. 59
AZVAFDAMPERxxxC and AZVAFZMRADC AZVAFDAMPERxxxR and AZVAFZMRADR
Meaning
D1
Module operating
Blinking
Green
D2
Wireless data packets reception
Switches
Green
D3
Association channel: active
Steady
Red
D5
Power supply
Steady
Red
D6
Data reception from thermostat
Blinking
Green
D7
Data transmission from thermostat
Blinking
Red
D8
Data reception from Airzone connection bus
Blinking
Green
D9
Data transmission from Airzone connection bus
Blinking
Red
