AJA HDR Image Analyzer User Manual

HDR Image Analyzer v1.0r3 19 www.aja.com

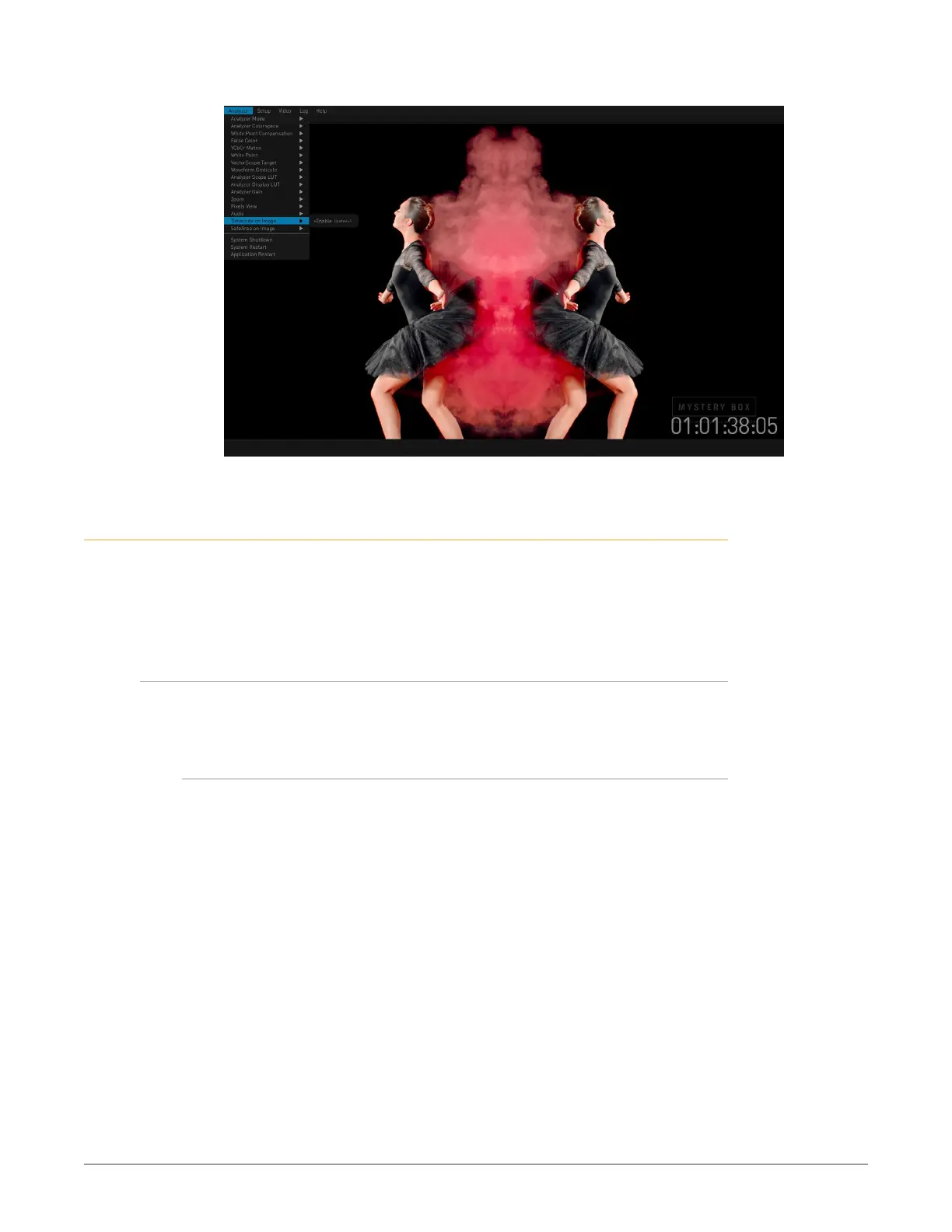

Figure 19. Timecode on Display Image
Lower Right Quadrant Displays
The lower right quadrant of the HDR Image Analyzer GUI can display audio
information, a Pixel Picker, Log data, or Incoming Video Signal Info Page.
When in a quadrant mode, Gamut information is displayed in the upper right
quadrant.
Audio Monitoring
The lower right quadrant of the HDR Image Analyzer GUI can display audio
information.
Audio Phase Meter
Analyzer supports an audio phase meter which can be configured to display
either two channel (stereo) or eight channel (surround) audio. When configured
to display two channels, channels 1-2, 3-4, 5-6, or 7-8 may be displayed. When
configured to display 8 channels, channels 1-8, or 9-16 may be displayed.
