Chapter 2 – HDR Image Analyzer Hardware
Overview
AJA's HDR Image Analyzer is a 1RU hardware appliance equipped with AJA input
and output. The system is designed for immediate use, automatically powering
up to the Colorfront Analyzer application.
Chassis Front

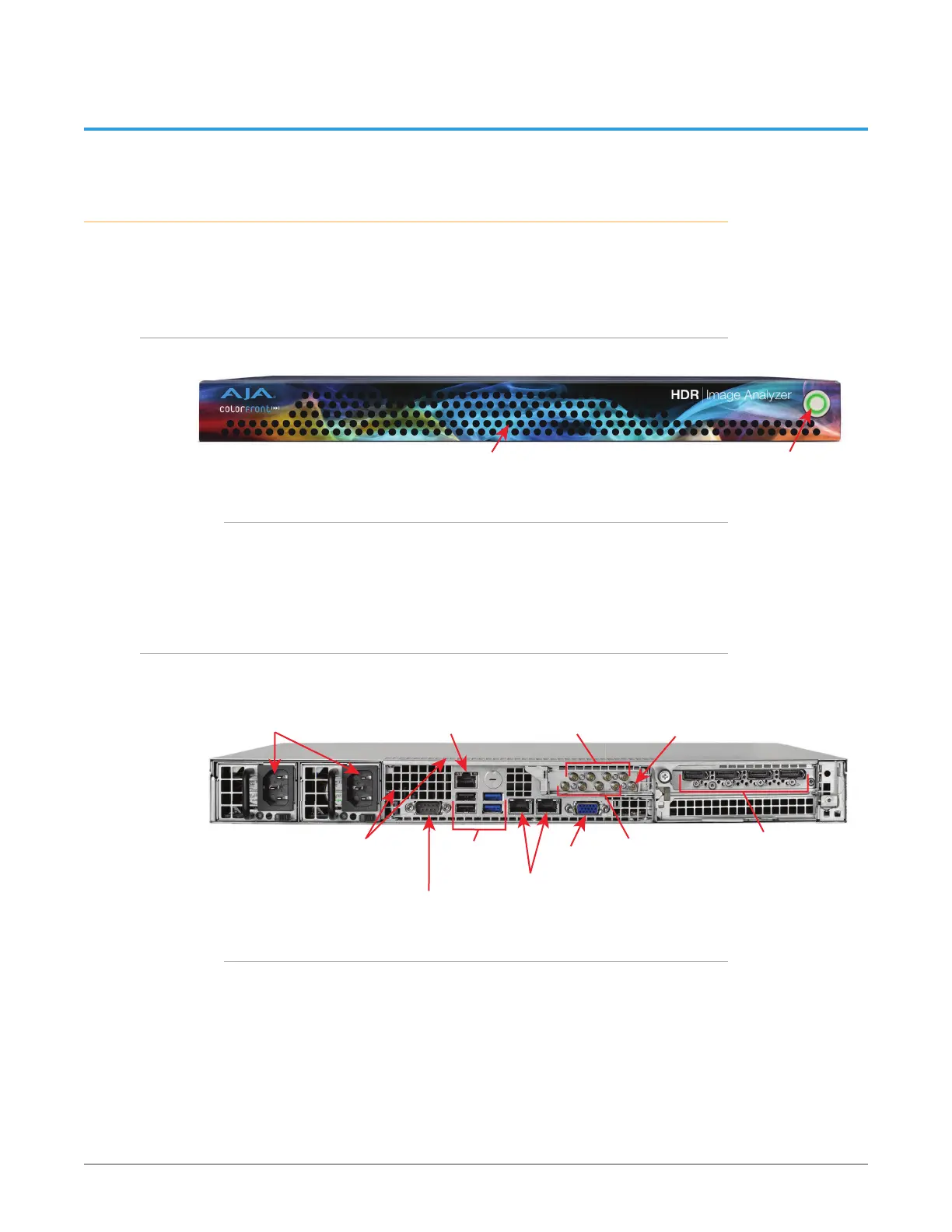

Figure 1. HDR Image Analyzer Chassis Front View
Cooling Airow Entranc
eP
ower Switch
Chassis Power Button
The main power switch is used to apply or remove power from the power supply
to the system. Turning off system power with this button removes the main
power but keeps standby power supplied to the system. Therefore, you must
unplug all system power cords before servicing.
Chassis Rear
Figure 2. HDR Image Analyzer Chassis Rear View
Cooling Airow Exit
Rear and Top Panels
USB 3.0
Ports (4)
SDI Reference
1.0/2.3 DIN BNC
Input (R)
SDI Output
1.0/2.3 DIN
BNCs (#5-#8)
SDI Input
1.0/2.3 DIN
BNCs (#1-#4)
DisplayPort
Connectors (4)
Unused
Unused
Reserved
for IPMI
Active RJ-45
Ethernet (2)
Redundant
AC Power Supplies
Rear Panel Power Supply LEDs
On the rear of each power supply module an LED indicates its status as follows.
• Solid Green: When illuminated, indicates that the power supply is on.
• Solid Amber: When illuminated, indicates the power supply is plugged in and
turned o, or the system is o but in an abnormal state.
• Blinking Amber: When blinking, this system power supply temperature has
reached 63°C. The system will automatically power-down when the power
supply temperature reaches 70°C and restarts when the power supply
temperature goes below 60°C.
