Pixel Picker
The Pixel Picker is always active. With a left click of the mouse you can pick any
pixel on the image (Full Screen or Lower Left Quadrant.) Pressing F6 activates the
Lower Right mode, providing an extra precision view with per-pixel granularity.

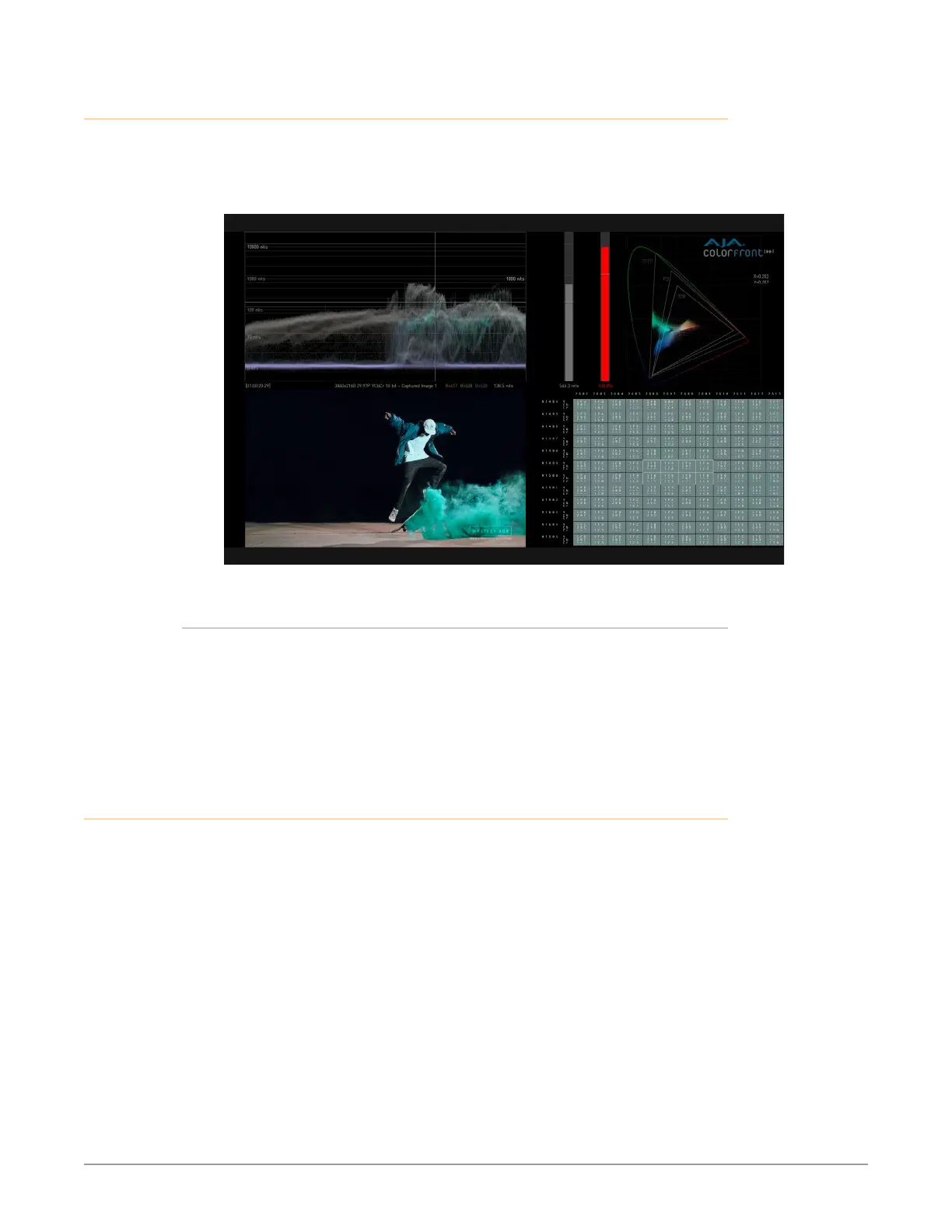

Figure 29. Pixel Picker
Pixel Picker Modes
From the menu the operator can choose how to inspect the pixel color values.
The options are:
Hexadecimal mode - Displays the hex code values of the pixels.
Decimal mode - Displays the decimal code values of the pixels.
Nit value mode - Displays the pixel brightness in Nit level.
Single Line Mode
Single Line Mode limits the analysis to a single horizontal line of video. This mode
can be used by a QC operator to verify blanking.
