Logging
Analyzer detects the events below and logs them with time stamps in a log file
and on screen:
• Gamut violations of the current colorspace.
• For HDR, P3 Gamut violation if HDR Colorspace is set to Rec2020.
• For HDR, Brightness violation. Max brightness for HDR is congured in the
Settings > QC tab.
• Time Code break

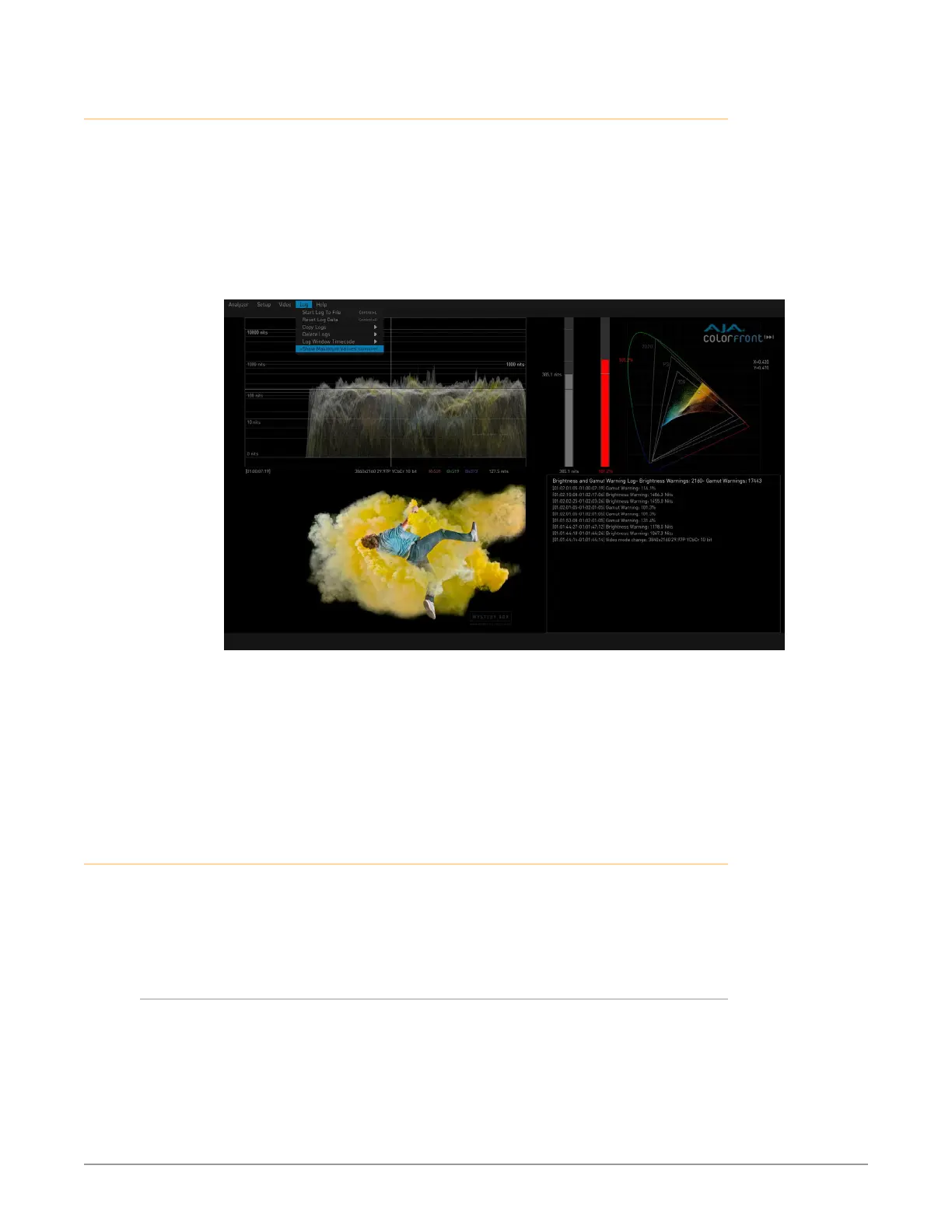

Figure 33. Logging with Show Maximum Values Selected.
A new log file can be created by starting a QC session from the Log drop-down
menu:
• Start Log to File (CTRL+l)
• Clear Log Data (CTRL+d)
You can also select the timecode or session clock to be used in the log:
• Log Window Timecode
Settings Screen
Advanced features are available on the Settings screen, allowing customization of
the HDR Image Analyzer GUI for special purposes. The Settings screen is accessed
by pressing the TAB key when the top menu line is not displayed. Click on the
desired tab to display the available parameters.
QC Tab
These advanced settings are for experienced colorists and QC professionals,
permitting customization of the values used for analysis.
The QC parameters are saved in Setups. If you Reset a Setup, all values in QC are
returned to Defaults.
