Video Menu
The top menu bar Video drop-down menu is used to define the characteristics of
the video signal being analyzed, and can be used to capture and recall still video
images for detailed analysis.

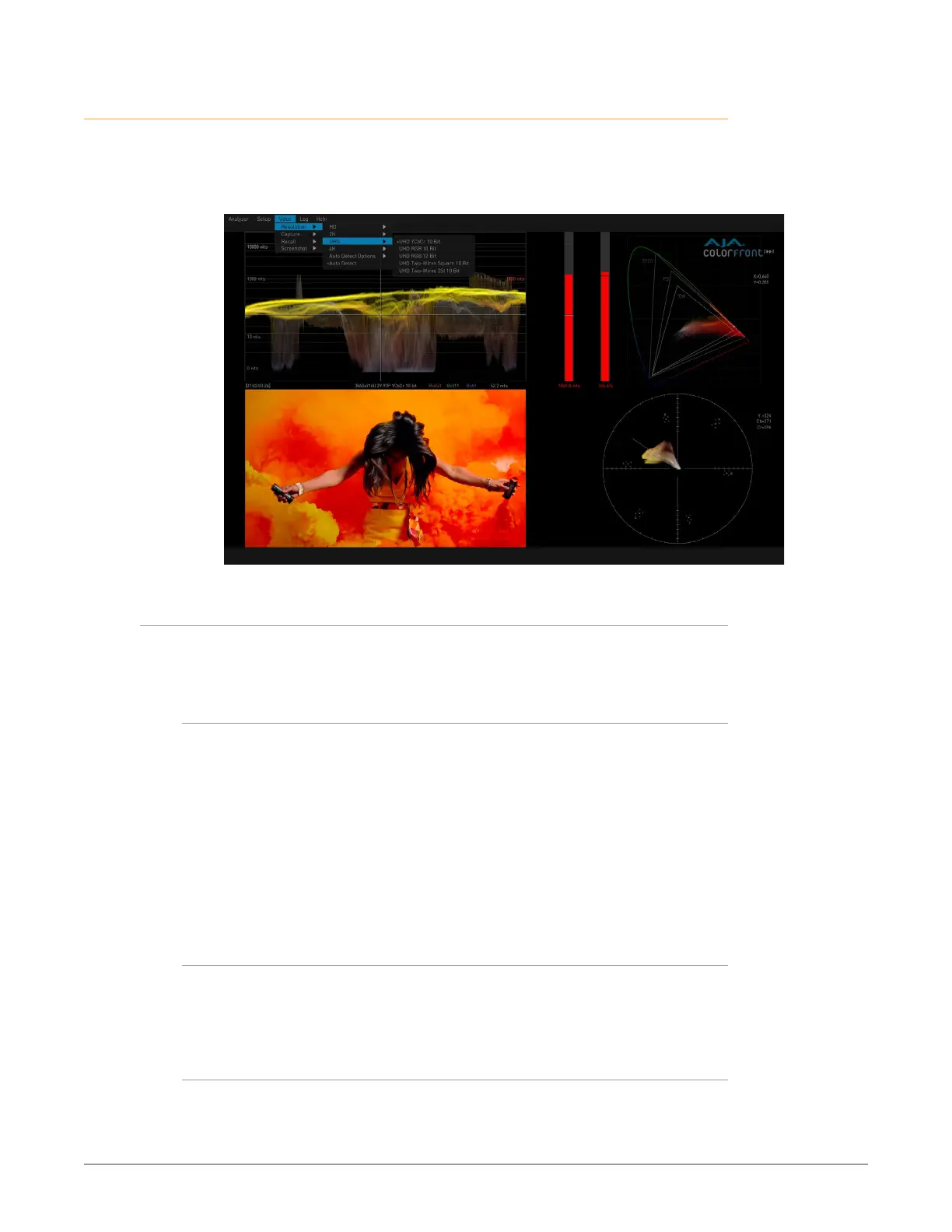

Figure 26. Video Menu
Resolution
Drop-down menus permit selecting HD, 2K, UltraHD, or 4K resolution and related
settings to manually match the incoming video being analyzed.
Auto Detect Options
The Auto Detect Options setting is used to make the HDR Image Analyzer
automatically select the number of incoming video signals to be used, depending
on the detected video, or to force the use of only the first BNC input connector, or
force the use of all four input connectors. The auto detection is based on the VPID
video payload identifier (SMPTE 352M).
Auto Mode - HDR Image Analyzer automatically detects incoming video and uses
either one link, or four links as appropriate.
Forced 1x SDI Connection Mode - Forces use of only BNC input connector one.
Forced 4x SDI Connection Mode - Forces use of all four input BNC connectors.
Auto Detect
The incoming video is examined and matching settings are applied. The Auto
Detect Options above can be used to force single or four link connection mode.
The auto detection is based on the VPID video payload identifier (SMPTE 352M).
2SI LFR and HFR Input
For LFR (Low Frame Rate) 2SI video the Analyzer only uses SDI input 1 and 2 (four
wire LFR 2SI is not supported at this time).
For HFR (High Frame Rate) 2SI video all 4 SDI inputs are used.
