Installation 11 (38)
Installation Manual T-Rx 1000/1500 FSK12 FSK12 Version: B4 Document-ID: 945814-000 Author: SH
7 Installation
The installation shall be carried out by qualied personal.
Ensure compliance to national and vehicle/machine depending installation regulations.
Over current protection for the receiver power supply and interface circuit is not provided with
this enclosure. Over current protection must be provided as part of the installation.
7.1 Receiver installation
The receiver shall be installed on a at surface or similar construction. Make sure that the struc-
ture may support the load of the receiver.
If possible the cable entry of the interface connector should be mounted pointing downwards.
Mount the receiver using the mounting slots on each receiver end block as shown in Figure 1
below.
Fasten the receiver with four M5 screws. Fasten the screws with a torque of 2 Nm.

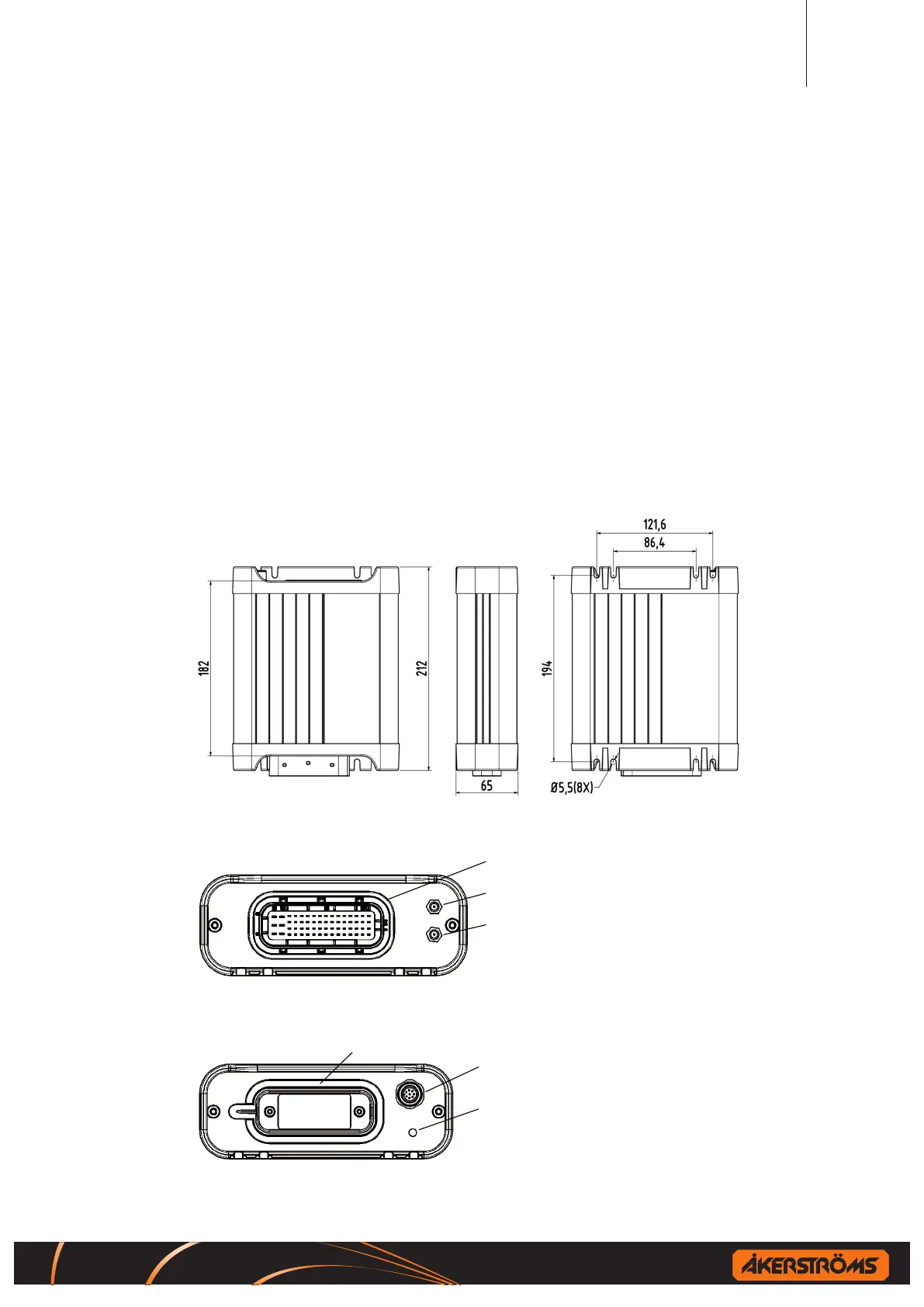

Figure 1. Receiver mounting dimension
Interface connector
Antenna 1
Antenna 2 (option)
Figure 2. Receiver front side
Maintenance hatch
Cable control (option)
Status indicator
Figure 3. Receiver back side
