Interface connector assembly 30 (38)
Installation Manual T-Rx 1000/1500 FSK12 FSK12 Version: B4 Document-ID: 945814-000 Author: SH
15.2.2 Contact system
The following two Contact systems are used for the receptacle housing described in this speci-
cation:
AMP MCP2.8™
AMP MCP1.5K™
Both contact systems have to be used with single wire seal (SWS).
Closer information on the contact systems is to be taken from the valid customers drawings,
from product and application specications.
AMP MCP2.8:
AMP customer drawing: 1355036
AMP product specication: 108 18513 1
AMP application specication: 114 18148
AMP MCP1.5K:
AMP customer drawing: 1241436
AMP product specication: 108 18716
AMP application specication: 114 18386
15.3 APPLICATION DESCRIPTION
15.3.1 Receptacle connector
15.3.1.1 Delivery condition

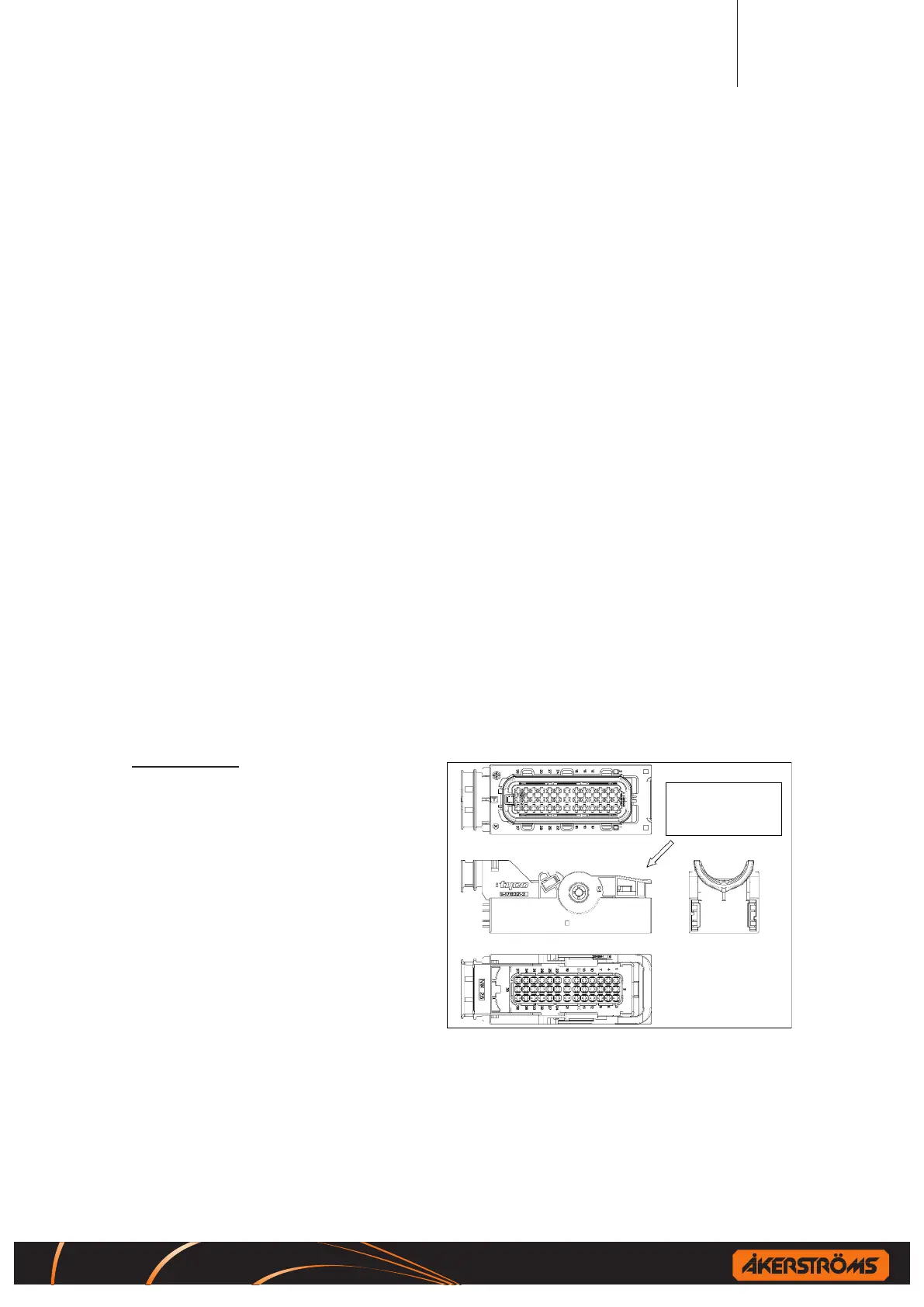

The delivery condition of the receptacle housing is shown in Figure 15.
ATTENTION:
The lever is in nal locked position,
which has to be closed in any other process
than mating.
Delivery condition:
lever closed (final locked
position)
Figure 15. Connector delivery conditions
