Installation Manual T-Rx 1000/1500 FSK12 FSK12 Version: B4 Document-ID: 945814-000 Author: SH
16 Derating
The maximum possible total output current of the T-Rx 1500 receiver is more than 50 A. As the
internal switch losses in the receiver generates heat the maximum output current can not be used
over the whole specied temperature range.
16.1 Convection cooling
If a T-Rx 1500 receiver is located in free, quasi-stationary air (convection cooling) the maxi-
mum allowed output current must be reduced according to Figure 25.
0
5
10
15
20
25
30
35
-25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70
Allowed total output A
Ambient temperature °C

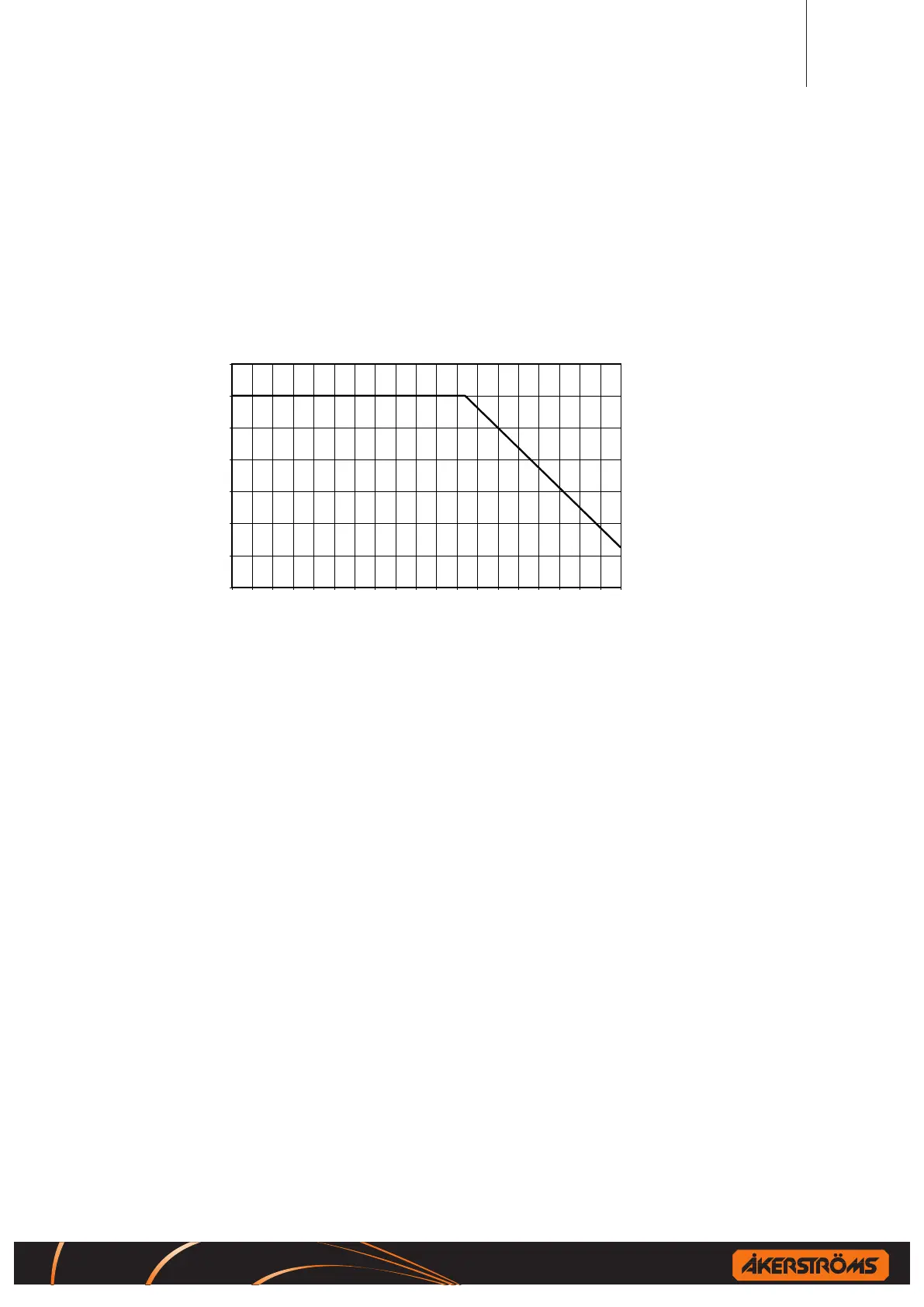

Figure 25. Convection cooling. Max. allowed output current versus ambient temperature
