Receiver overview 9 (38)
Installation Manual T-Rx 1000/1500 FSK12 FSK12 Version: B4 Document-ID: 945814-000 Author: SH

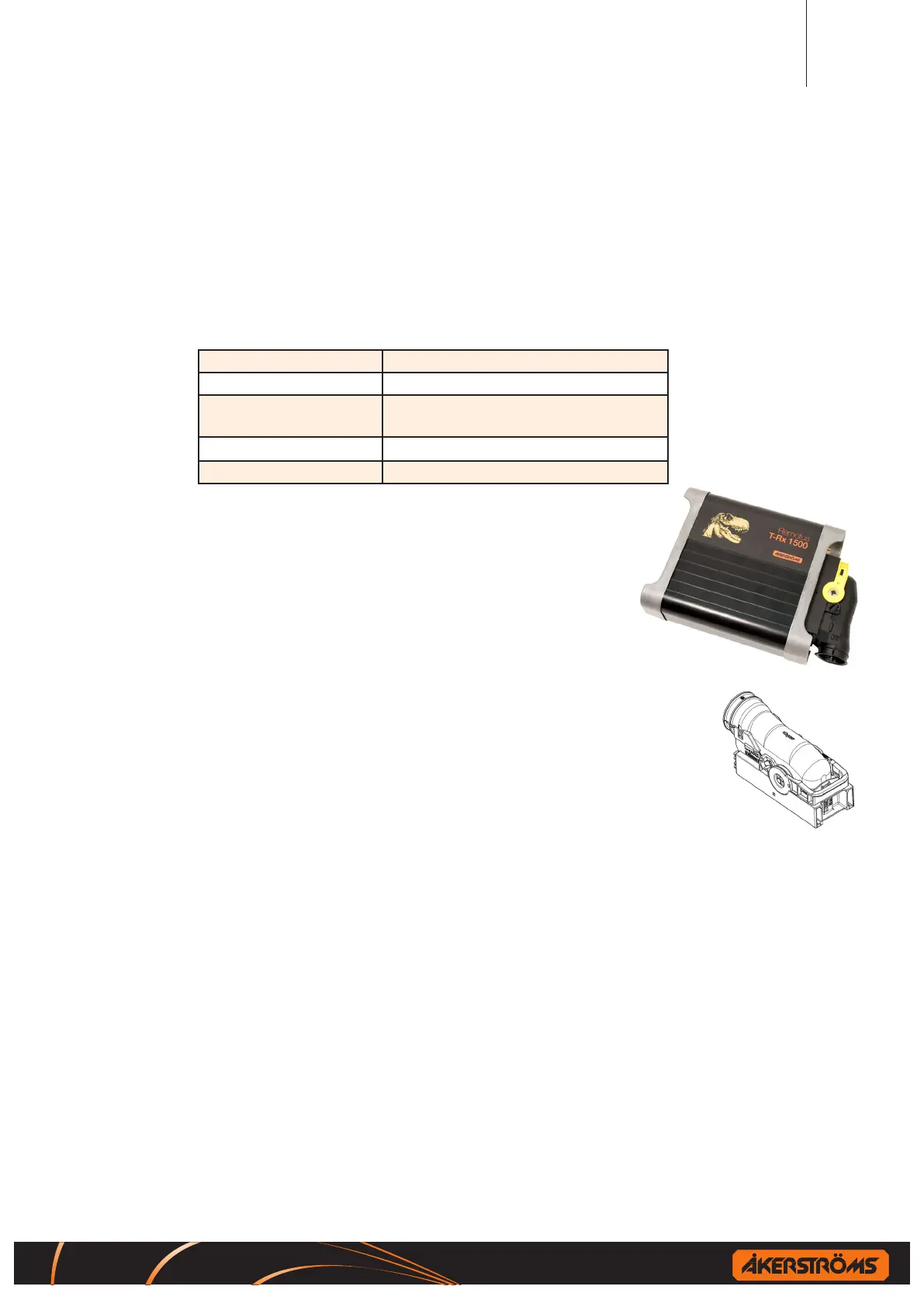

4 Receiver overview
The T-Rx receiver consists of the following parts:
One receiver T-Rx 1000 or 1500
One interface connector
One antenna
4.1 Receiver T-Rx 1000/1500
Dimensions: 218x174x64 mm, connectors excluded
Weight: 1.6 kg
Power supply: 12 V DC nominal (10-32 V DC)
max 0,35 A @12 V DC, outputs excluded
Ambient temperature:
-25 °C - +70 °C.
Degree of protection; IP67
4.2 Interface connector
AMP sealed receptacle housing for mixed 1,5 and 2,8 contacts
Number of positions: 62
Ambient temperature: -40 °C - +120 °C.
Degree of protection: up to IP67
4.3 Antennas
The antenna connector is of type
• SMA for 400 and 800 MHz radio band
• RP-SMA for 2400 MHz radio band
• Different antennas and connection cables are available.
