Åkerströms T-Rx 1000 User Manual

Single Wire Seal crimp instructions 27 (38)
Installation Manual T-Rx 1000/1500 FSK12 FSK12 Version: B4 Document-ID: 945814-000 Author: SH
14.1.3 Used parts and tools
RECEPTACLE CONTACTS LOOSE PIECES PART NO. WIRE SIZES (mm
2
)
CABLE TYPE INSULAIONS Ø(mm) STROPPED LENGTH (mm) SINGLE WIRE SEAL WIRE SEAL COLOR HAND TOOL 539635-1 WITH DIE-SET
AMP MCP 1.5K
1241379 0,2-0,5
FLR
1,1-1,4 3,5±0,3 964971-1 Red
539950-2
1241381 0,5-1,0
1,4-1,9
4±0,3
963530-1 Grey
1,9-2,3 964972-1 Yellow
EMPTY CAVITY PLUG 963531-1 White -
AMP MCP 2.8K
968875 0,5–1,0
FLR
1,4–2,1 4,5±0,3 828904-1 Blue 539726-2
968876 <1,0-2,5 2,2-3,0 4,9±0,3 828905-1 White 539727-2
EMPTY CAVITY PLUG 828986-1 Brown -

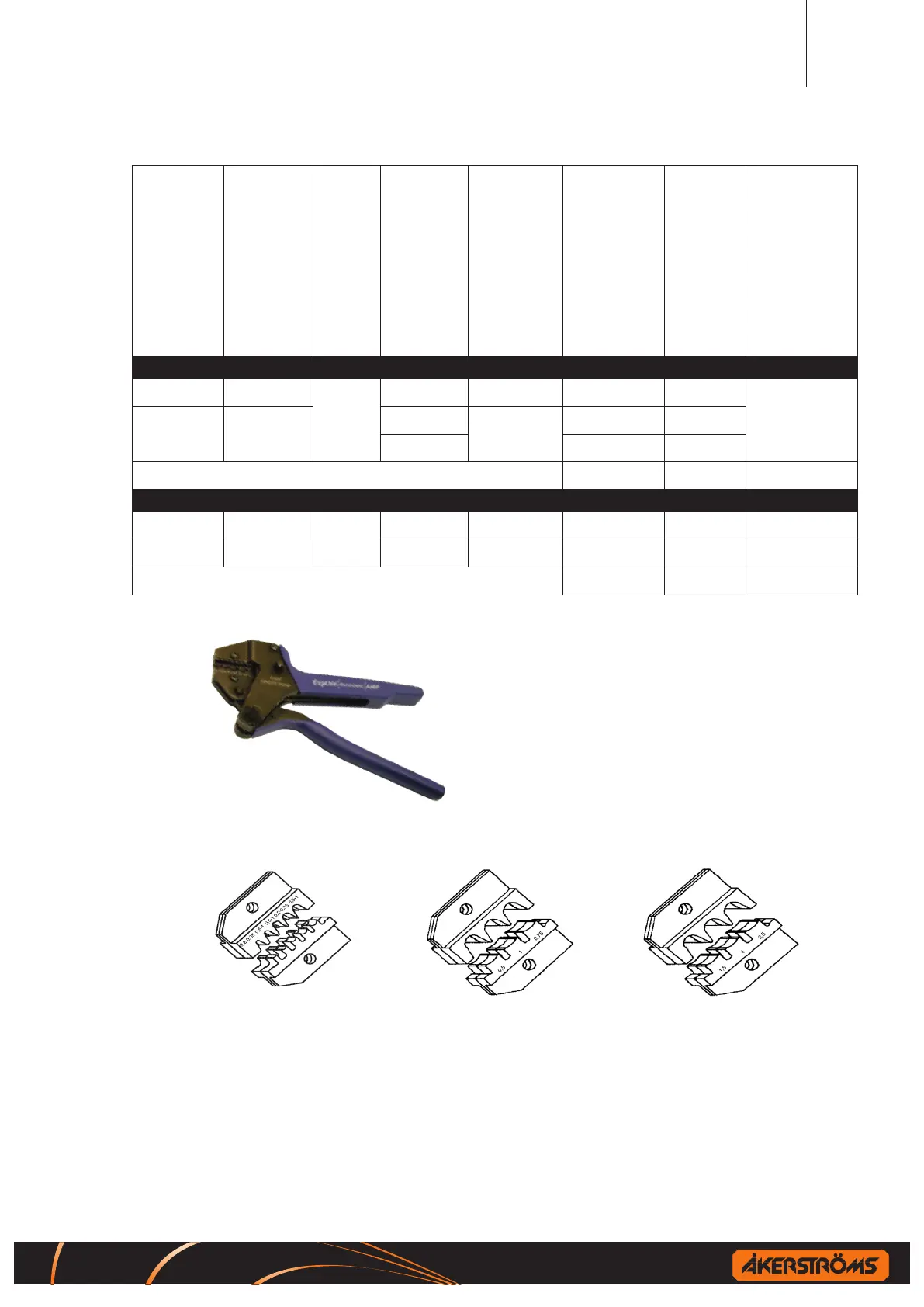

Figure 9. Contact/wire/seal/tool-table
Figure 10. Hand tool
DIE set 539950-2 DIE set 539726-2 DIE set 539727-2
Figure 11. DIE-sets
