Interface connector assembly 32 (38)
Installation Manual T-Rx 1000/1500 FSK12 FSK12 Version: B4 Document-ID: 945814-000 Author: SH

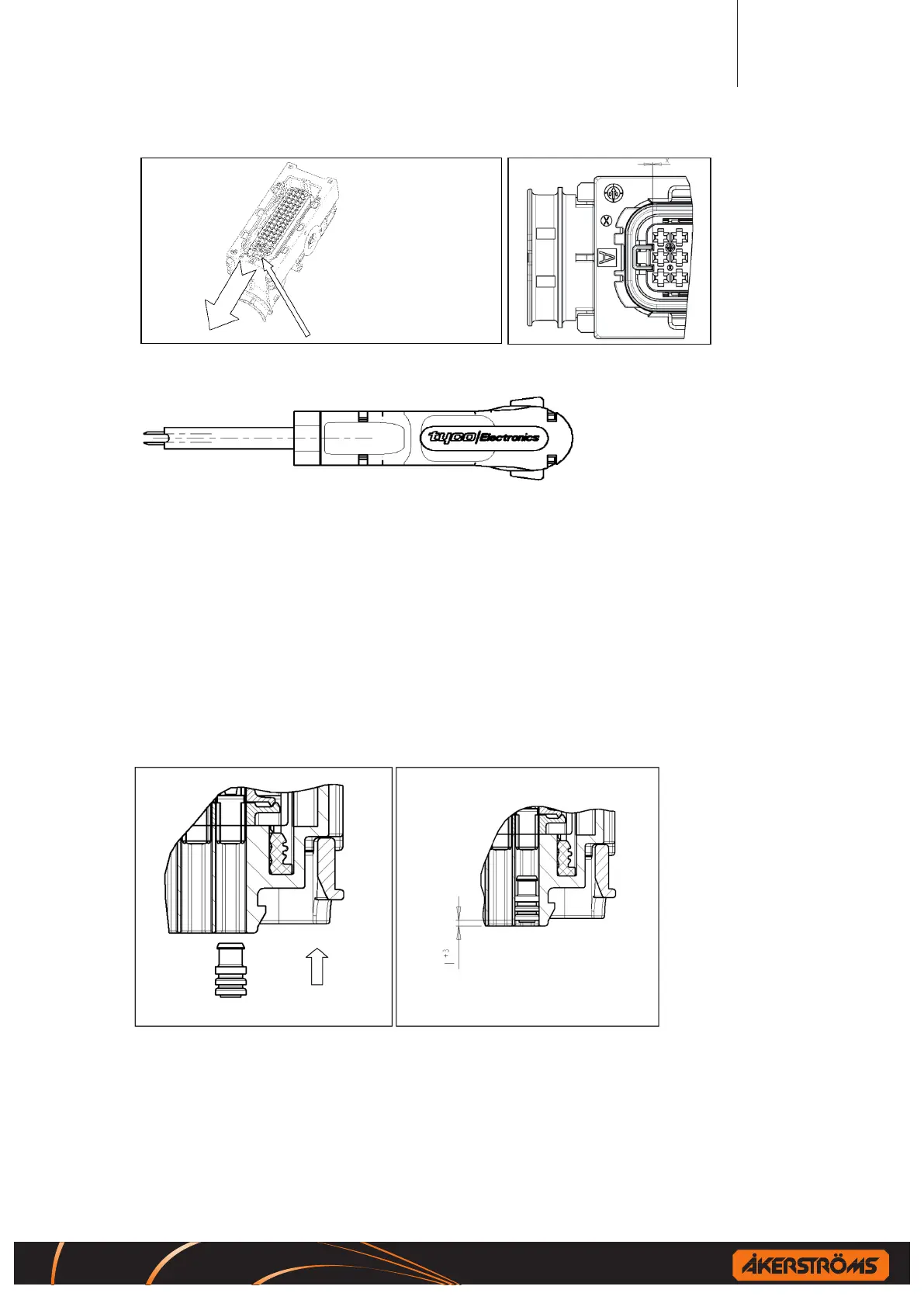

Secondary locking (yellow)
Open
Figure 18. Secondary contact unlocking
Figure 19. Extracting tool
!
Note:
Do not pull at the cable before unlocking the con tact; on the other hand by pressing the
cable gently against the cable outlet direction the unlocking pro cedure will be facilitated.
15.3.1.6 Insertion of cavity plugs
Unused cavities have to be closed with cavity plugs. The p/n’s of the cavity plugs are shown on
the contact drawings p/n 1355036 and 1241436. The cavity plug assembly can happen by hand
or with an assembly device. However, the dened insertion depth of 1 + 3mm have to be met
shown in Figure 20. During the assembly process pay attention not to damage the sealing ribs.
The insertion direction of the cavity plugs are shown in Figure 20.
Figure 20. Cavity plugs
