Akuvox A02 Administrator's Guide

Akuvox A02 Access Control Terminal Admin Guide
www.akuvox.com
20
Note
• Only the external devices connected to the relay switch need to be powered
by power adapters as the relay switch does not supply power.
10 Relay Setting
You can configure the relay switch(es) for door access on the web interface.

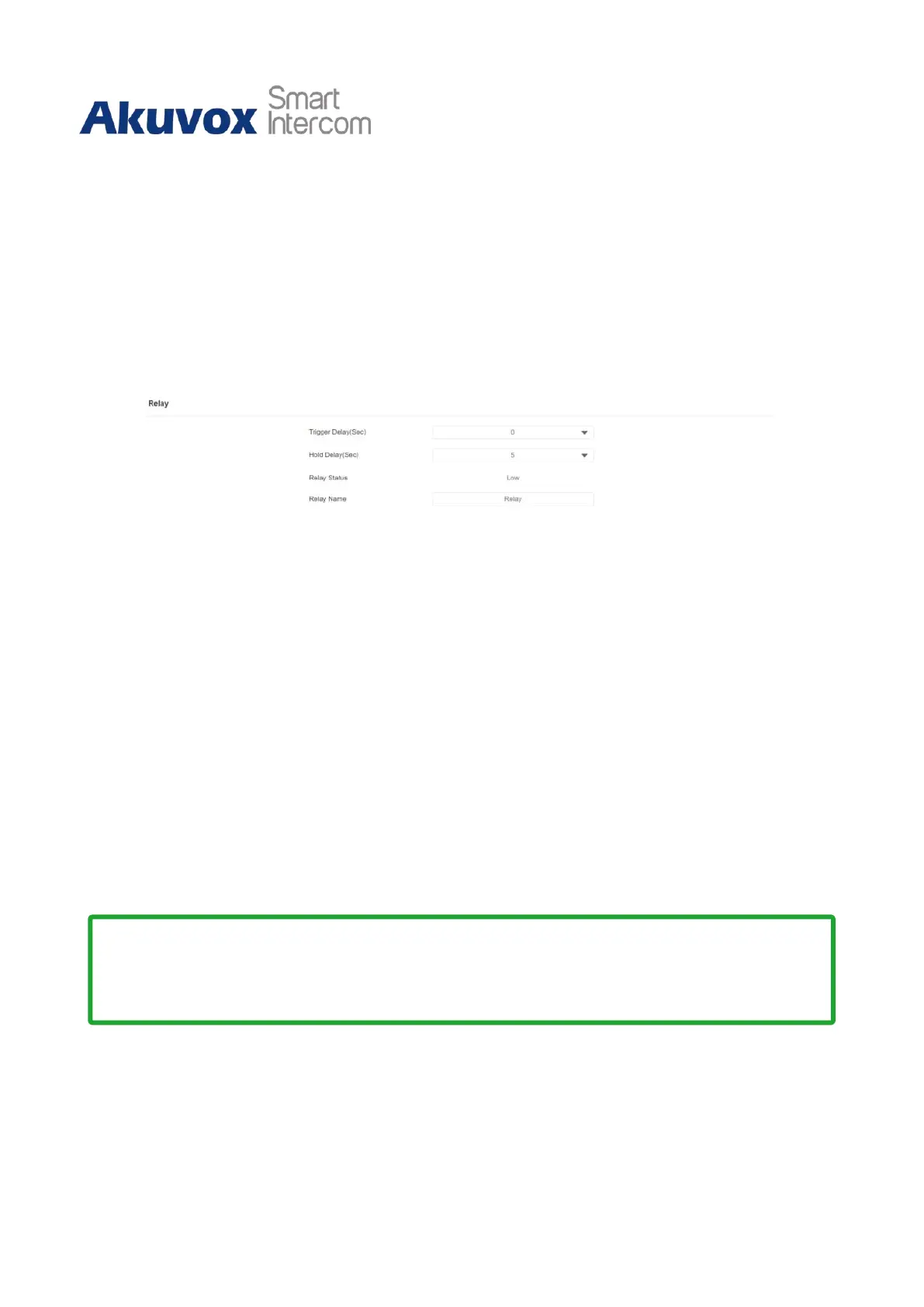

10.1 Relay Switch Setting
To configure the configuration on web Access Control > Relay > Relay interface.
Parameter Set-up:
• Trigger Delay (Sec): set the relay trigger delay timing (ranging from 0-10 Sec.). For
example, if you set the delay time as 5 sec. then the relay will not be triggered until 5
seconds after you press the unlock tab.
• Hold Delay (Sec): set the relay hold delay timing (ranging from 1-10 Sec.). For
example, if you set the hold delay time as 5 sec. then the relay will be delayed for 5
after the door is unlocked.
• Relay Status: relay status is low by default which means normally closed (NC). If the
relay status is high, then it is in Normally Open status(NO).
• Relay Name: name the relay switch according to your need. For example, you can
name the relay switch according to where the relay switch is located for
convenience.

Akuvox A02 Specifications

General

Interface	Ethernet
Case design	-
Event capacity	100000
Number of users	20000 user(s)
Card holders quantity	20000
Maximum number of doors	1 door(s)
Supported network protocols	IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Ethernet LAN data rates	10, 100 Mbit/s
DC voltage range	12 V
Power consumption	600 mA
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	33 mm
Width	86 mm
