Akuvox A02 Administrator's Guide

Akuvox A02 Access Control Terminal Admin Guide
www.akuvox.com
30

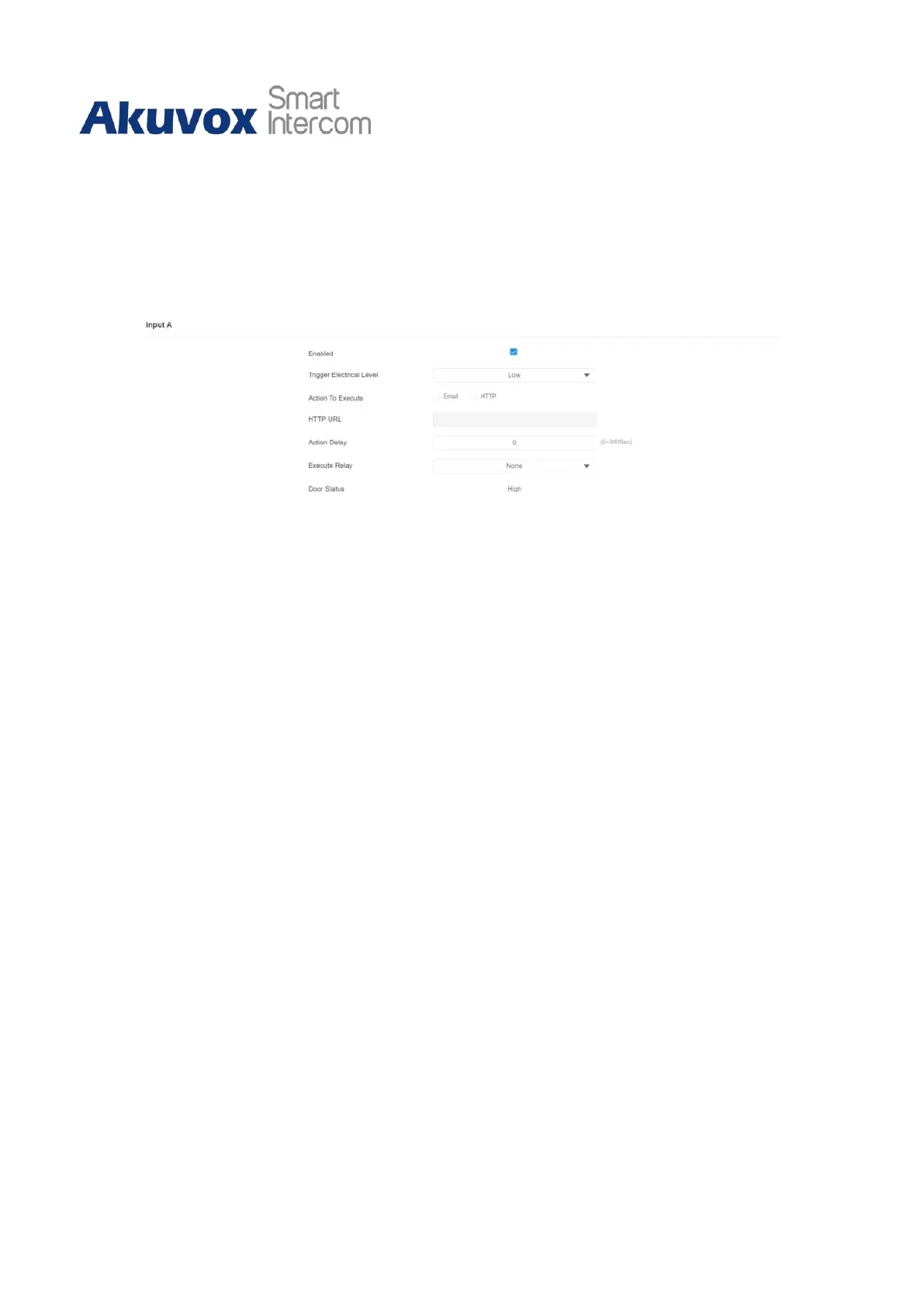

12.4 Unlock by Exit Button
When you need to open the door from inside using the exit button installed by the door, you
can configure the access control terminal Input to trigger the relay for the door access. To
configure the configuration on web Access Control > Input interface.
Parameter Set-up:
• Trigger Electrical Level: select the trigger electrical level options between Highand
Low according to the actual operation on the exit button.
• Action to execute: set actions to be triggered by the input. Email and HTTP URL
actions are supported.
• HTTP URL: to set HTTP URL.
• Action Delay: set the action delay timing (ranging from 1-300 Sec.) For example, if
you set the delay time as 5. Then the action will not be triggered until 5 seconds after
the input status changes.
• Execute Relay: set up relays to be triggered by the input.
• Door Status: display the status of the input signal.
12.5 Unlock by PIN Code
A02 supports opening the door via pin code. You can set up a PIN code on the Directory >
User, click Add, then type in the private PIN code.

Akuvox A02 Specifications

General

Interface	Ethernet
Case design	-
Event capacity	100000
Number of users	20000 user(s)
Card holders quantity	20000
Maximum number of doors	1 door(s)
Supported network protocols	IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Ethernet LAN data rates	10, 100 Mbit/s
DC voltage range	12 V
Power consumption	600 mA
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	33 mm
Width	86 mm
