Akuvox A02 Administrator's Guide

Akuvox A02 Access Control Terminal Admin Guide
www.akuvox.com
37

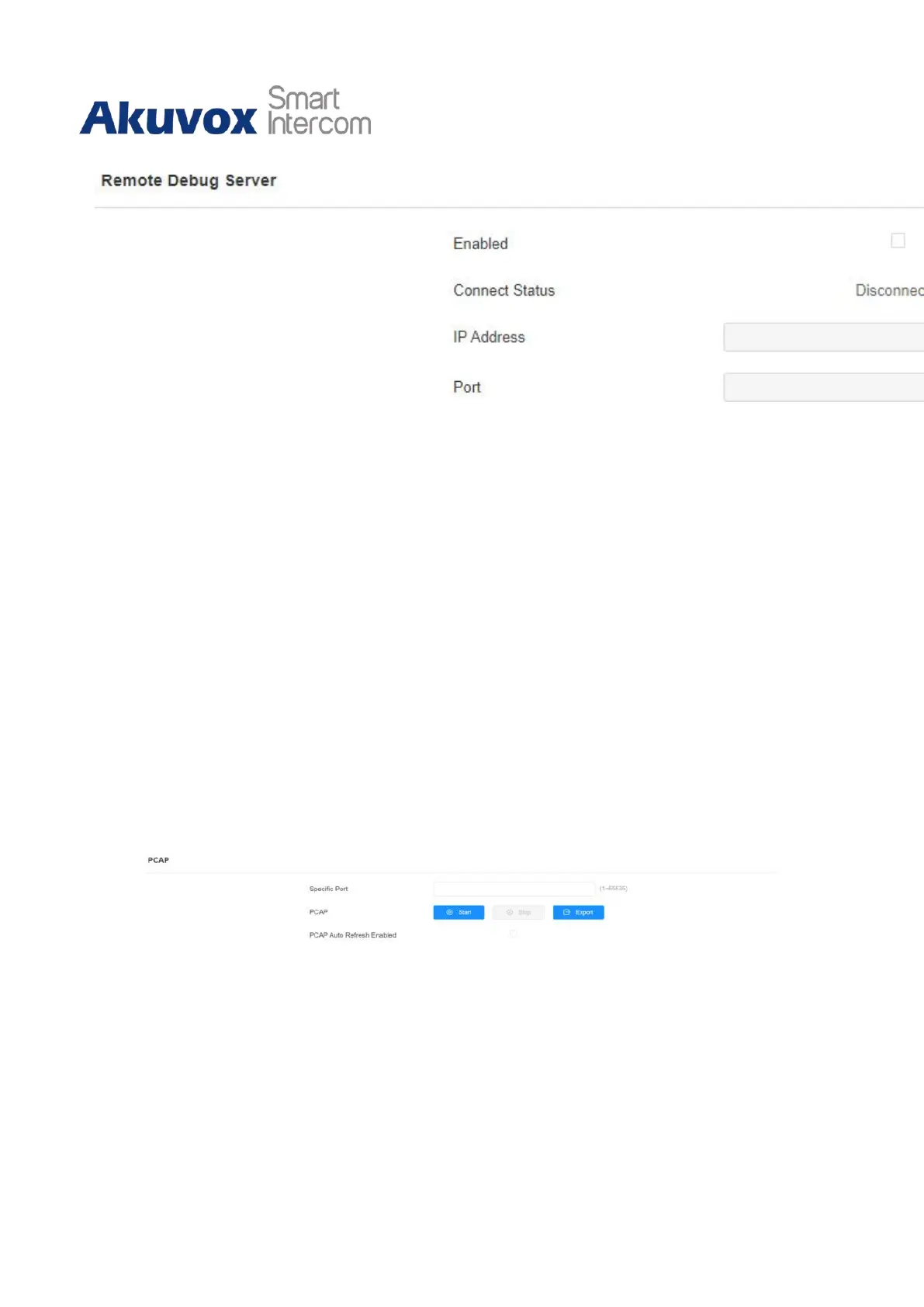

Parameter Set-up:
• Enabled: enable the debug server before debugging.
• Connect Status: displays the remote debug server connection status.
• IP Address: enter the remote debug server IP address. Please ask Akuvox technical
team for the server IP address.
• Port: type in the remote debug server port.
15.3 PCAP for Debugging
PCAP in A02 access control terminal is used to capture the data package going in and out
of the devices for debugging and troubleshooting purposes. You can set up the PCAP on
the device web System > Maintenance > PCAP interface properly before usingit.
Parameter Set-up:
• Specific Port: select the specific ports from 1-65535 so that only the data packet
from the specific port can be captured. You can leave the field blank by default.
• PCAP: click Start tab and Stop tab to capture a certain range of data packets before
clicking Export tab to export the data packets to your LocalPC.

Akuvox A02 Specifications

General

Interface	Ethernet
Case design	-
Event capacity	100000
Number of users	20000 user(s)
Card holders quantity	20000
Maximum number of doors	1 door(s)
Supported network protocols	IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Ethernet LAN data rates	10, 100 Mbit/s
DC voltage range	12 V
Power consumption	600 mA
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	33 mm
Width	86 mm
