Akuvox R28 Series - RF Card

R28A/V
Admin Guide
3.7.4.RF Card
Go to Intercom - Card setting to manage card access system.
1.Import/Export Card Data
R28 supports import or export card data, which is convenient for
administrator to deal with a large number of cards.
The maximum card data file is 200K which is around 500 cards.
2.Obtain and Add Card
 Switch card status to “Card Issuing” and click “Apply”;
 Place card on the card reader area and click “Obtain”;
 Name card, choose which door users want to open and the
valid day and time;
 Click “Add” to add it into list.
Valid card information will be shown in the list. Administrator
could delete one card’s access permission or empty all the list.
Note: Remember to set Card Status back to “Normal” after
adding cards.

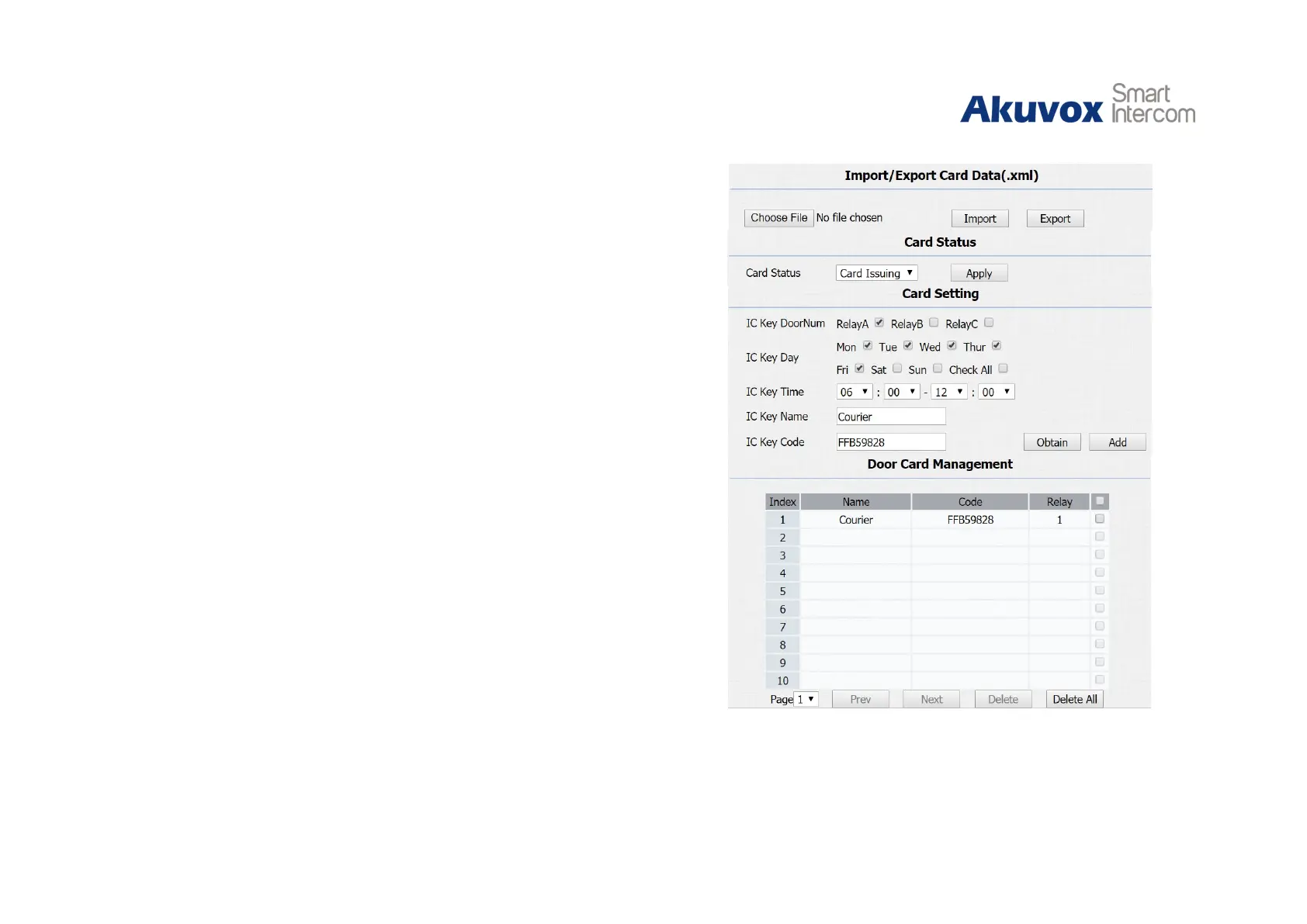

Figure 3.7.4 RF cards
