25

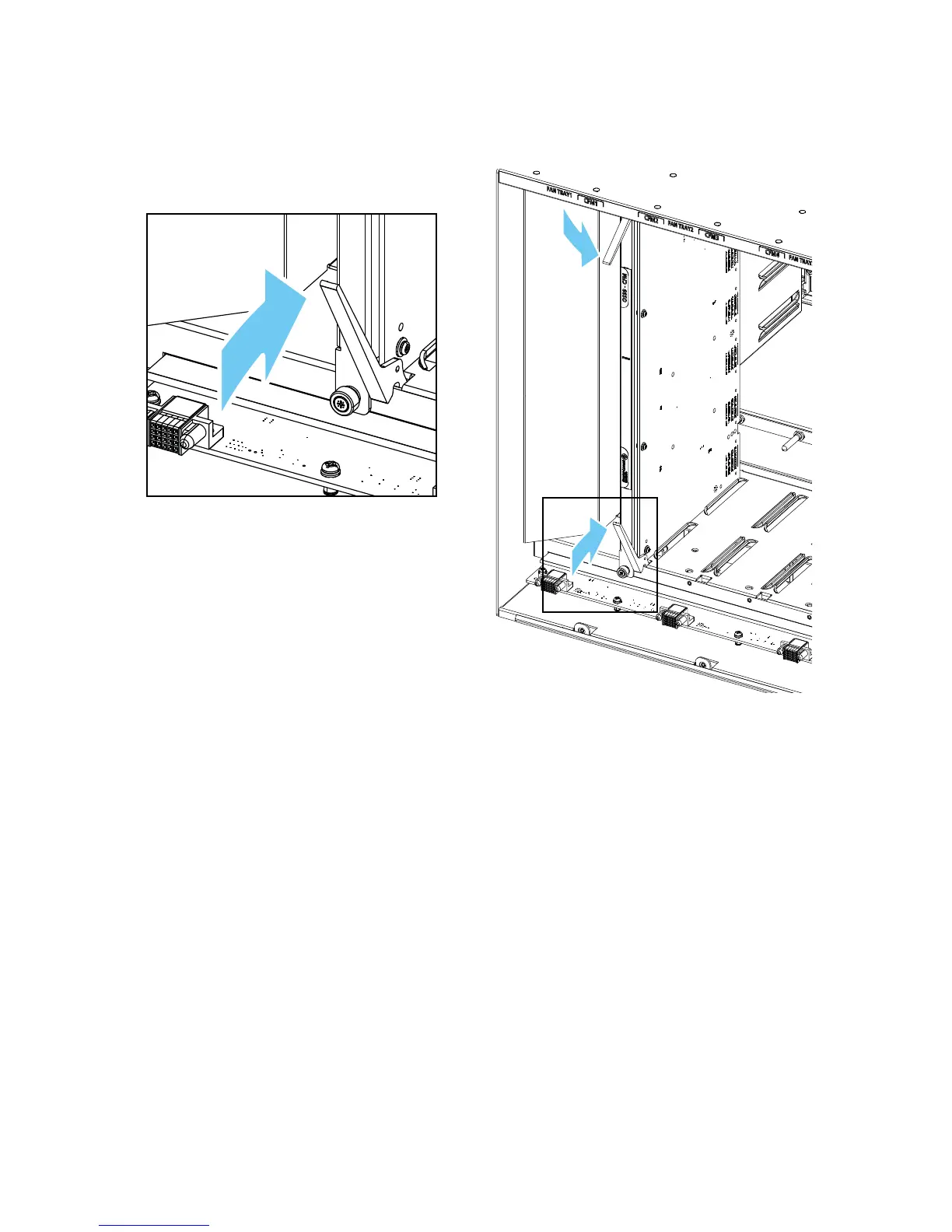

3. Simultaneously press the top and bottom lock levers until the levers are in the vertical (locked)
position and the module is firmly seated in the chassis mid-plane.
4. Hand-tighten the captive screws at the top and bottom of the module.
5. Repeat these steps for additional CFMs (if applicable).
6. Install fan trays as needed. (For information on installing fan trays, refer to “Installing Fan Trays” on
page 26.)
