Removing Fabric Modules
To access OS9907-CFM slots, be sure the fan trays covering the slots have been removed. (For
information on removing fan trays, refer to “Removing Fan Trays” on page 50.)

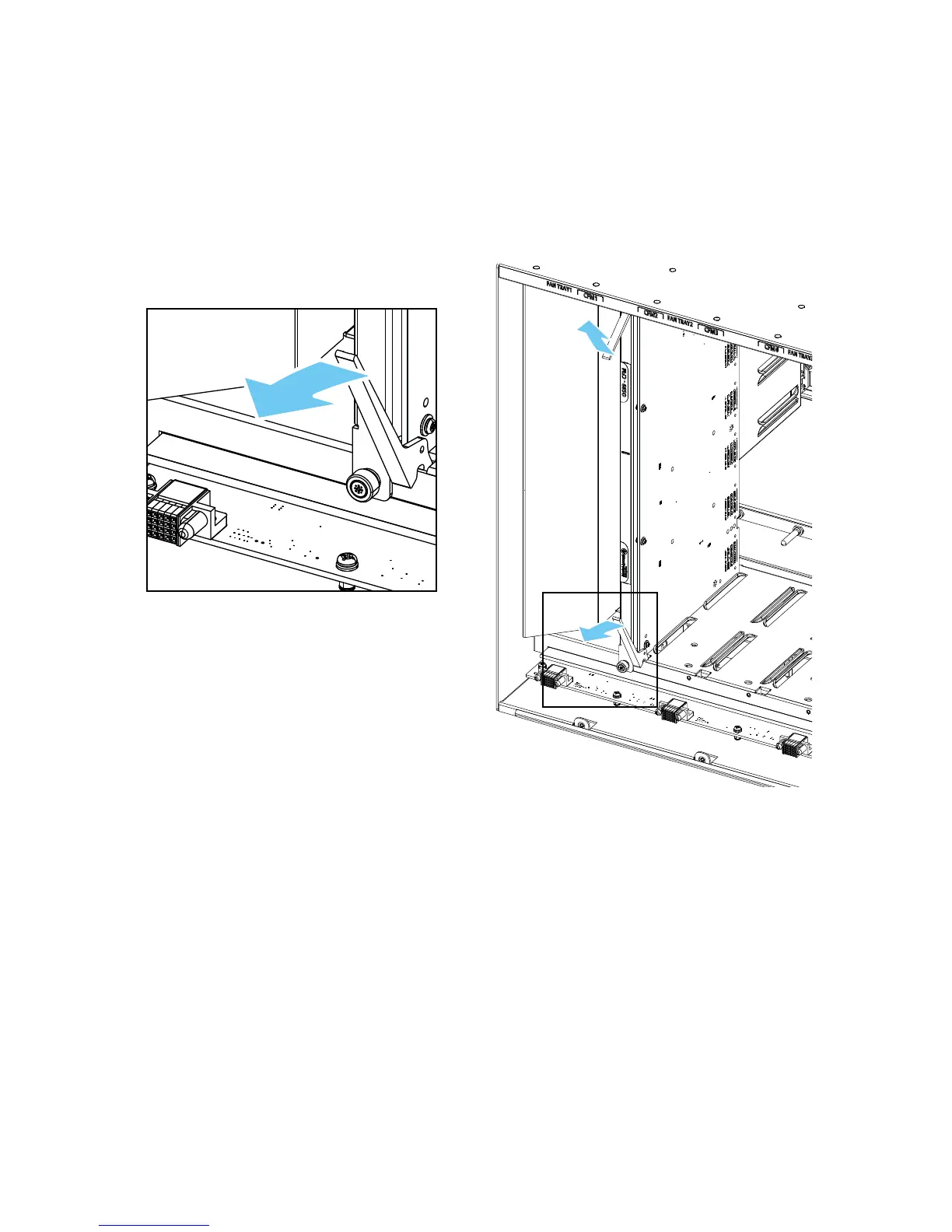

1. Loosen the thumb screws at the top and bottom of the module, then pull the lock levers outward to
release the CFM from the chassis.
