Installing Modules

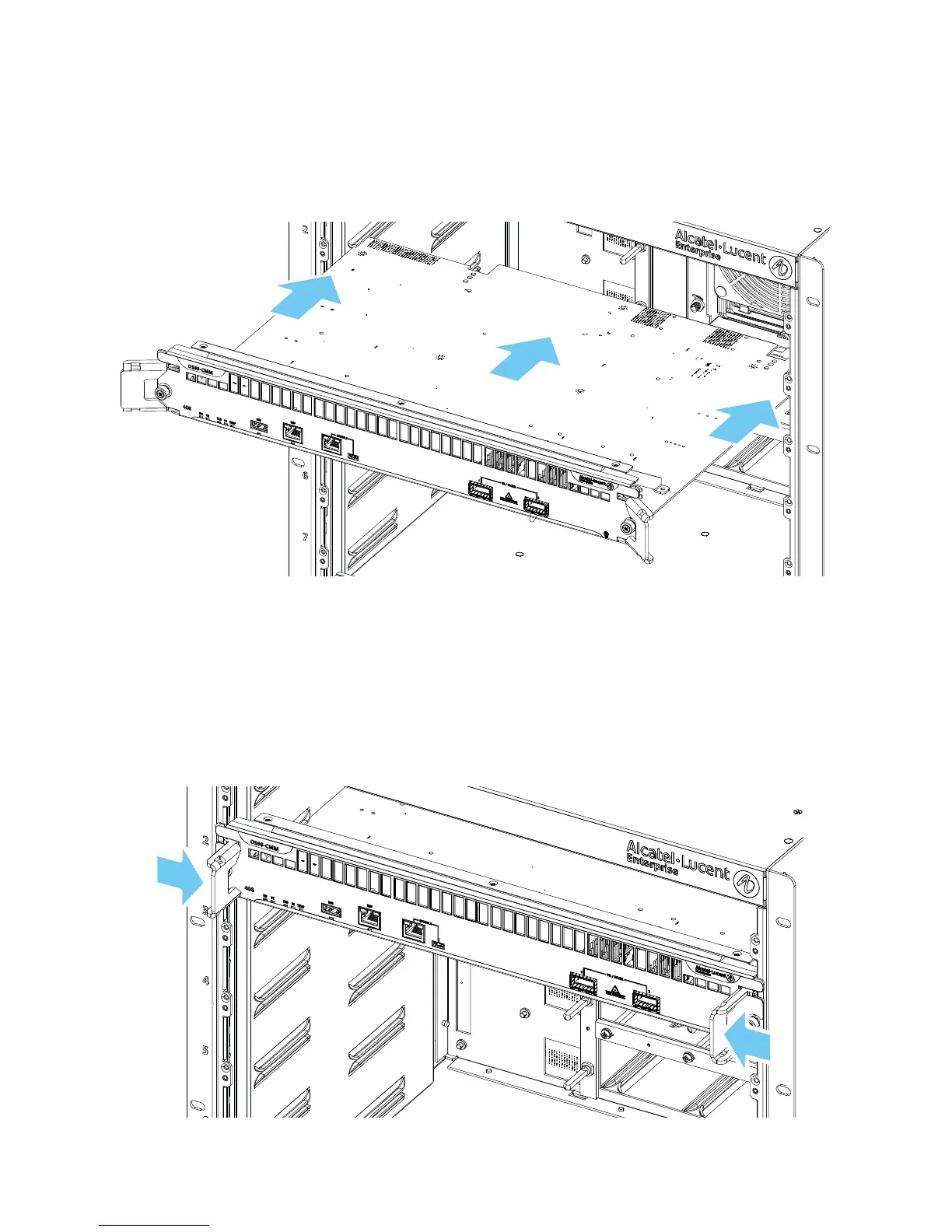

1. To install a module, insert the edges of the circuit board into the grooves at the left and right sides
of the chassis.
2. Be sure the lock levers are in the open position and slide the module back until it meets the
backplane connectors.
3. Tighten the lock levers by pulling them inward (toward the center of the module’s front panel).
When the modules are fully closed (at a 90 degree angle with the front panel), the module will be
firmly seated.
When the module is fully seated, hand-tighten the thumb screws at the left and right sides of
the module.
