Removing Modules

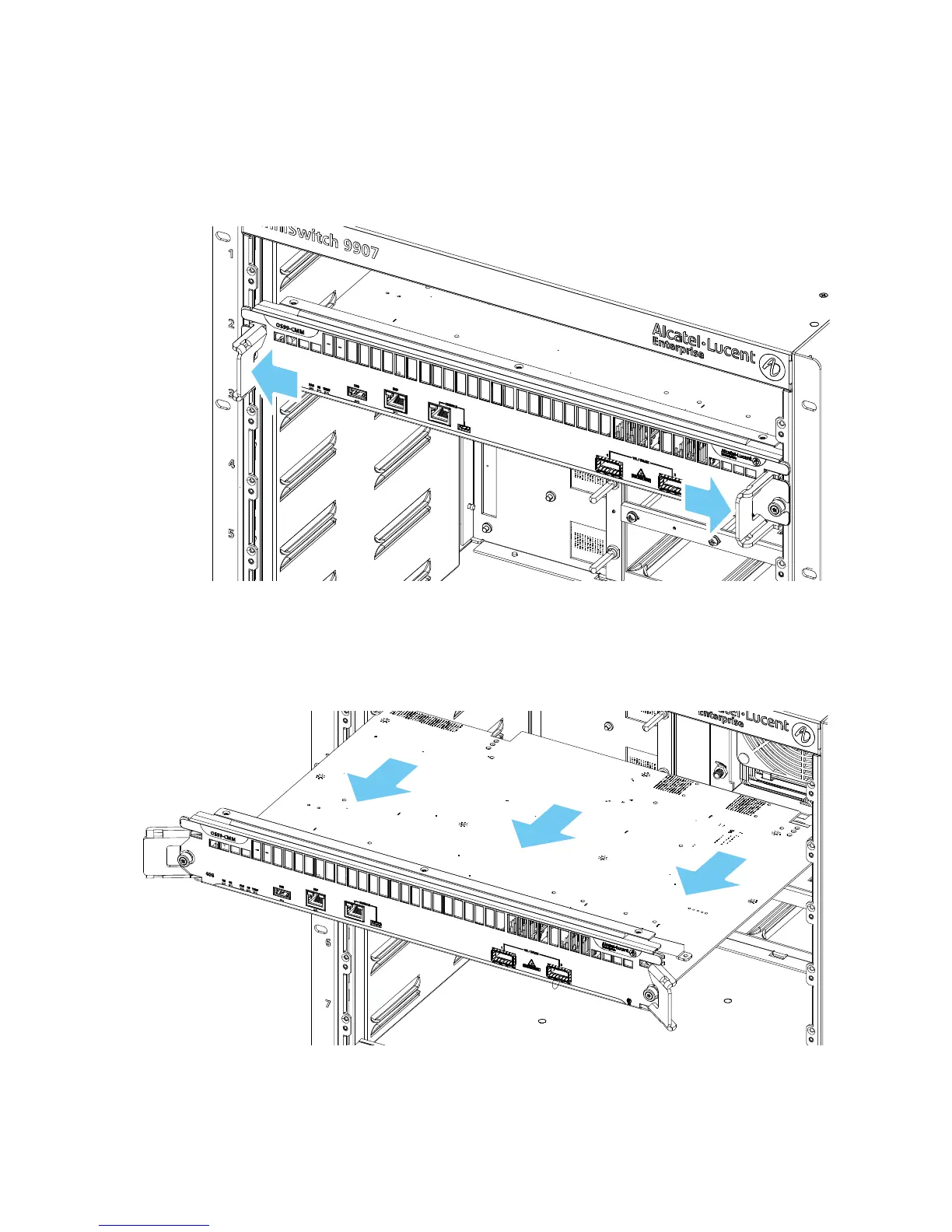

1. Loosen the thumb screws at the left and right sides of the module, then press the lock levers
outward to release the module from the chassis.
2. Grasp the module by the front panel and/or lock levers and slide the module out of the slot. Be sure
to support the weight of the module as it is being removed to prevent the module from falling out of
the chassis slot, which can result in damage to the equipment.
