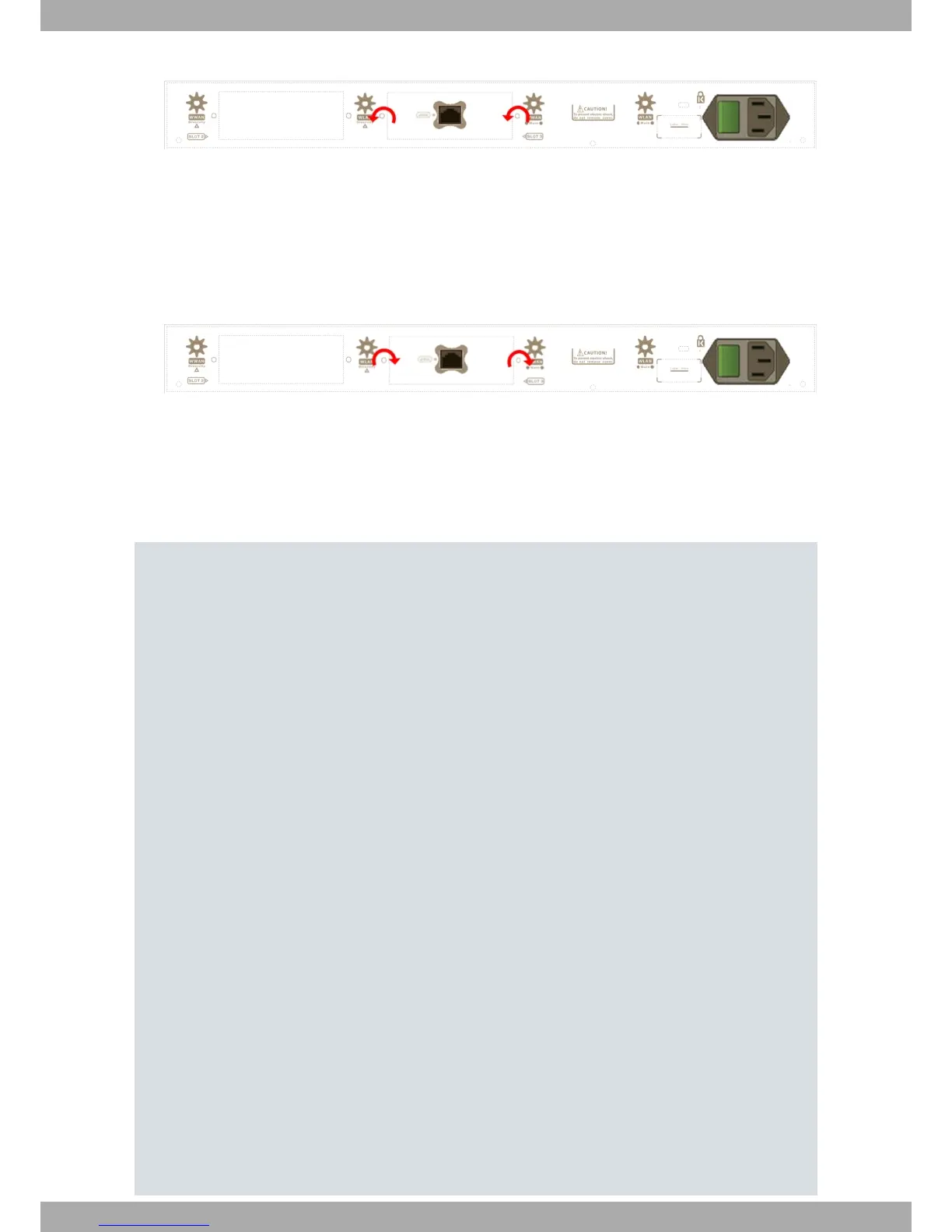

Fig. 24: Remove the SLOT 3 cover
(8) Place the xDSL expansion card so that this firstly adjusts to the space on the device rear panel and sub-
sequently to the motherboard connection. This operation must be carried out carefully, without forcing any piece
or part of the device. Check that the board is clearly settled over the motherboard connector.
(9) Screw the board to the securing posts using two screws and their corresponding washers. Firmly tighten the
screws without damaging the board.
(10) Reposition the expansion slot cover and screw it down.
Fig. 25: Reposition the SLOT 3 cover
(11) Rearrange the top panel flap and screw it into place using the screws. Please see Fig. 14 on page 11.
(12) Connect and switch on the device, as described in section Connecting on page 19. Should you detect any prob-
lems, switch off the device and make sure that the above steps have been carried out correctly. If the problem
persists, please contact your usual supplier.
(13) Connect a terminal to the console and check that the device detects the xDSL board.
**************************************************
**************************************************
**************************************************
BIOS CODE DUMP....................
BIOS DATA DUMP.....
End of BIOS dump
BIOS menu address: 0x4BD78
FLASH BIOS CODE VERSION: 02.01 Mar 6 2013 17:59:56 L1
Current date: Mar 27 2013, Wednesday Current time: 12:56:57
System Info:
PCB:0x128 GPPORCR:0x00280000 PVR:0x80212051 SVR:0x80EC0011
CLKs(KHz): CCB=393216 CPU0=786432 CPU1=786432 DDR(clk)=327680 LBUS=49152
Watchdog: Enabled
MMU Mode: Dynamic
ICache: ON; DCache: ON Write-Back; L2Cache: ON
Mem Info:
DRAM size: 512 Megabytes
BANK 0: 512 Megabytes (detected)
FLASH: 65024 KB.
NVRAM: 128 KB.
EEPROM: 2048 Bytes.
Devices:
GIGABIT ETHERNET 1
GIGABIT ETHERNET 2
ADSL CARD 0x08
LAN OVER SWITCH
SWITCH(8) 10/100 CARD 0x18
POE CARD 1
SECURITY ENGINE
Slot 1 - PCI device: PowerPC processor, Host (Bus: 10, Device: 0, Function: 0)
(Vendor: 0x1957, Device: 0x0100)
(Subs. Vendor: 0x0000, Subs. Device: 0x0000)
Slot 1 - PCI device: PCI-to-PCI bridge
(Bus: 11, Device: 0, Function: 0)
3 Components and Power Supply Alcatel-Lucent Enterprise
16 OA58XX Router
