Page #18 background imageLoading...
Page #18 background image
Current production date: 11 23
Current software license: 28 60
S/N: 754/00111
BIOS MAC Add: 00-a0-26-a2-00-2c
>>.....
....
TRYING APP DUMP
(CONFIGURED) appcode1.bin ver.: 0.11.0.1 0.0.0.0
APP0 CODE DUMP. Mode:0.....................................
APP0 DATA DUMP.............................................
APP CODE DUMP..............................................
APP DATA DUMP..............................................
Running application at: 0x00200140
Flash configuration read
Parsing text mode configuration ...
Configuration parsed
Initializing
Press any key to get started
3.2.2 SLOT 2 - Expansion Slot
SLOT 2 is located on the left hand side of the device’s Rear Panel on page 7. In this case, we insert an AIC (Add-In
card) in the SLOT.

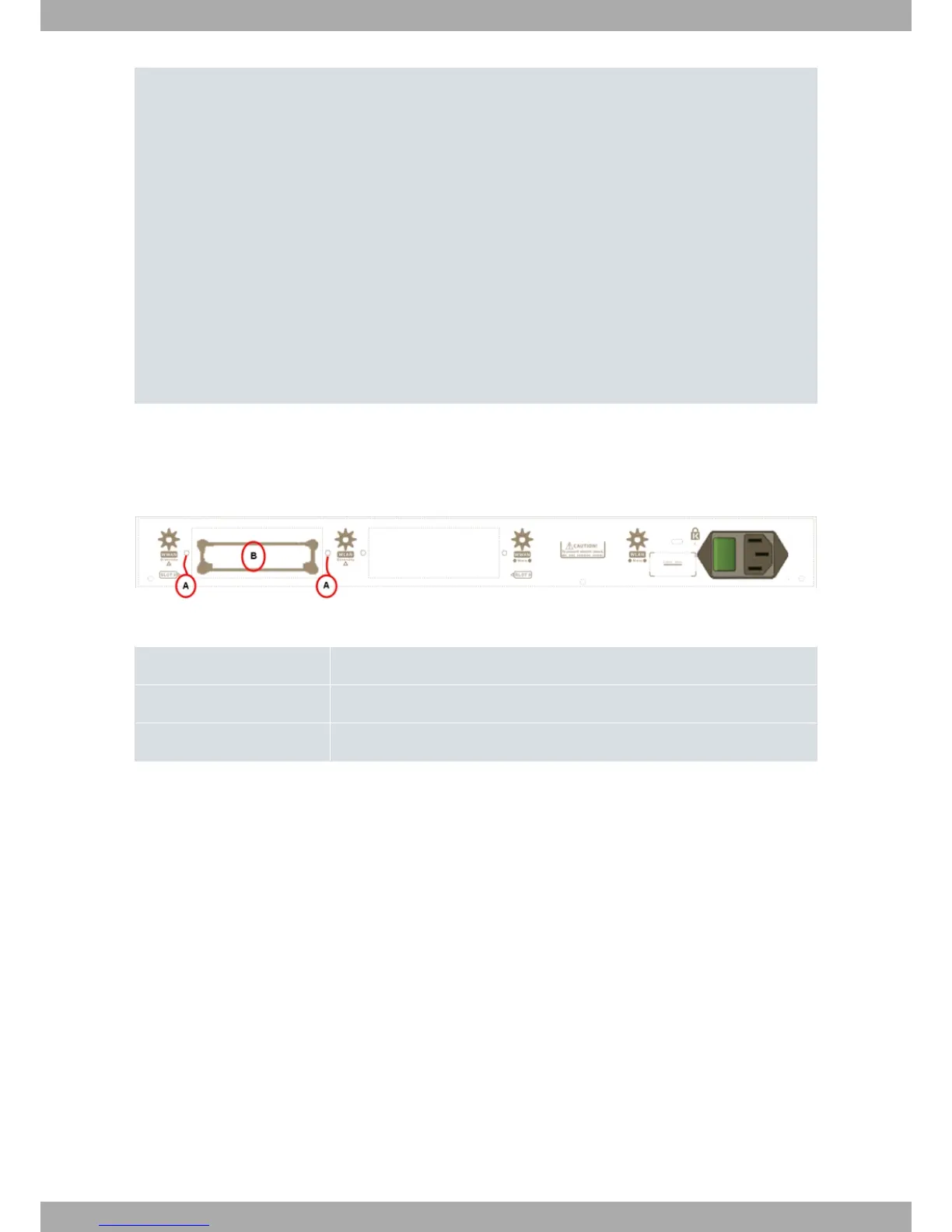

Fig. 15: SLOT 2
SLOT 2 elements
Item Description
A Screws to hold the cover of the expansion module in SLOT 2.
B AIC expansion module.
To correctly insert the card, please follow these steps:
(1) Switch off the device and remove the cables, as described in section Disconnecting on page 19.
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.
(3) Remove the screws from the side panel in order to be able to dismantle the flap that gives access to the expan-
sion cards. Please see Fig. 9 on page 10.
(4) Once the screws have been removed, slide the flap and lift it (making sure no grooves attach the flap to the top
panel) to remove it. Place it in a safe location.
(5) Find the place where the expansion board needs to be located. This slot has a set of elevated connectors with
gold contacts and a pair of standoffs.
