SWITCH(8) 10/100 CARD 0x18
POE CARD 1
SECURITY ENGINE
Slot 1 - PCI device: PowerPC processor, Host (Bus: 10, Device: 0, Function: 0)
(Vendor: 0x1957, Device: 0x0100)
(Subs. Vendor: 0x0000, Subs. Device: 0x0000)
Slot 1 - PCI device: PCI-to-PCI bridge
(Bus: 11, Device: 0, Function: 0)
(Vendor: 0x10B5, Device: 0x8112)
(Subs. Vendor: 0x0000, Subs. Device: 0x0000)
Slot 1 - PCI device: bridge
(Bus: 12, Device: 14, Function: 0)
(Vendor: 0x1057, Device: 0x18C1)
(Subs. Vendor: 0x5444, Subs. Device: 0x1700)
Current production date: 11 23
Current software license: 28 60
S/N: 754/00111
BIOS MAC Add: 00-a0-26-a2-00-2c
>>
.....
....
TRYING APP DUMP
(CONFIGURED) appcode1.bin ver.: 0.11.0.1 0.0.0.0
APP0 CODE DUMP. Mode: 0....................................
APP0 DATA DUMP.............................................
APP CODE DUMP..............................................
APP DATA DUMP..............................................
Running application at: 0x00200140
Flash configuration read
Parsing text mode configuration ...
Configuration parsed
Initializing
Press any key to get started
Once the APC PoE card has been installed, we can connect the PoE source to the device:

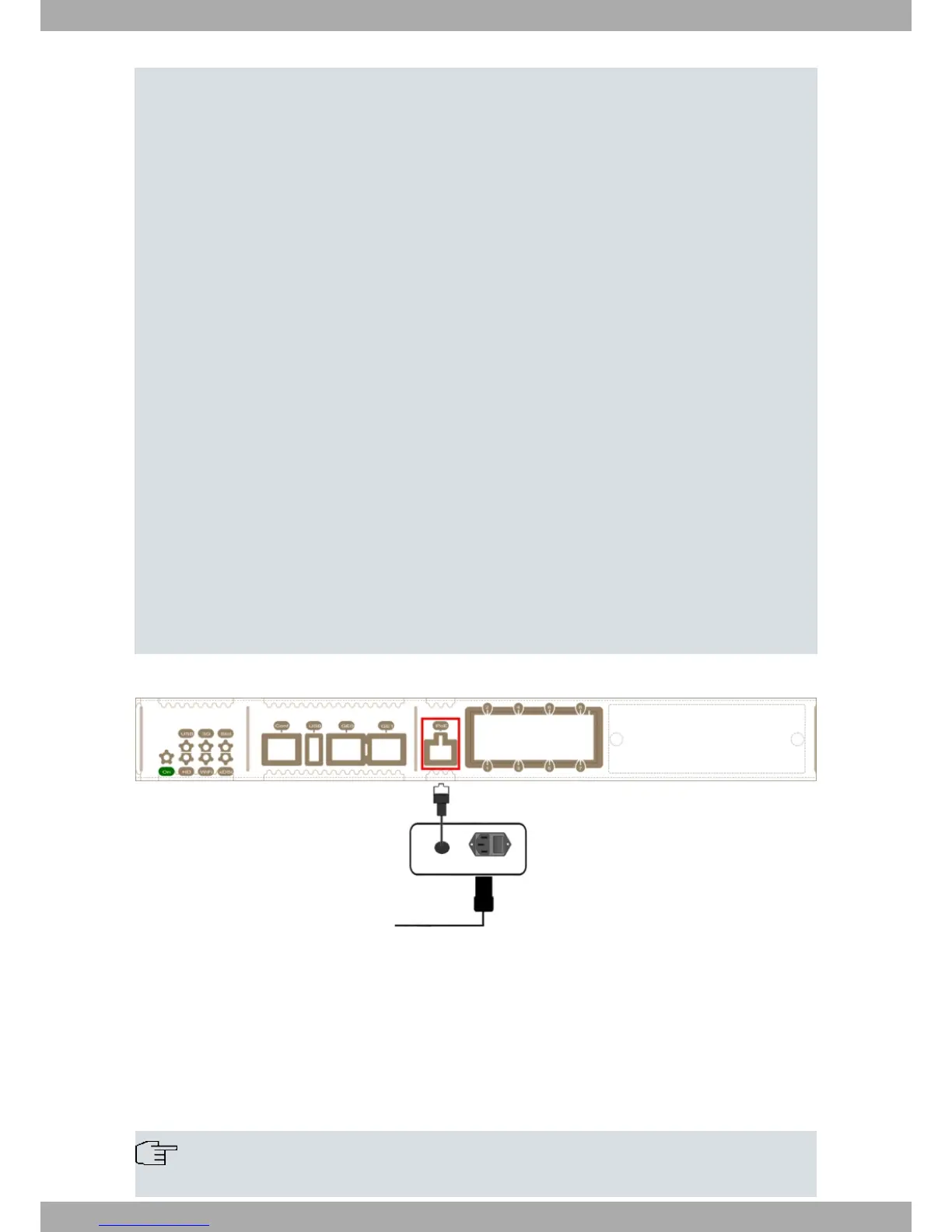

Fig. 32: Connecting the PoE source to the device: Schema
3.5 Microswitches
The OA58XX router has a block of 8 available micro-switches ( located on the underside of the device) that are used
for maintenance and test tasks.
In this case, they are only used to load the default configuration. These switches should not be handled by the user
other than to establish the default configurations.
Note
For the device to operate correctly, all micro-switches must be in the OFF position.
Alcatel-Lucent Enterprise
3 Components and Power Supply
OA58XX Router 21
