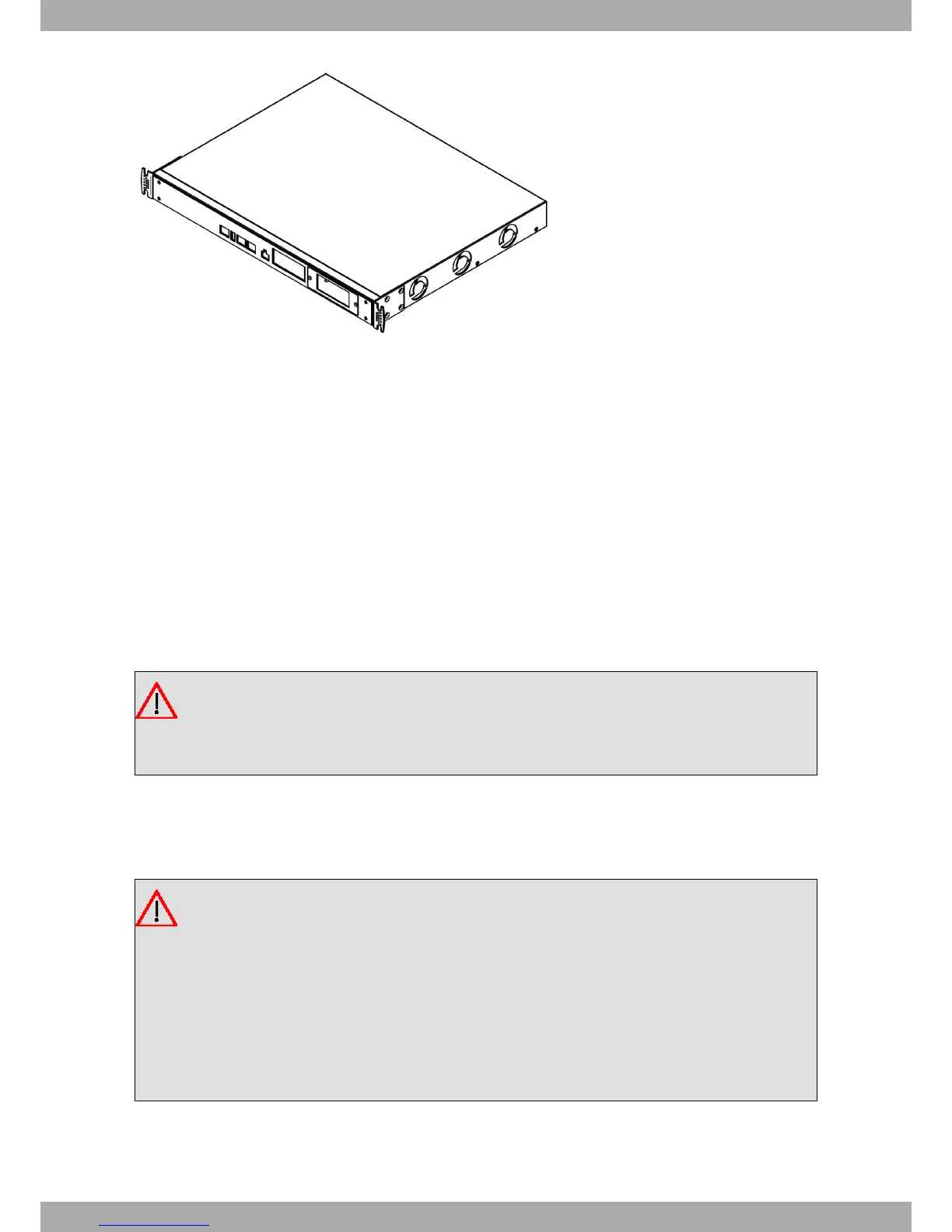

Fig. 27: Device with the strips
3.4 Power Source
The OA58XX router is powered with an internal power source.
Additionally, the OA58XX router can incorporate an optional card to inject PoE through the 8-port Switch. In this
case, the device has to be connected to an AC/DC external power source to power said module.
Workplace Conditions. Main Characteristics
• Excessive cold and heat should be avoided, as should humidity and dust.
• Direct exposure to sunlight should be avoided as well as other heat sources. The device should not be placed
amongst papers, magazines or other elements that could hinder natural air circulation.
• The device should not be placed very close to strong electromagnetic fields such as speakers, engines, etc.
• Knocks and/or strong vibrations should be avoided during transport, operation and storage.
Warning
The electric current in power cables, telephone lines and communication cables is dangerous. To pre-
vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-
nect the cables following the steps set forth in Connecting on page 19 andDisconnecting on page 19.
3.4.1 Internal Power Source
To connect the power cable to the device, follow the steps set forth in section Connecting on page 19.
Warning
To avoid electric shocks, residual current circulation and other unwanted effects, also affecting commu-
nications, the following is recommended:
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply
or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices
should be connected to the same power source. This will avoid operating and premature aging prob-
lems of drivers and other components.
3 Components and Power Supply Alcatel-Lucent Enterprise
18 OA58XX Router
