3.2.3 SLOT 3 – Expansion Slot
SLOT 3 is located in the middle of the device’s Rear Panel on page 7. Insert an xDSL expansion board in this SLOT.

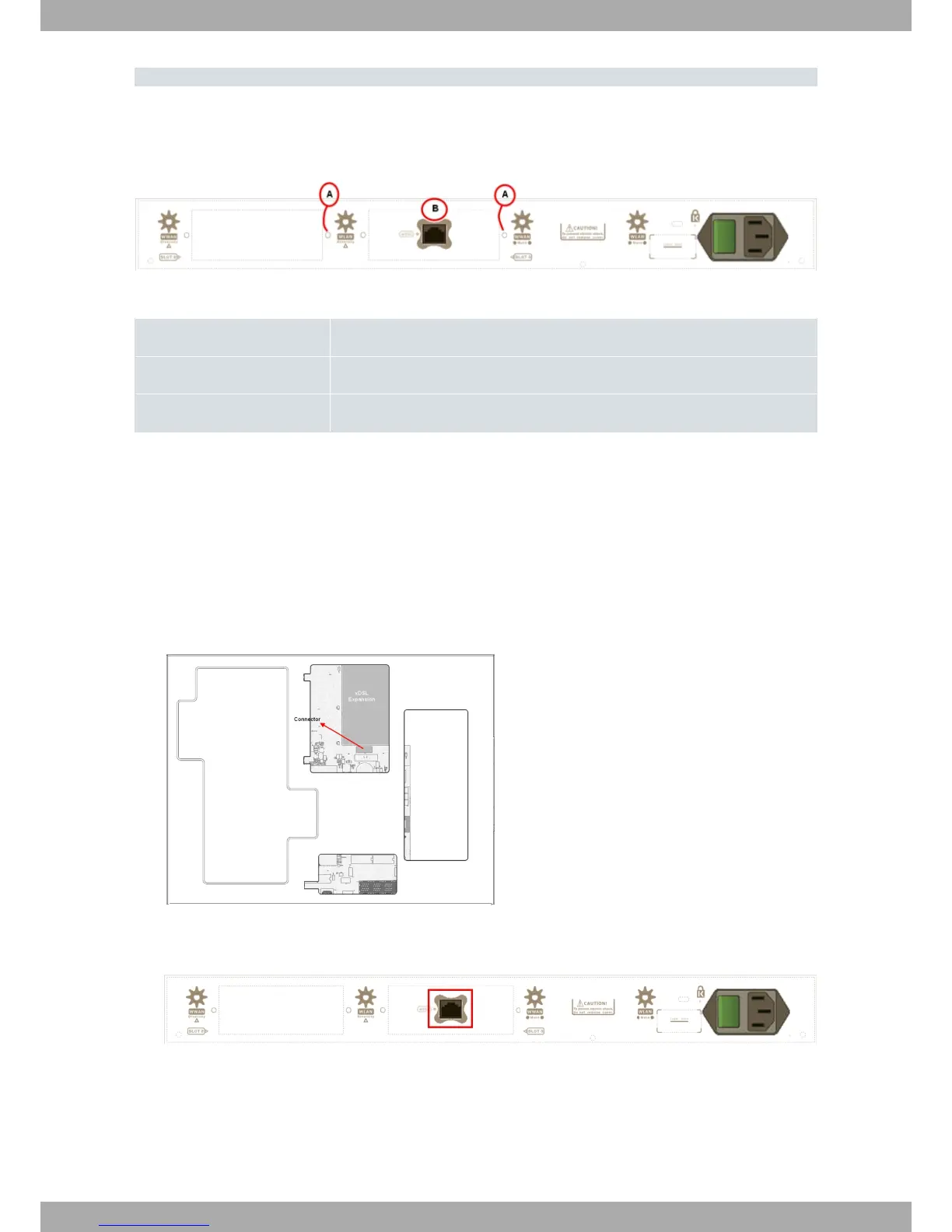

Fig. 21: xDSL expansion card module
SLOT 3 elements
Item Description
A Screws to hold the cover of the expansion module in SLOT 3.
B xDSL expansion module.
To correctly insert the card, please follow these steps:
(1) Switch off the device and remove the cables, as described in section Disconnecting on page 19.
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.
(3) Remove the screws from the side panel in order to be able to dismantle the flap that gives access to the expan-
sion cards. Please see Fig. 9 on page 10.
(4) Once the screws have been removed, slide the flap and lift it (making sure no grooves attach the flap to the top
panel) to remove it. Place it in a safe location.
(5) Find the place where the xDSL expansion board needs to be located.
Fig. 22: xDSL expansion board: Location
(6) Remove the lid that holds the back cover located on the rear panel.
Fig. 23: Lid cover for xDSL
(7) Using a screwdriver, remove the cover over the expansion slot.
Alcatel-Lucent Enterprise
3 Components and Power Supply
OA58XX Router 15
