(Vendor: 0x1057, Device: 0x18C1)
(Subs. Vendor: 0x5444, Subs. Device: 0x1700)
Current production date: 11 23
Current software license: 28 60
S/N: 754/00111
BIOS MAC Add: 00-a0-26-a2-00-2c
>>
.....
....
TRYING APP DUMP
(CONFIGURED) appcode1.bin ver.: 0.11.0.1 0.0.0.0
APP0 CODE DUMP. Mode: 0.................................
APP0 DATA DUMP..........................................
APP CODE DUMP...........................................
APP DATA DUMP...........................................
Running application at: 0x00200140
Flash configuration read
Parsing text mode configuration ...
Empty configuration used
Initializing
Press any key to get started
• On reaching this point, put micro-switch ‘5’ in the OFF position (it’s not necessary to turn off the device). This way,
the saved configuration will run the next time you restart the device.
3.6 Data Connection
The OA58XX router has the following data connections:
3.6.1 8-port Ethernet Switch
The OA58XX router incorporates an 8-port 10/100BaseT Switch with automatic MDI/MDIX to connect to a local area
network (LAN).
Please pay careful attention to the labeling so you do not mix this switch with other types of ports:

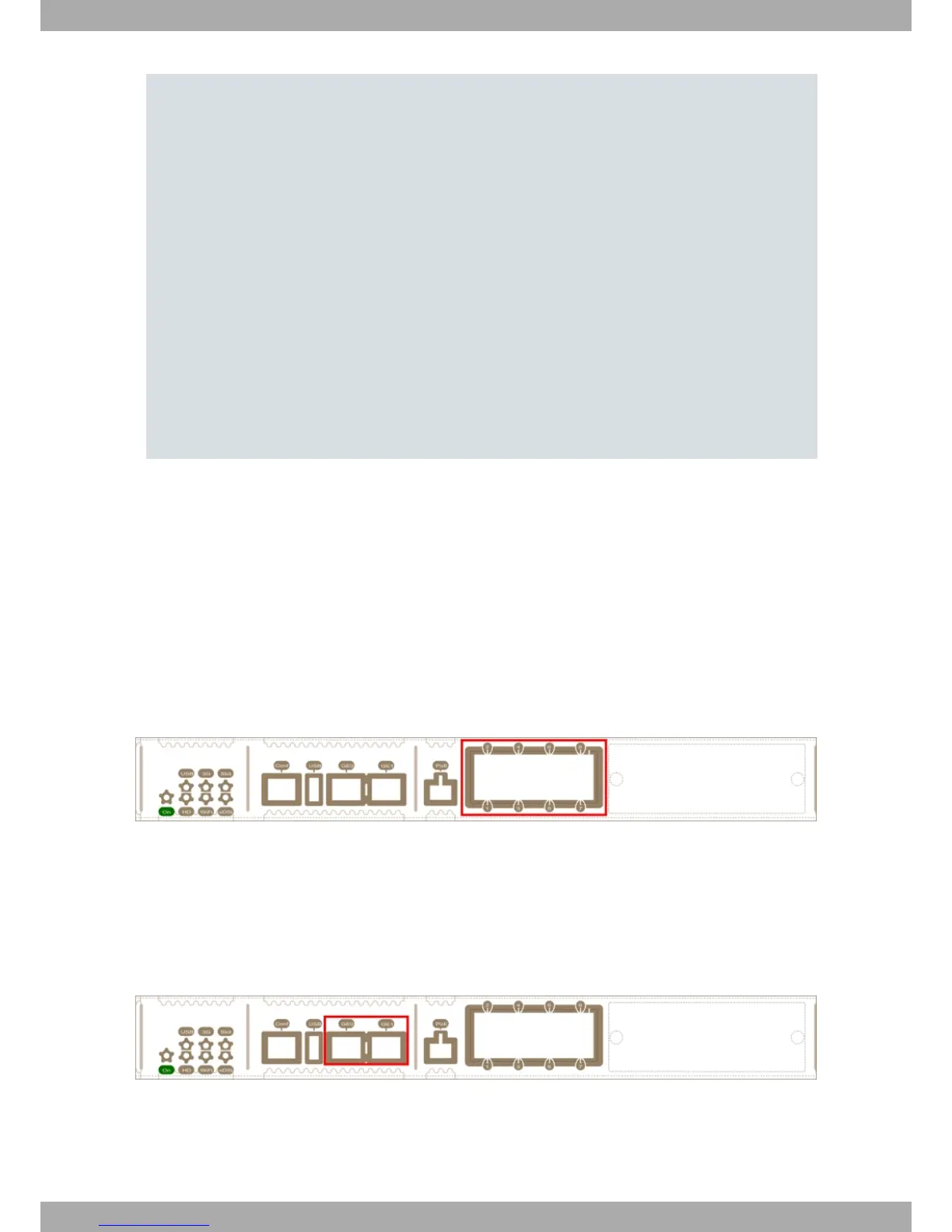

Fig. 33: LAN Switch ports
3.6.2 GE0/GE1Connections
The OA58XX router has two interfaces to connect to Ethernet networks. Each interface has a metallic connector
(10/100/1000 Base-T). The GE0/GE1ports are independent from the Switch.
Please pay careful attention to the labeling so you do not mix this switch with other types of ports:
Fig. 34: Giga Ethernet connectors
Alcatel-Lucent Enterprise
3 Components and Power Supply
OA58XX Router 23
