lished.
In addition to the LEDs described in the above table, the front panel also has the LEDs for the Gigabit and Switch
Ethernet interfaces.

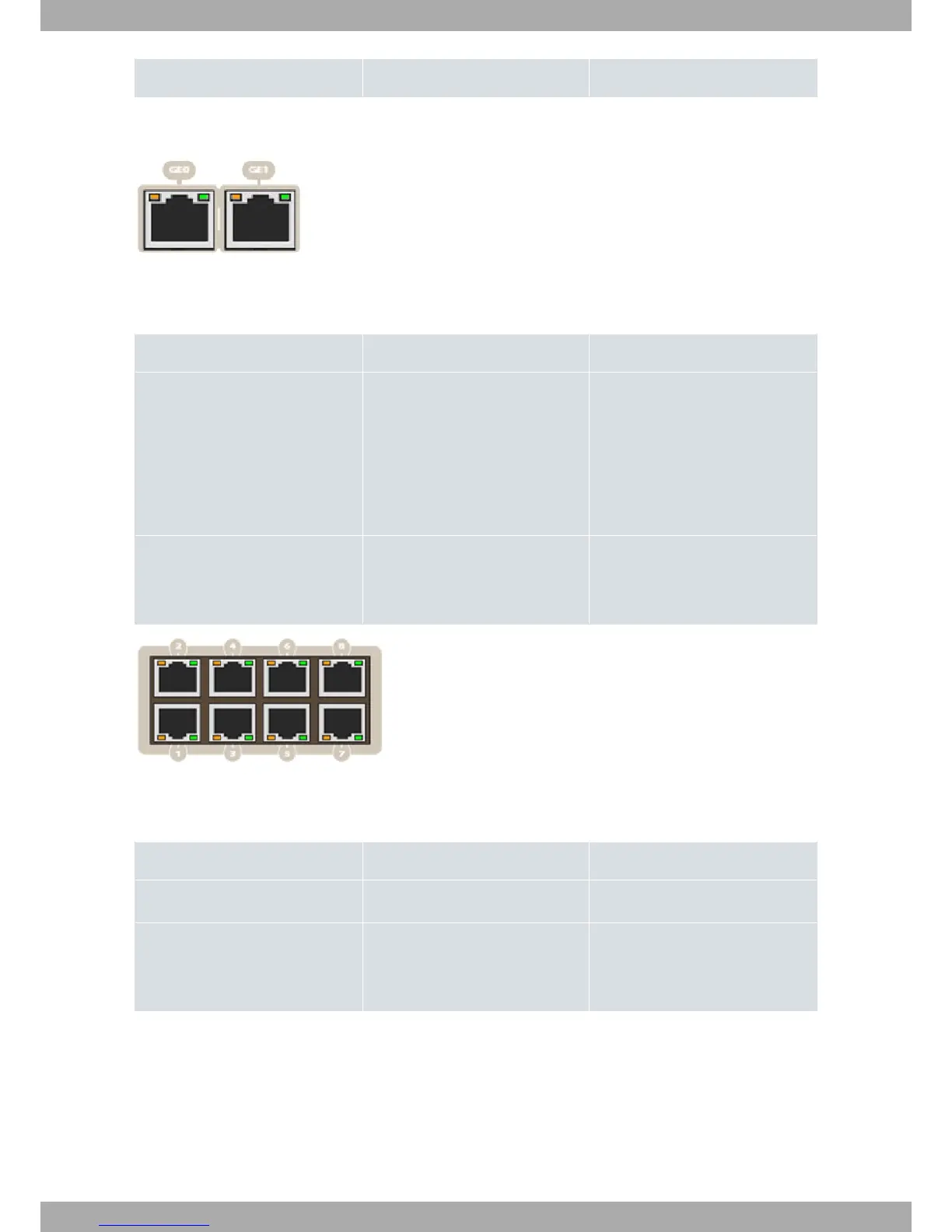

Fig. 3: Gigabit ethernet interface LEDs
Below, you will find information on the LEDs associated to the Gigabit Ethernet interfaces:
Gigabit ethernet interface LEDs table
LED Description State
Orange Ethernet connection speed Off -> Link has not been detected
Orange ->
10 Mbps: Flashes once
100 Mbps: Flashes twice
1000 Mbps: Flashes three times
Green Ethernet (link) connection established Off -> Link has not been detected
Green -> Flashes depending on the
activity.
Fig. 4: Switch Ethernet interface LEDs
Below, you will find information on the LEDs associated to the Switch Ethernet interface:
Switch ethernet interface LEDs table
LED Description State
Orange PoE activity
Please see manual "ALU-Dm776-I
Power Over Ethernet" .
Green Ethernet (link) connection established Off -> Link has not been detected
Green -> Link detected. Blinking: con-
nection data activity.
3.1.2 Rear Panel
The following figure shows the rear panel.
Alcatel-Lucent Enterprise
3 Components and Power Supply
OA58XX Router 7
