and handled. Open up the device. To do this, you need to remove the top cover which is secured through
screws located on the rear and side of the device.
(3) Once the screws have been removed, slide the flap towards the rear panel and lift it. Place it in a safe location.
(4) Locate the hard disk area and the SATA connector.

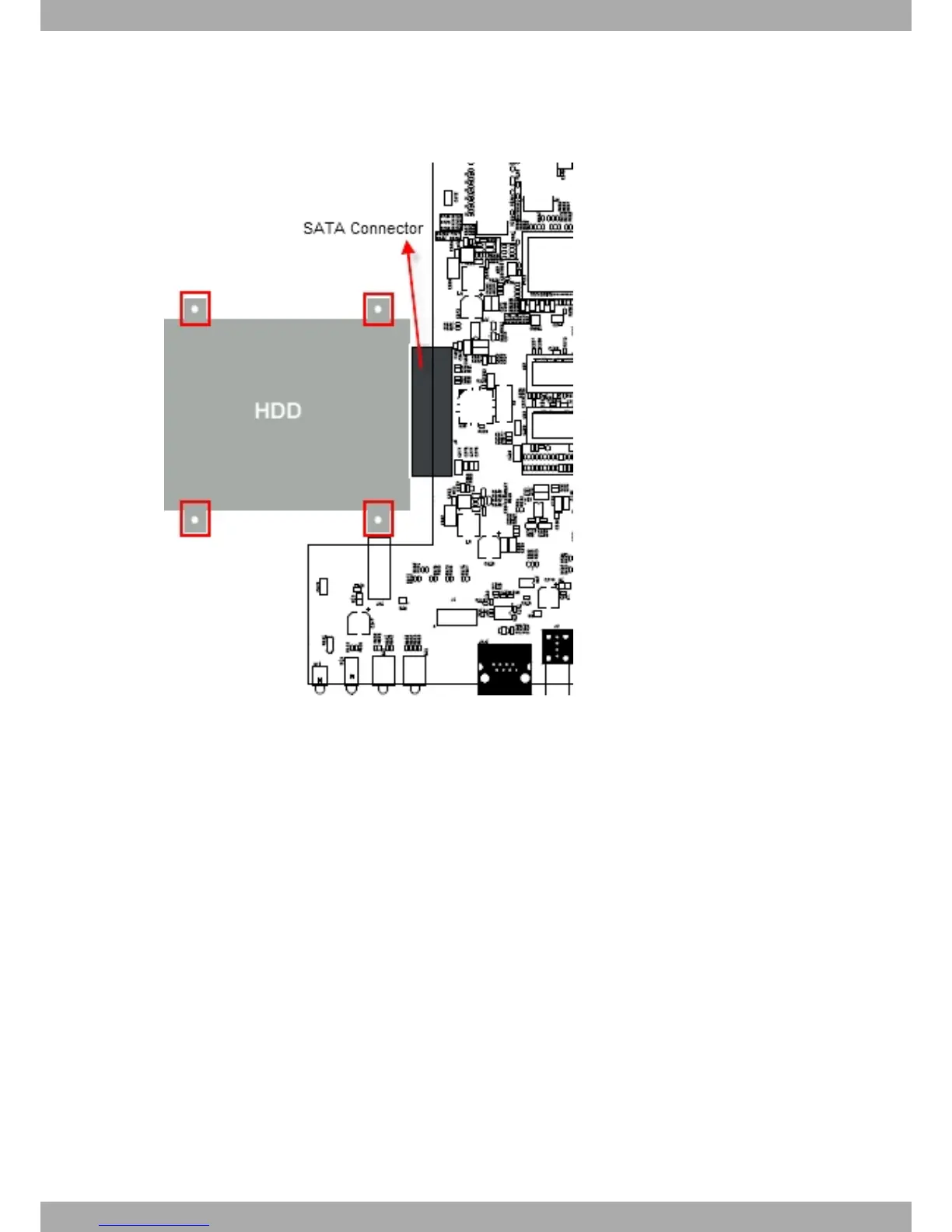

Fig. 43: SATA connector and standoffs for the hard disk
(5) Screw the hard disk supplied to the auxiliary metal plate.
(6) Connect the hard disk and place the metallic flange carefully over the standoff posts located in the device
chassis. This operation must be carried out carefully, without forcing any piece or part of the device.
(7) Screw the plate to the posts using four screws. Tighten them firmly.
(8) Close the device with the cover. Secure the cover with the screws.
(9) Connect and switch on the device, as described in section Connecting on page 19. Should you detect any prob-
lems, switch off the device and make sure that the above steps have been carried out correctly. If the problem
persists, please contact your usual supplier.
(10) Check that, during startup, the HD LED located on the device’s front panel is flashing.
3.8.2 Procedure to install a flash memory expansion USB
To install a flash memory expansion USB, please follow these steps:
(1) Switch off the device and remove the data cables, as described in section Disconnecting on page 19.
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled. Open up the device. To do this, you need to remove the top cover which is secured through
screws located on the rear and side of the device.
(3) Once the screws have been removed, slide the cover towards the rear panel and then remove it by lifting it.
Place it in a safe place.
(4) Locate the USB connector and connect the memory stick supplied .
3 Components and Power Supply Alcatel-Lucent Enterprise
28 OA58XX Router
