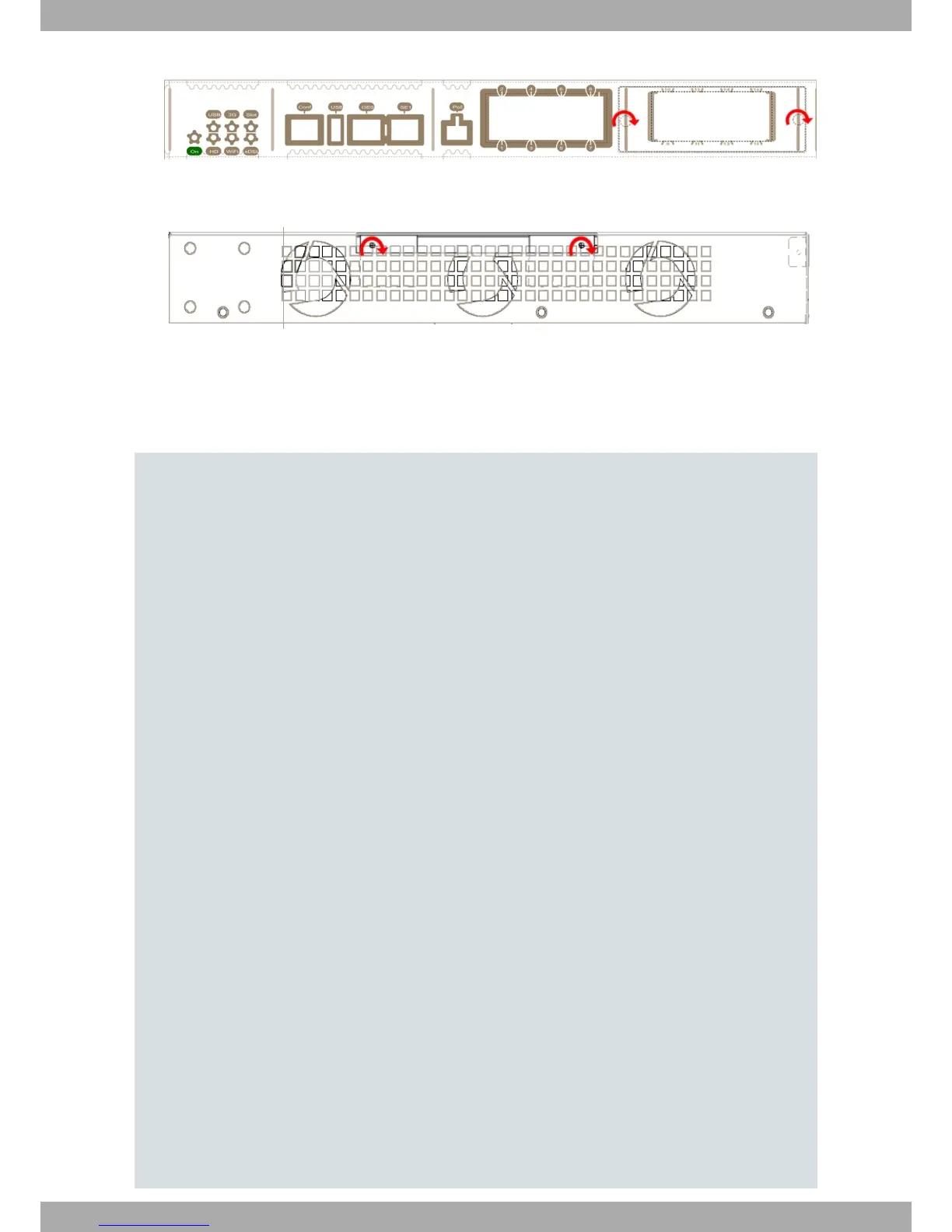

Fig. 13: Reposition the cover on SLOT 1
(10) Reposition the top panel flap and screw it into place using the screws. Please see Fig. 14 on page 11.
Fig. 14: Rearrange the screws on the top panel flap
(11) Connect and switch on the device, as described in section Connecting on page 19. Should you detect any prob-
lems, switch off the device and make sure that the above steps have been carried out correctly. If the problem
persists, please contact your usual supplier.
(12) Connect a terminal to the console and check that the device detects the expansion board.
**************************************************
**************************************************
**************************************************
BIOS CODE DUMP....................
BIOS DATA DUMP.....
End of BIOS dump
FLASH BIOS CODE VERSION: 02.01 Mar 6 2013 17:59:56 L1
Current date: Mar 27 2013, Wednesday Current time: 12:56:57
System Info:
PCB:0x128 GPPORCR:0x00280000 PVR:0x80212051 SVR:0x80EC0011
CLKs(KHz): CCB=393216 CPU0=786432 CPU1=786432 DDR(clk)=327680 LBUS=49152
Watchdog: Enabled
MMU Mode: Dynamic
ICache: ON; DCache: ON Write-Back; L2Cache: ON
Mem Info:
DRAM size: 512 Megabytes
BANK 0: 512 Megabytes (detected)
FLASH: 65024 KB.
NVRAM: 128 KB.
EEPROM: 2048 Bytes.
Devices:
GIGABIT ETHERNET 1
GIGABIT ETHERNET 2
LAN OVER SWITCH
SWITCH(16) 10/100 CARD 0x18
POE CARD 1
SECURITY ENGINE
Slot 1 - PCI device: PowerPC processor, Host
(Bus: 10, Device: 0, Function: 0)
(Vendor: 0x1957, Device: 0x0100)
(Subs. Vendor: 0x0000, Subs. Device: 0x0000)
Slot 1 - PCI device: PCI-to-PCI bridge
(Bus: 11, Device: 0, Function: 0)
(Vendor: 0x10B5, Device: 0x8112)
(Subs. Vendor: 0x0000, Subs. Device: 0x0000)
Slot 1 - PCI device: bridge
(Bus: 12, Device: 14, Function: 0)
(Vendor: 0x1057, Device: 0x18C1)
(Subs. Vendor: 0x5444, Subs. Device: 0x1700)
Alcatel-Lucent Enterprise
3 Components and Power Supply
OA58XX Router 11
