4.2 Supply of Pneumatic Source
IMPORTANT:
(1) After connecting with the pneumatic supply source, adjust working pressure to read
5kgf/cm
2
by viewing the pressure gauge.
(2) Pay attention to check water level in reservoir every day and drain water regularly
to avoid overflow.
(3) To carry out pressure adjustment pull out the knob slightly, turns clockwise for higher
pressure or turns counter-clockwise for lower pressure.

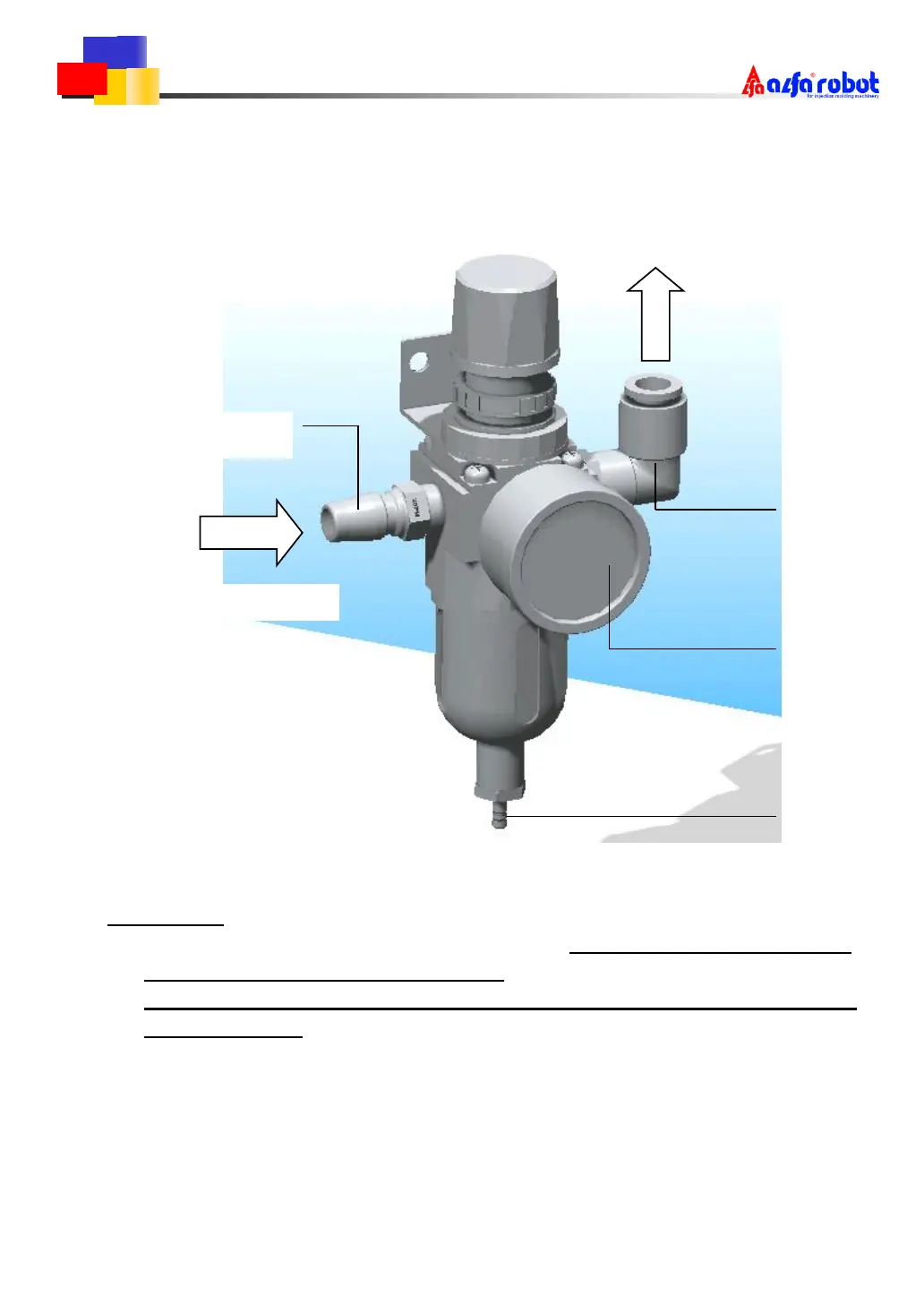

Tube Fitting
– Outlet
Water
Drainage
Tube Fitting– Inlet
Input Pressure 5kgf/cm²
Output Pressure 5kgf/cm²
Pressure
Gauge
