40
4.4 Adjustment while Mould Changing
SAFETY ITEMS
MUST BE
FULLY
OBSERVED
AFTER COMPLETION OF MOULD CHANGE AND WISH
TO ADJUST THE ROBOT, FOLLOWING SAFETY
RULES MUST BE FULLY OBSERVED.
(1) Do not adjust the robot unless you are a fully trained person.
(2) Switch the I.M.M. to Manual mode and move the platen to full open position,
and then turns power of the I.M.M. to OFF.
(3) Turns power OFF and disconnects pneumatic supply source of the robot.
Important: Unless above actions are actually carried out, do not adjust the robot.

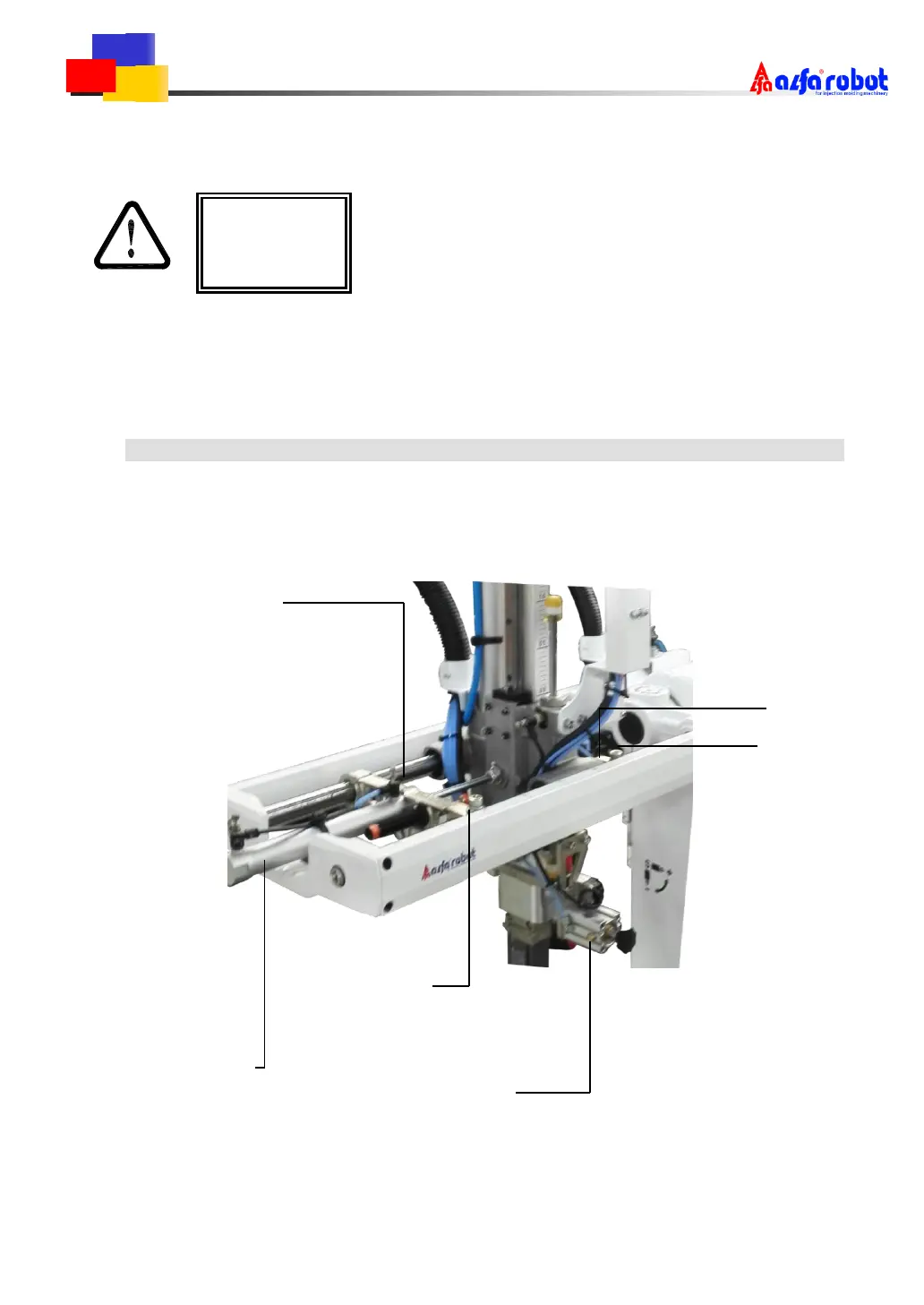

4.4.1 Adjustment of Crosswise Stroke
Crosswise Cylinder Safety Lock Cylinder
Crosswise
Stroke End
Stopper
Crosswise Cylinder
Mounting Plate
Crosswise
Stroke
End Set
Screw
Set screw of
Draw-bench cylinder
fixed board
To Next Page
