alfa robot P650 - Arm Pivoting for Mold Changing

43

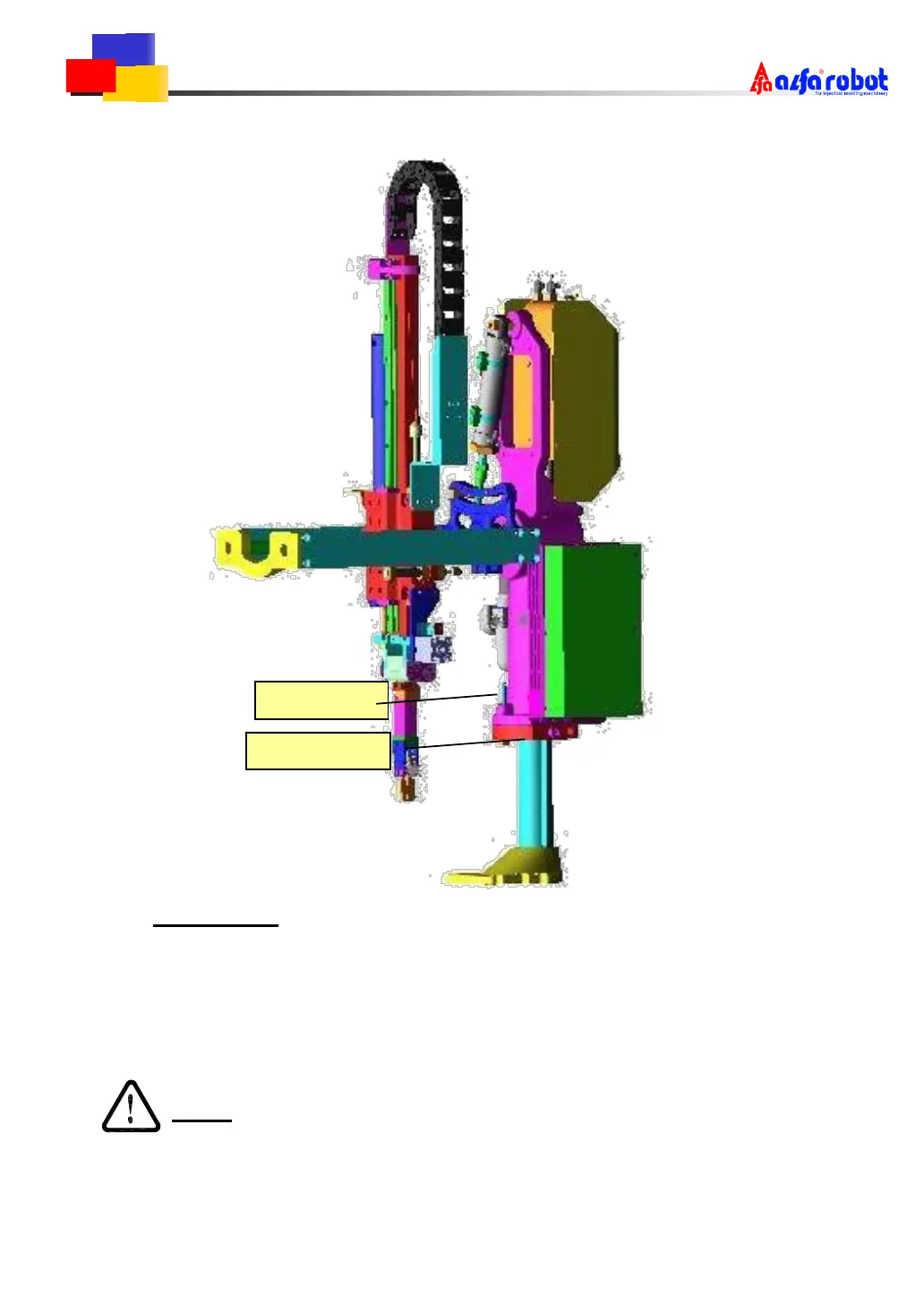

4.4.4 Arm Pivoting for Mold Changing
ROCEDURES:
1.Loosen the screws on location ring
2.Pull Location Pin,swing round the arm ,then change the Mould.
3.Reset the armand location pin.
4.Tighten the screw.
5. Adjust strokes according to procedures as stipulated in above paragraphs 4.4.1,
4.4.2 and 4.4.3.
NOTE: DURING MOLD CHANGING, PLEASE BE CAREFUL DO
NOT COLLIDE WITH ROBOT.
Locking Screw
Location Pin
