Fan
Removing the small fan
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
About this task

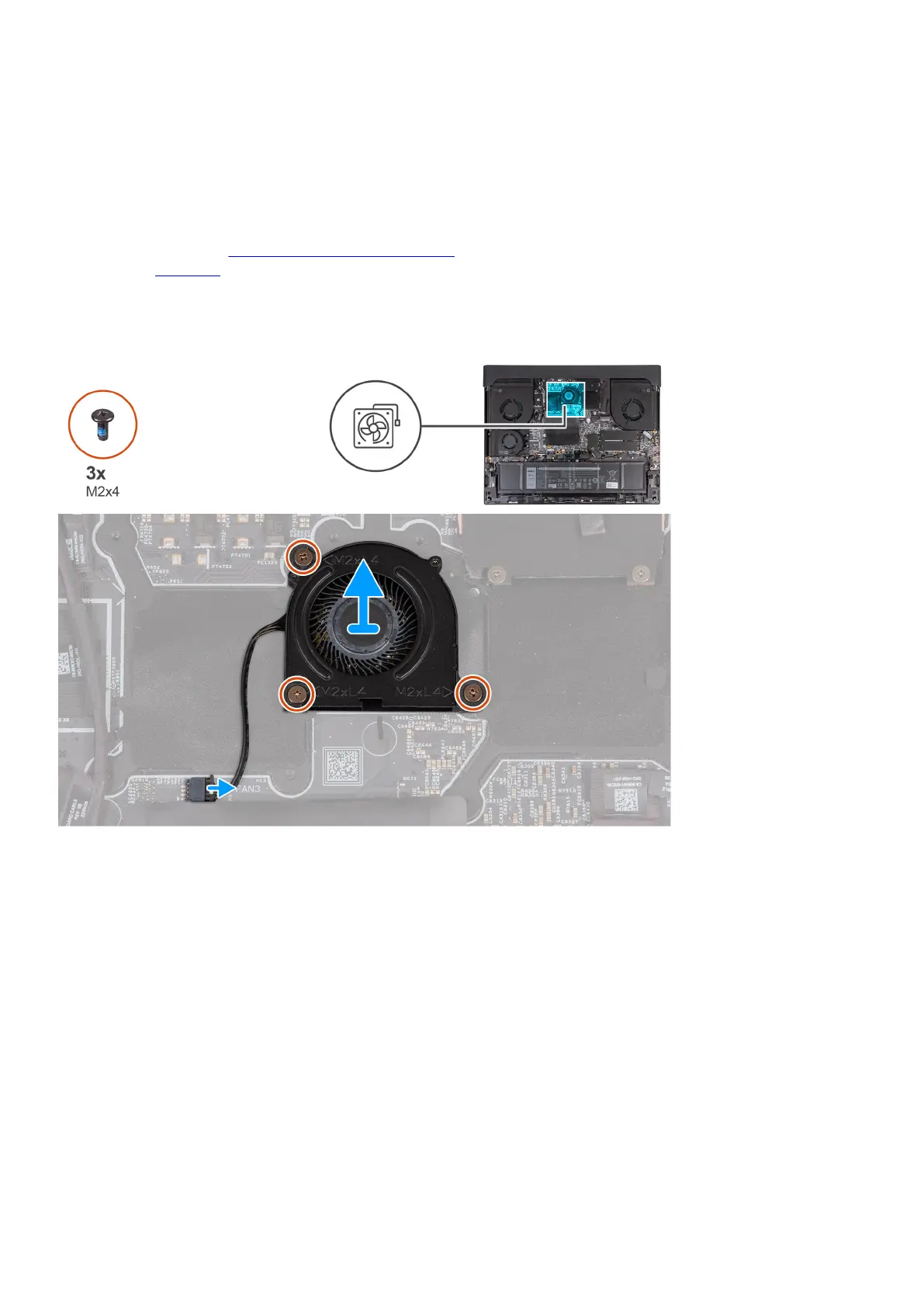

The following image(s) indicate the location of the small fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the fan cable from the system board.
2. Remove the three screws (M2x4) that secure the fan to the palm-rest and keyboard assembly.
3. Lift the fan from the system board.
Installing the small fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the rear-I/O cover and provides a visual representation of the installation procedure.
