Steps
1. Peel the tape that secures the display-cable connector latch to the system board.
2. Open the latch and disconnect the display cable from the system board.
3. Peel the display cable off the system board and remove the display cable from the slot on the palm-rest and keyboard assembly.
4. Remove the two screws (M2x3) that secure the power-adapter port-bracket to the palm-rest and keyboard assembly.
5. Lift the power-adapter port bracket off the palm-rest and keyboard assembly.
6. Disconnect the power-adapter port-cable from the system board.
7. Peel the power-adapter port-cable from the system board.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

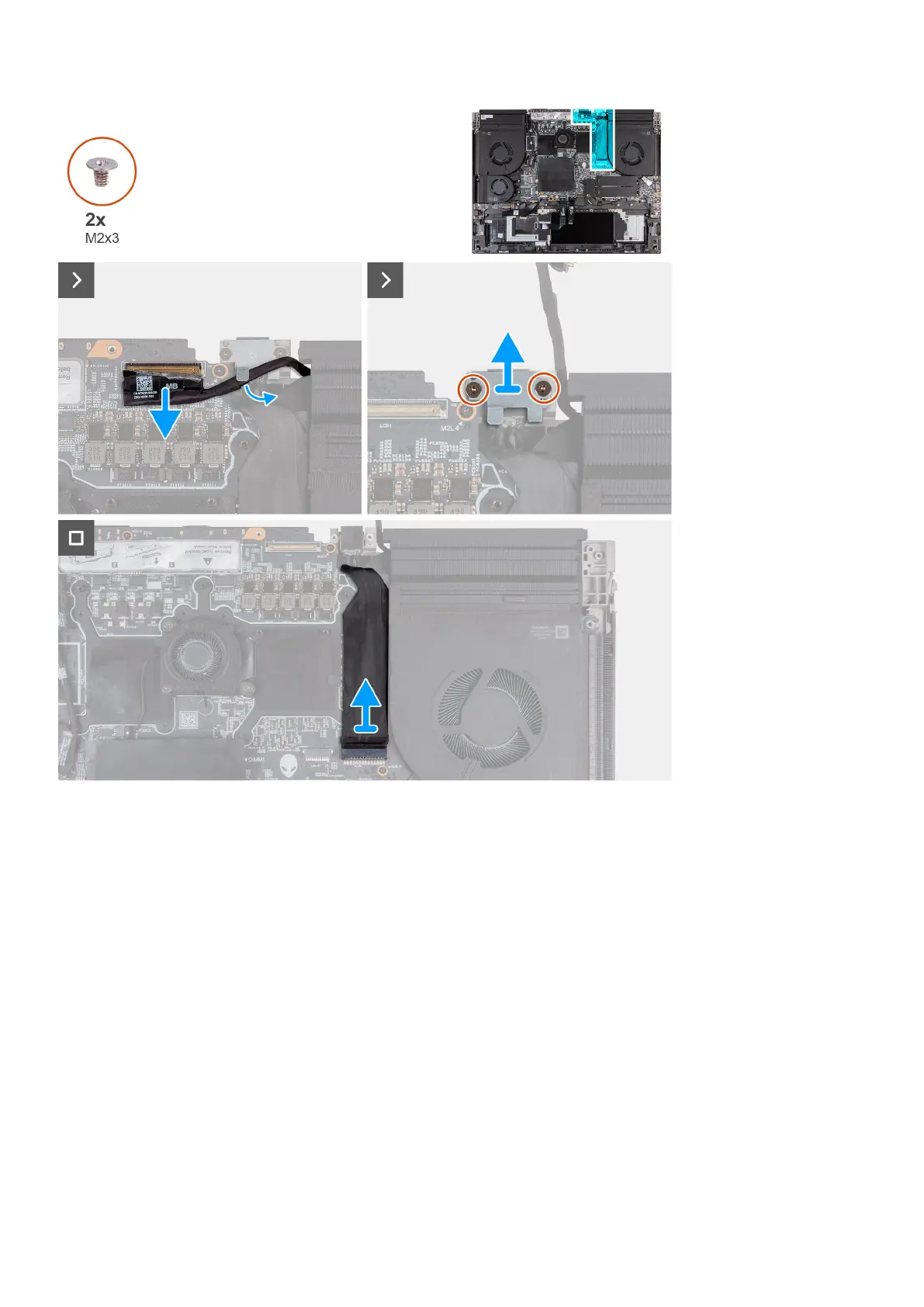

The following image(s) indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
