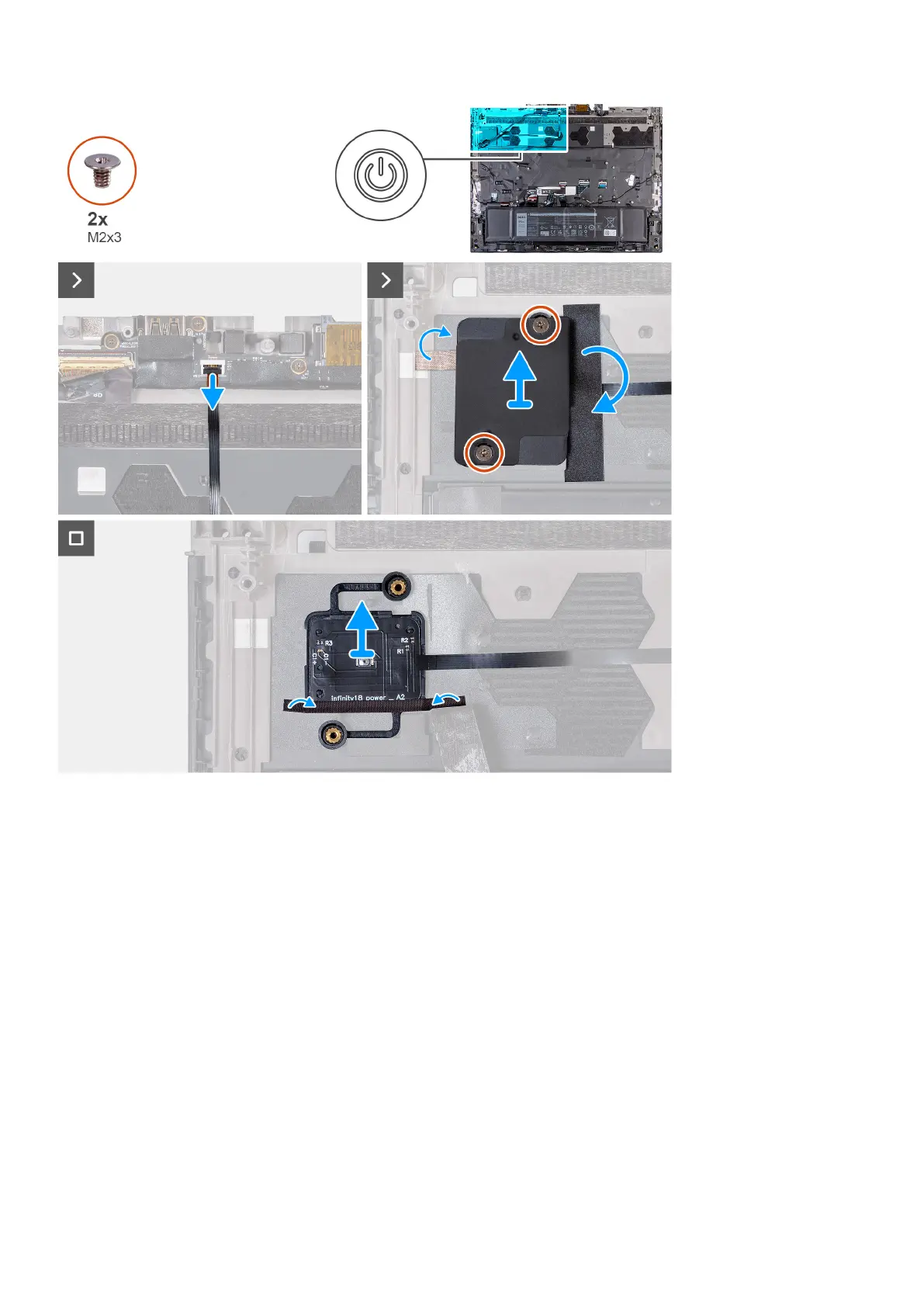

Steps
1. Open the latch and disconnect the power-button cable from the palm-rest and keyboard assembly.
2. Remove the two screws (M2x3) that secure the power-button bracket to the palm-rest and keyboard assembly.
3. Peel the tapes securing the power-button bracket to the palm-rest and keyboard assembly.
4. Lift the power-button bracket off the power button.
5. Peel the tape securing the power button to the palm-rest and keyboard assembly.
6. Lift the power button, along with its cable, off the palm-rest and keyboard assembly.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power button and provides a visual representation of the installation procedure.
72
