Steps

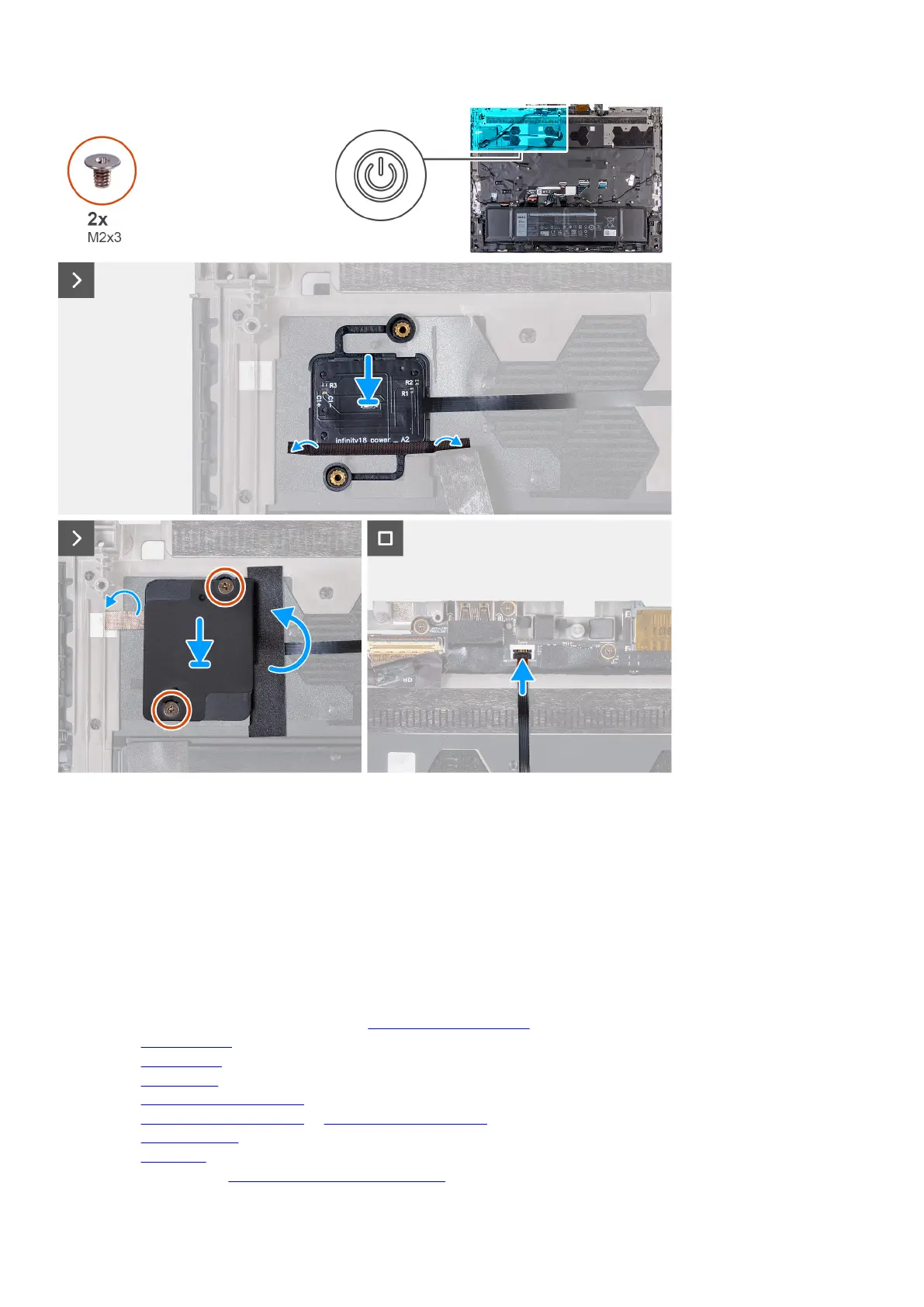

1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Adhere the tape securing the power button on the palm-rest and keyboard assembly.
3. Align the screw holes on the power-button bracket with the screw holes on the palm-rest and keyboard assembly.
4. Replace the two screws (M2x3) that secure the power-button bracket to the palm-rest and keyboard assembly and adhere the
tape.
5. Adhere the tapes securing the power-button bracket to the palm-rest and keyboard assembly.
6. Connect the power-button cable and close the latch to secure the cable.
Next steps
1. Follow the procedure from step 6 to step 25 in
Installing the system board.
2. Install the rear-I/O cover.
3. Install the top heat-sink.
4. Install the wireless card.
5. Install the M.2 2230 solid-state drive in slot three and four.
6. Install the M.2 2280 solid-state drive or M.2 2230 solid-state drive in slot one and two, whichever applicable.
7. Install the
memory module.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
