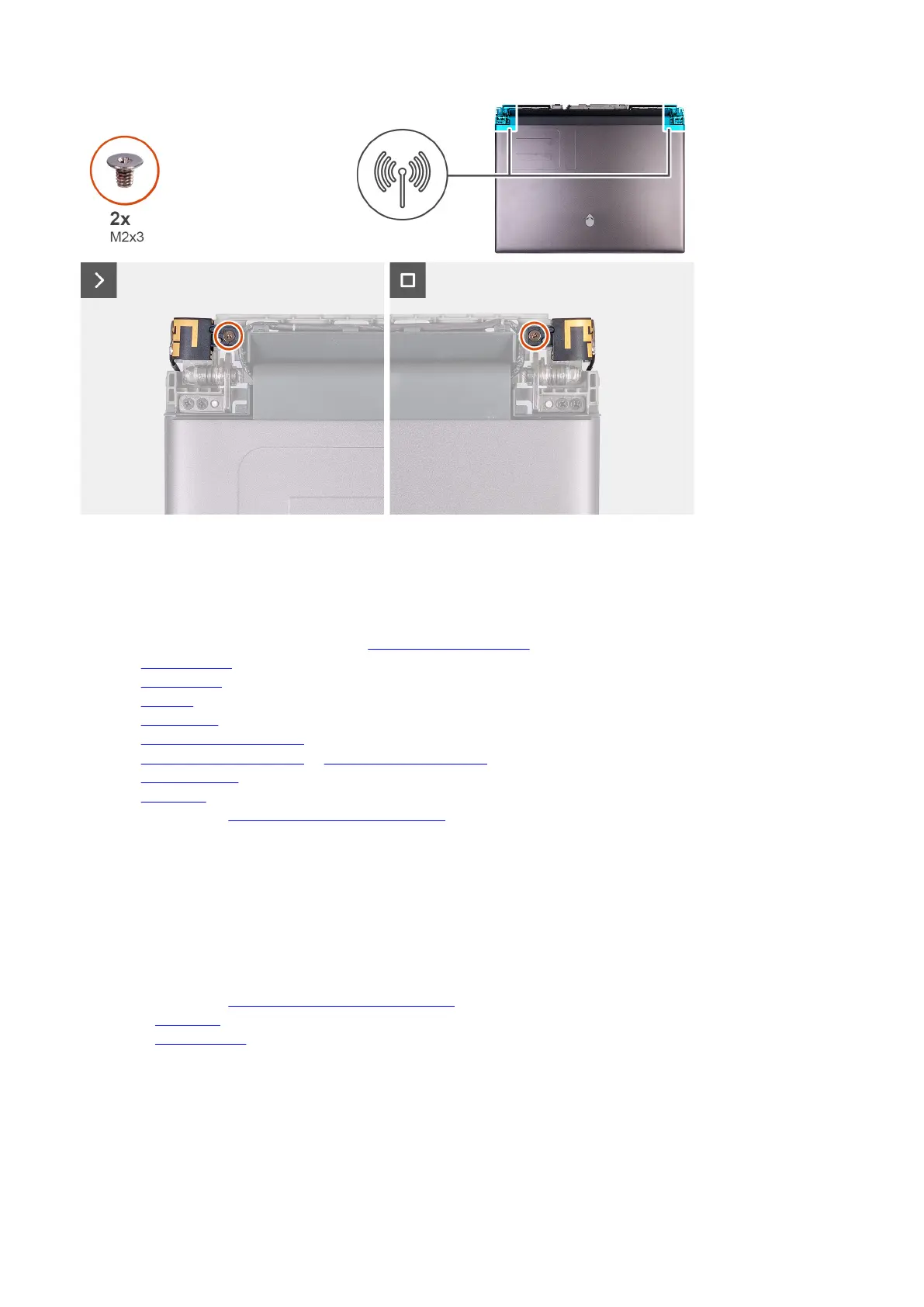

2. Align the screw holes on the antenna holder with the screw holes on the display assembly.
3. Replace the two screws (M2x3) that secure the antenna holder to the display assembly.
4. Turn over the computer.
Next steps
1. Follow the procedure from step 6 to step 25 in
Installing the system board.
2. Install the rear-I/O cover.
3. Install the top heat-sink.
4. Install the
small fan.
5. Install the wireless card.
6. Install the M.2 2230 solid-state drive in slot three and four.
7. Install the M.2 2280 solid-state drive or M.2 2230 solid-state drive in slot one and two, whichever applicable.
8. Install the memory module.
9. Install the
base cover.
10.Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear-I/O cover.
About this task
The following image(s) indicate the location of the display assembly and provides a visual representation of the removal procedure.
