Steps
1. Turn the system-board assembly over.
2. Remove the two screws (M2x3) that secure the audio board to the system-board assembly.
3. Slide and remove the audio board from the system-board assembly.
Installing the audio board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

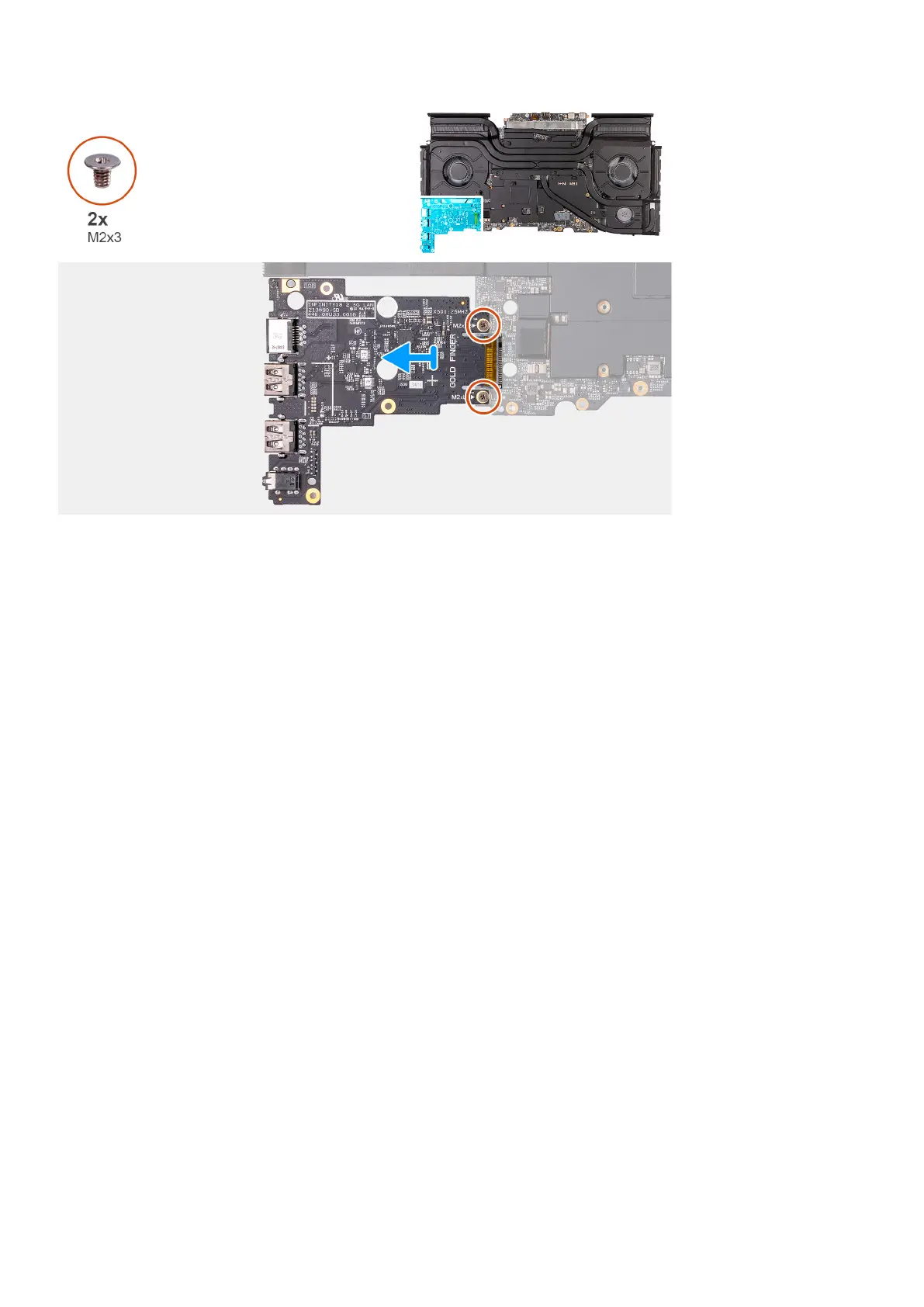

The following image(s) indicate the location of the audio board and provides a visual representation of the installation procedure.
