14. Lift the Type-C bracket off the system board.
15.Disconnect the power-adapter port-cable from the system board.
16.Peel the power-adapter port-cable from the system board.

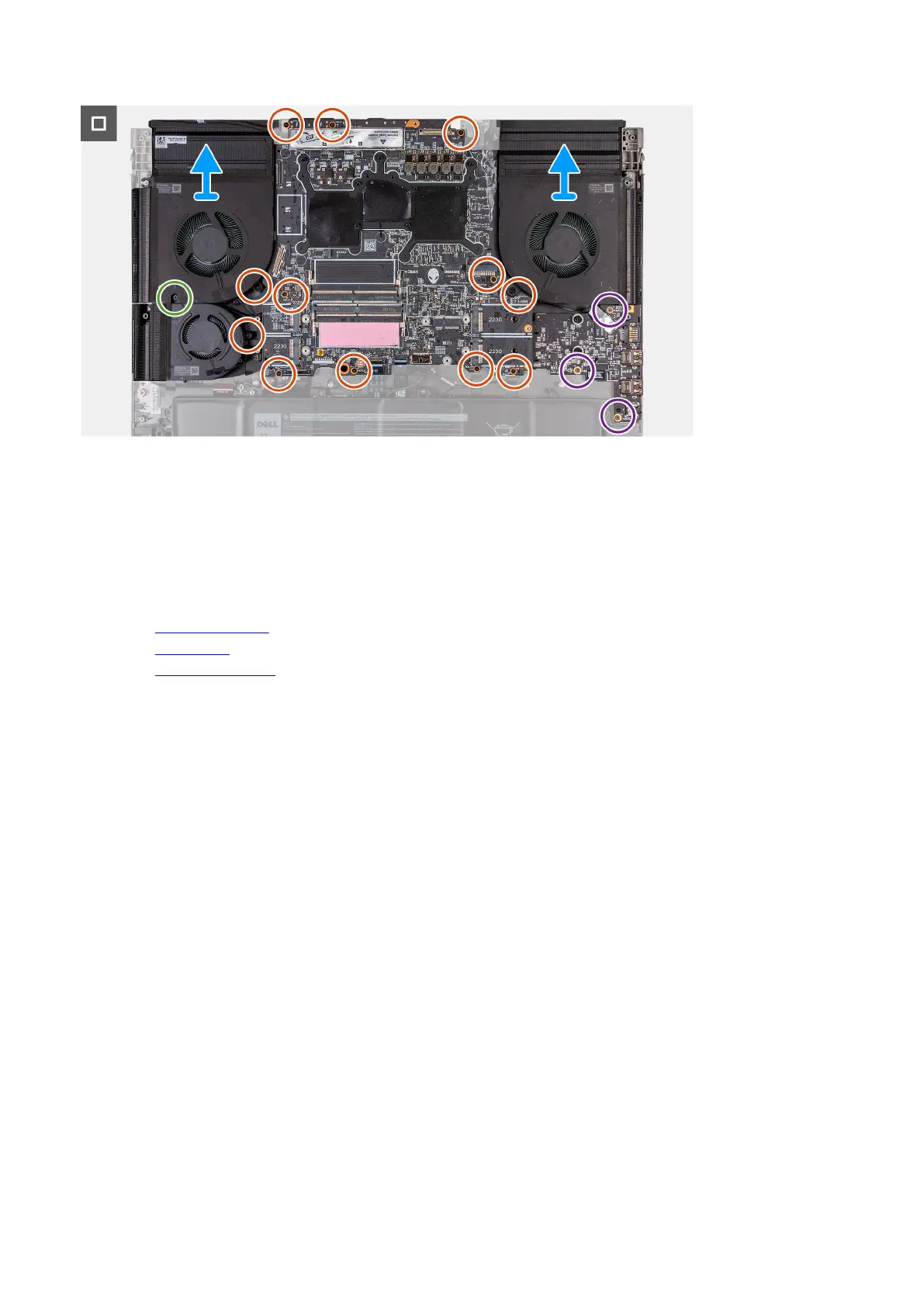

17. Remove the three screws (M2x3) that secure the audio board to the palm-rest and keyboard assembly.
18.Remove the one screw (M2x6) that secures the left fan to the palm-rest and keyboard assembly.
19.Remove the twelve screws (M2x4) that secure the system board to the palm-rest and keyboard assembly.
20.After performing all the above steps, you are left with the system board.
21. Lift and turn the system board over.
22.Remove the
heat-sink assembly.
23.Remove the audio board.
24.Remove the USB Type- C board.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the connectors on your system board.
