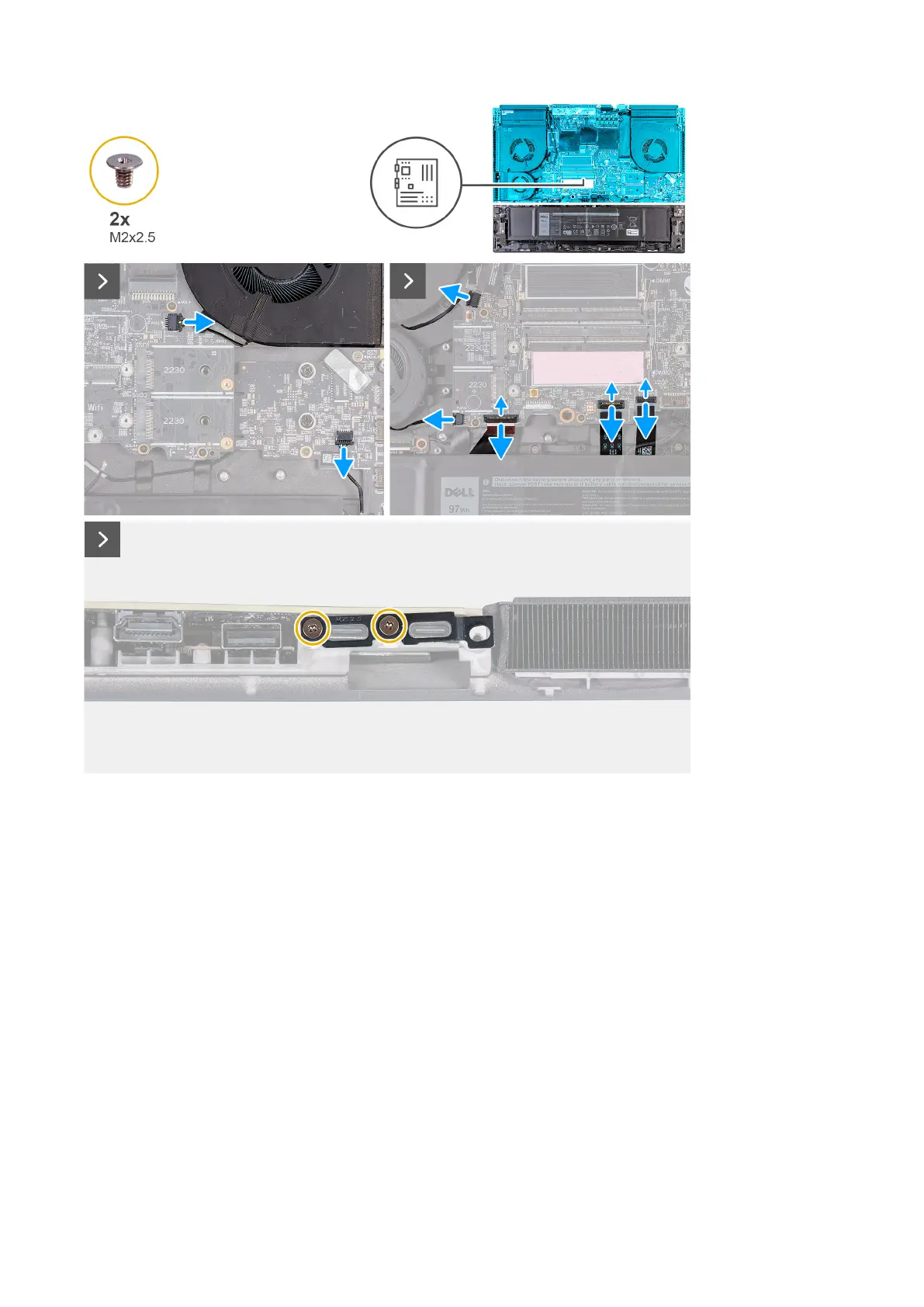

7. Disconnect the right-fan cable from the system board.
8. Disconnect the speaker cable from the system board.
9. Disconnect the two left-fan cables from the system board.
10.Open the latch and disconnect the left I/O board cable from the system board.
11. Open the latch and disconnect the keyboard-controller board and keyboard backlight cable from the system board.
12. Open the latch and disconnect the touchpad from the system board.
13. Remove the two screws (M2x2.5) that secure the Type-C bracket to the system board.
