Alienware P51E - Removing the USB Type-C board

Steps
1. Connect the audio board to the system-board assembly.
2. Align the screw holes on the audio board with the screw holes on the system-board assembly.
3. Replace the two screws (M2x3) that secure the audio board to the system-board assembly.
4. Turn the system-board assembly over.
Next steps
1. Follow the procedure from step 6 to step 25 in
Installing the system board.
2. Install the rear-I/O cover.
3. Install the
top heat-sink.
4. Install the small fan.
5. Install the wireless card.
6. Install the M.2 2230 solid-state drive in slot three and four.
7. Install the
M.2 2280 solid-state drive or M.2 2230 solid-state drive in slot one and two, whichever applicable.
8. Install the memory module.
9. Install the base cover.
10.Follow the procedure in After working inside your computer.
USB Type-C board
Removing the USB Type-C board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the battery.
3. Remove the base cover.
About this task

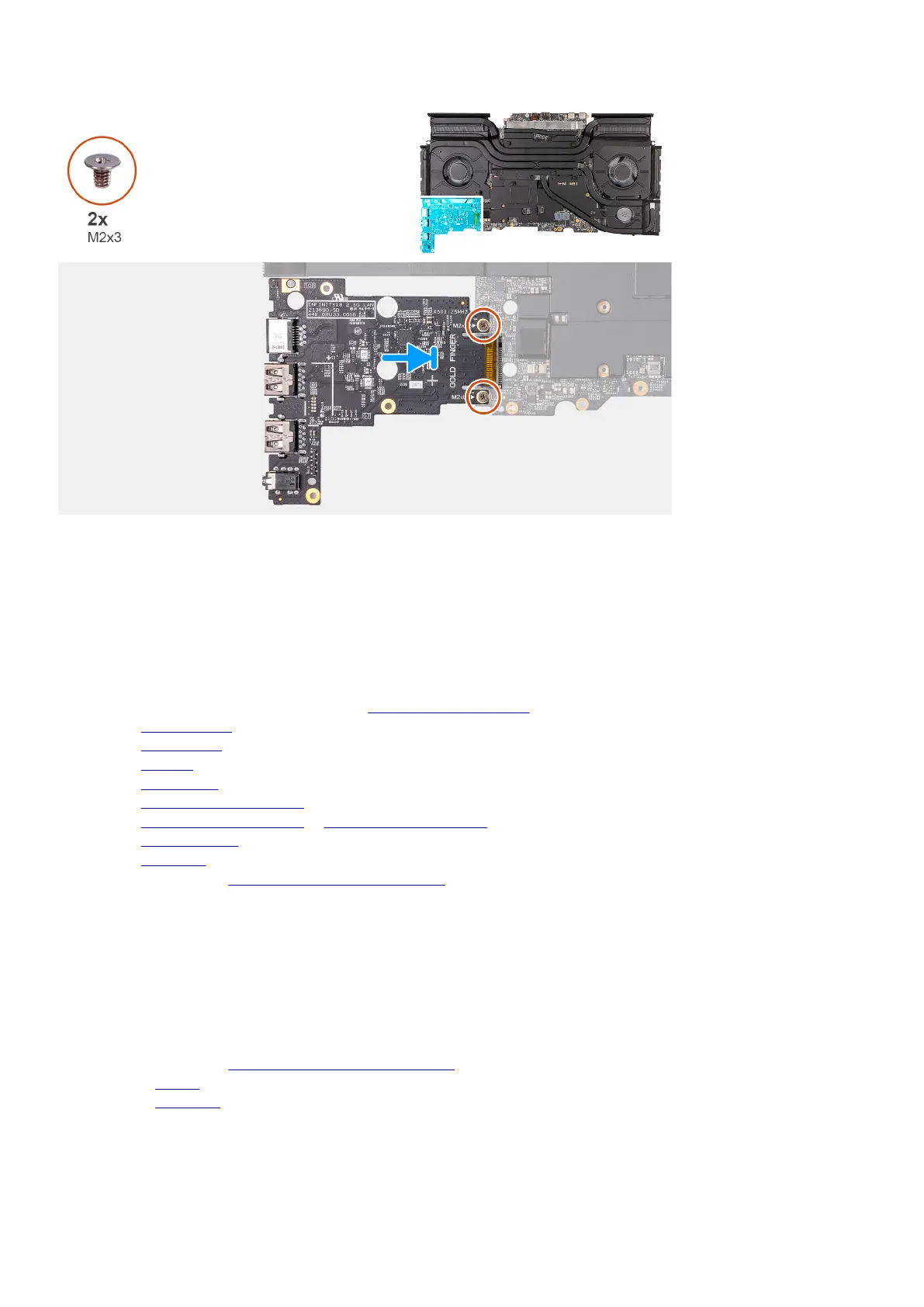

The following image(s) indicate the location of the USB Type-C board and provides a visual representation of the removal procedure.
