Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

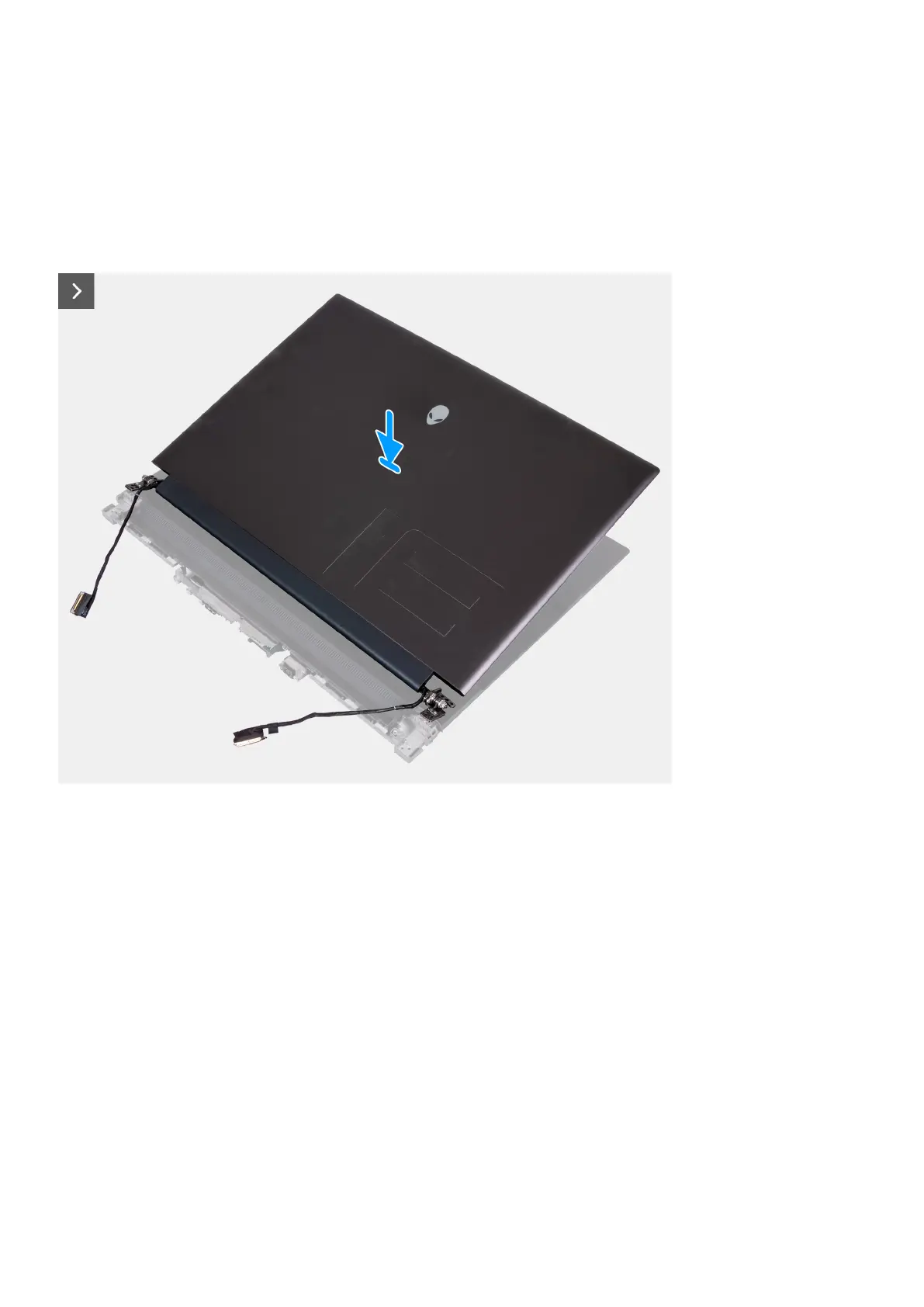

The following image(s) indicate the location of the antennas and provides a visual representation of the installation procedure.
Steps
1. Place the display assembly on the palm-rest and keyboard assembly.
2. Route the display cable and camera cable on the routing guides on the display assembly.
48
