Steps

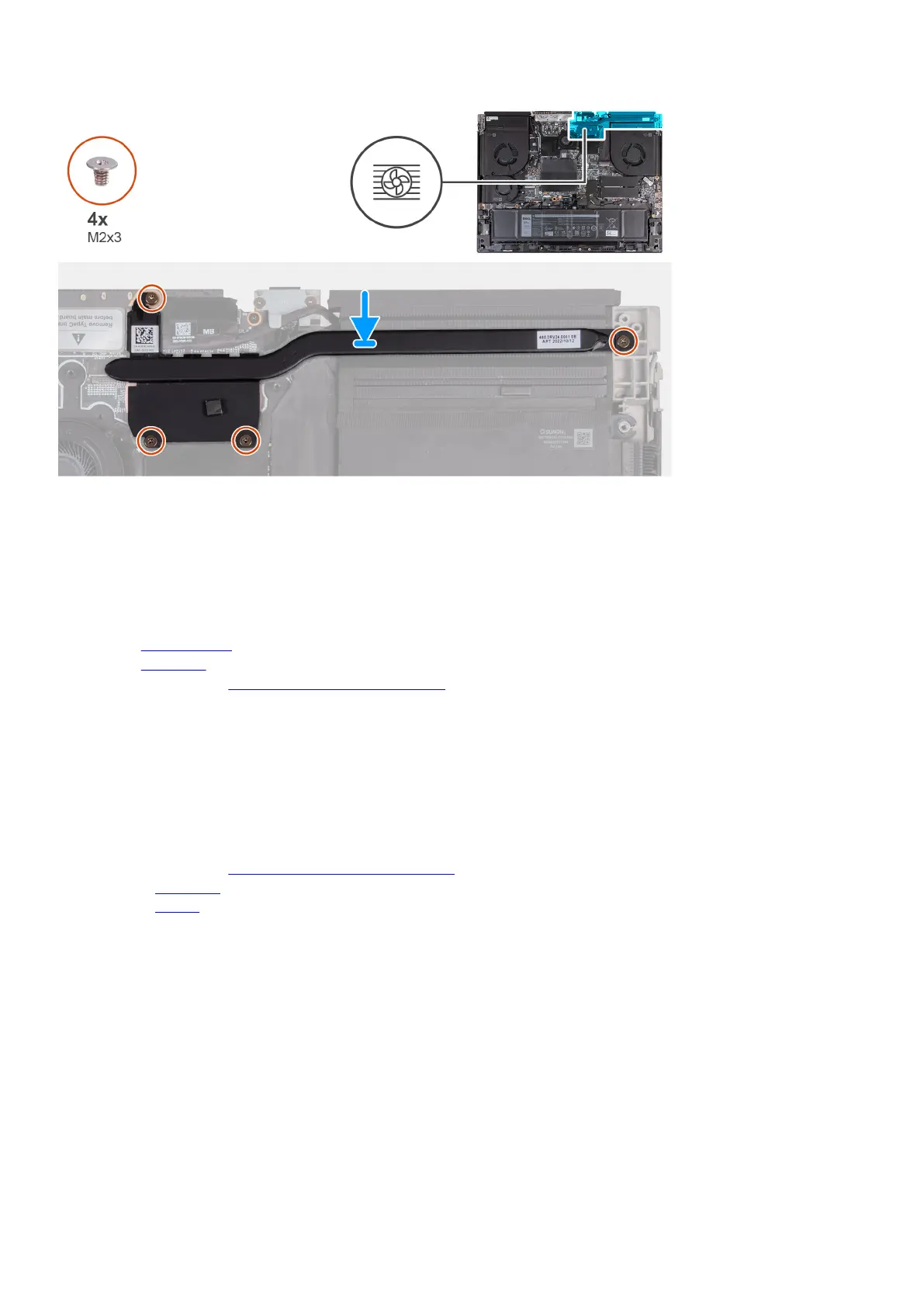

1. Place the top heat-sink on the system board.
2. Align the screw holes on the top heat-sink to the screw holes on the system board.
3. Replace the four screws (M2x3) that secure the top heat-sink to the system board.
Next steps
1. Install the rear-I/O cover.
2. Install the
base cover.
3. Follow the procedure in After working inside your computer.
Keyboard-controller board
Removing the keyboard-controller board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the removal
procedure.
