About this task

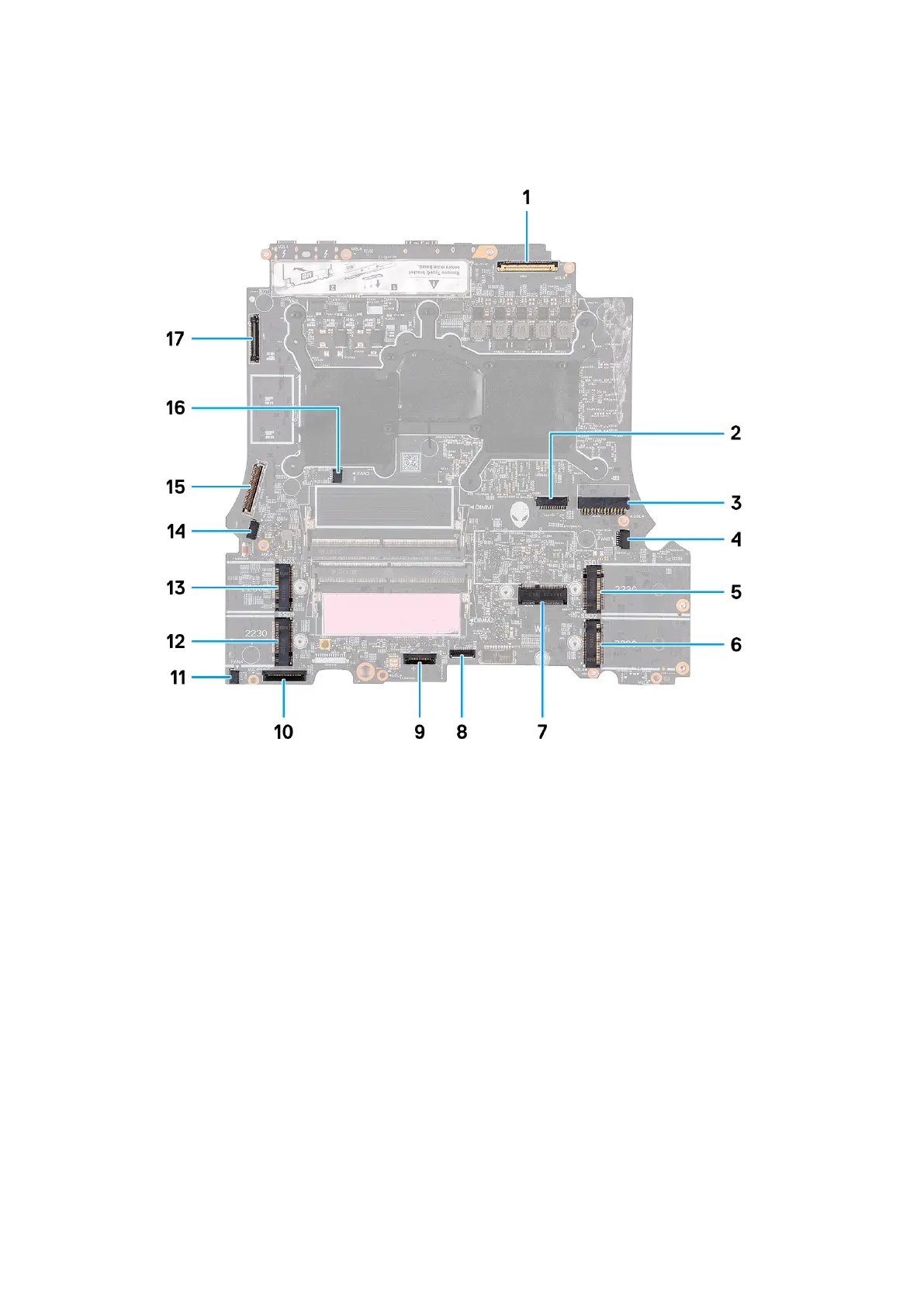

The following image indicates the connectors on your system board.
1. Display cable
2. Alien head LED-cable
3. Power-adapter port cable
4. Right-fan cable
5. M.2 card slot for solid-state drive 1
6. M.2 card slot for solid-state drive 2
7. Wireless-card slot
8. Touchpad connector
9. Keyboard controller and keyboard backlight
10.Left I/O board cable
11. Left-fan cable 1
12. M.2 card slot for solid-state drive 4
13. M.2 card slot for solid-state drive 3
14. Left-fan cable 2
15.Rear I/O board cable
16.Left-fan cable 3
17. Camera cable
The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
55
