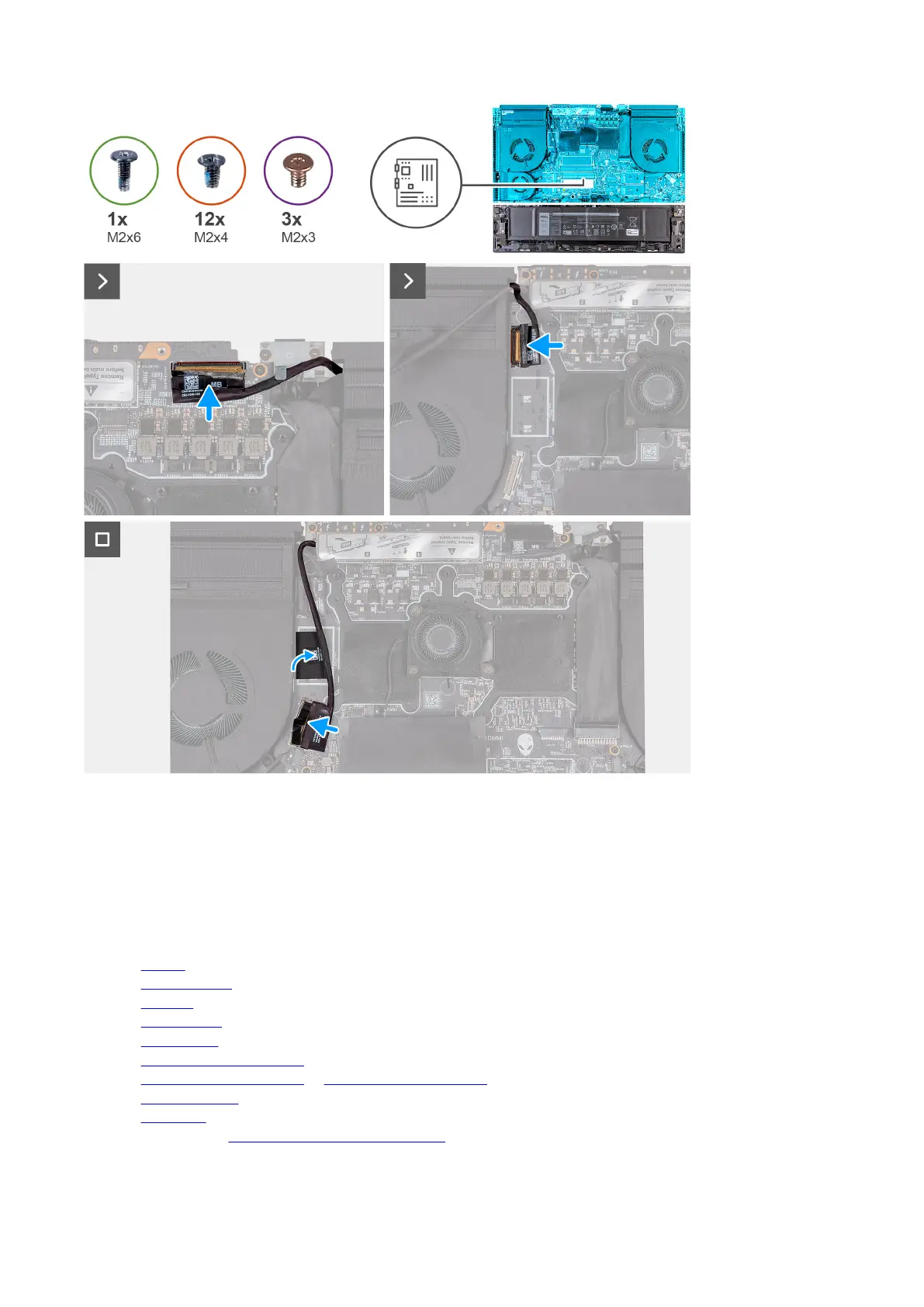

21. Connect the display cable to the system board and close the latch to secure the cable.
22.Adhere the tape that secures the display-cable connector latch to the system board.
23.Connect the camera cable to the system board.
24.Adhere the tape securing the camera cable to the system board to secure the cable.
25.Connect the rear I/O board cable to the system board.
26.Adhere the tapes securing the rear I/O board cable to the system board.
Next steps
1. Install the
battery.
2. Install the rear-I/O cover.
3. Install the small fan.
4. Install the top heat-sink.
5. Install the wireless card.
6. Install the M.2 2230 solid-state drive in slots three and four.
7. Install the M.2 2280 solid-state drive or M.2 2230 solid-state drive in slots one and two, whichever applicable.
8. Install the memory module.
9. Install the
base cover.
10.Follow the procedure in After working inside your computer.
