Steps

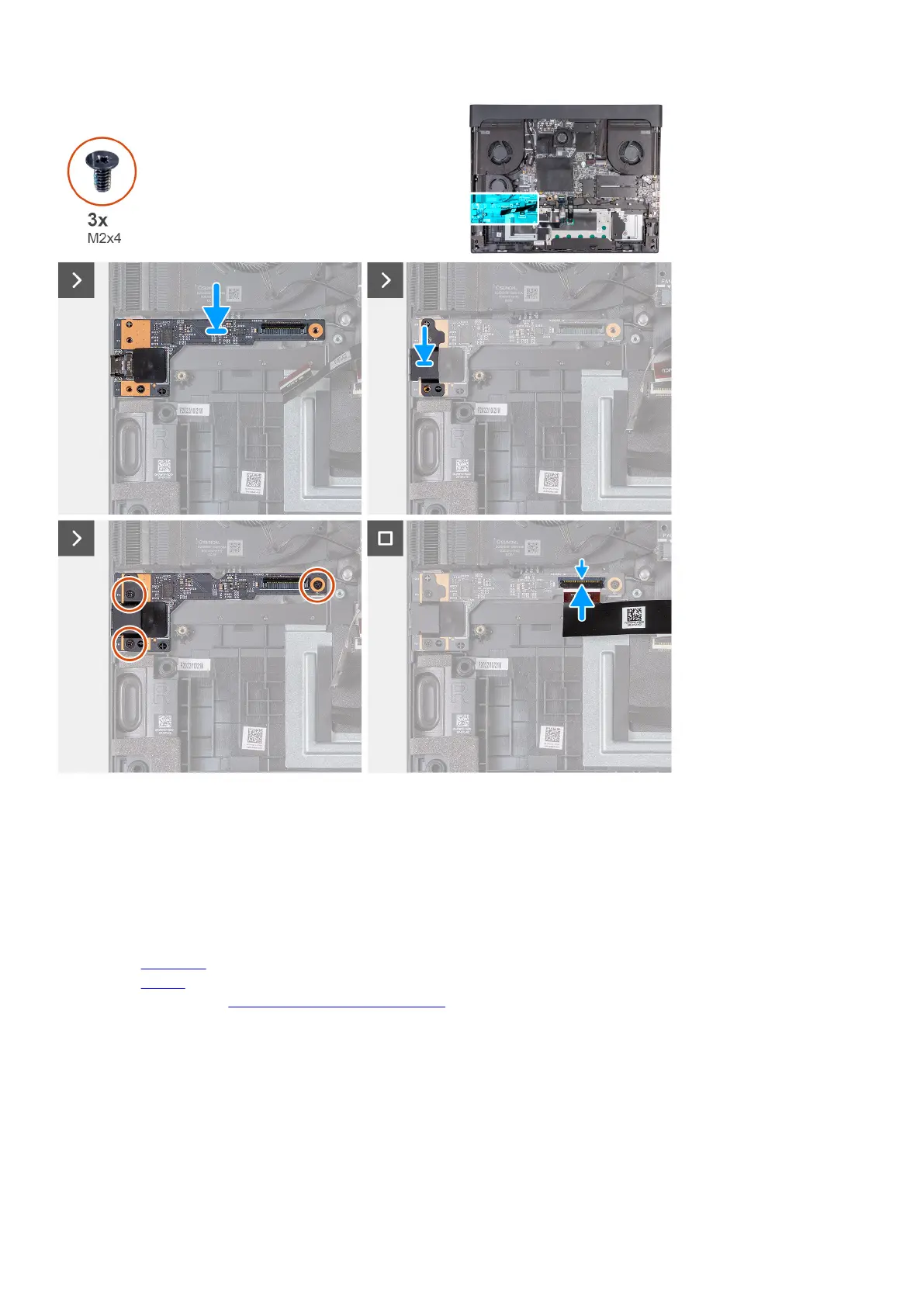

1. Align the USB Type-C board with the screw holes on the system-board assembly.
2. Align the USB Type-C shield on the left side with the screw holes on the system-board assembly.
3. Replace the three screws (M2x4) that secure the USB Type-C board to the system-board assembly.
4. Connect the USB Type-C I/O board cable connector to the system-board assembly and close the latch to secure the cable.
Next steps
1. Install the
base cover.
2. Install the battery.
3. Follow the procedure in After working inside your computer.
70
