ZYNQ FPGA Development Board AX7021 User Manual
l
Amazon Store: https://www.amazon.com/alinx
12 / 54
The main parameters of the PL logic part are as follows:
 LogicCells: 85K
 Look-up-tables (LUTs):53,200
 Flip-flops:106,400
 18x25MACCs：220;
 BlockRAM：4.9Mb
 Two AD converters for on-chip voltage, temperature sensing and up
to 17 external differential input channels, 1MBPS
XC7Z020-2CLG484I chip speed grade is -2, industrial grade, package is
BGA484, pin pitch is 0.024 inch, the specific chip model definition of ZYNQ7000
series is shown in Figure 2-2-4

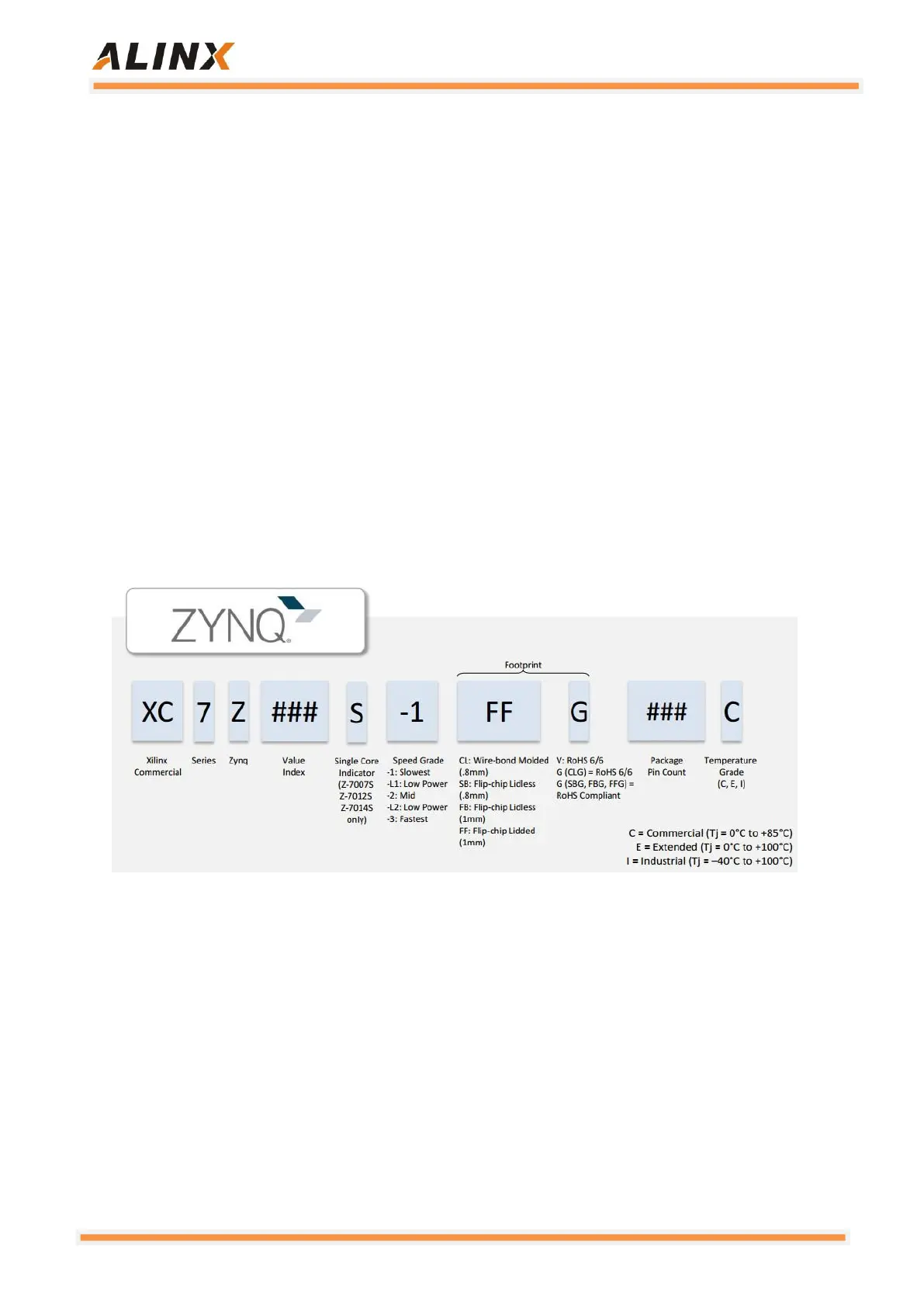

Figure 2-2-4: The Specific Chip Model Definition of ZYNQ7000 Series
