ARTIX-7 FPGA Development Board AX7035 User Manual
18 / 42

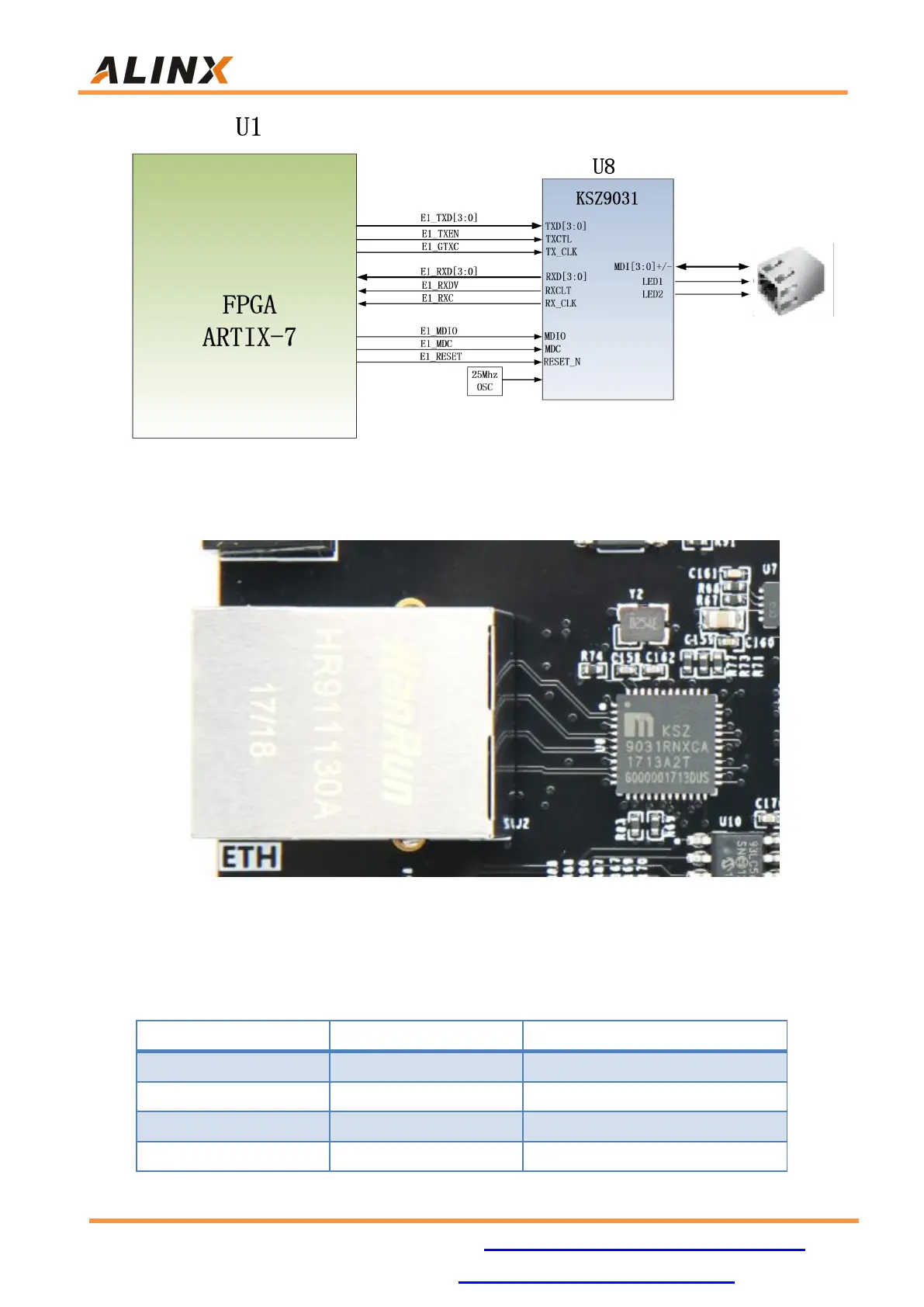

Figure 8-1: Gigabit Ethernet Interface Schematic
Figure 8-2: Gigabit Ethernet interface on the board
Ethernet chip pin assignments are as follows：
Signal Name
FPGA Pin
Description
E1_GTXC
L14
RGMII transmit clock
E1_TXD0
J21
Transmit Data bit0
E1_TXD1
M20
Transmit Data bit1
E1_TXD2
L18
Transmit Data bit2
